| CATEGORY | SPECIFICATIONS |
|---|---|

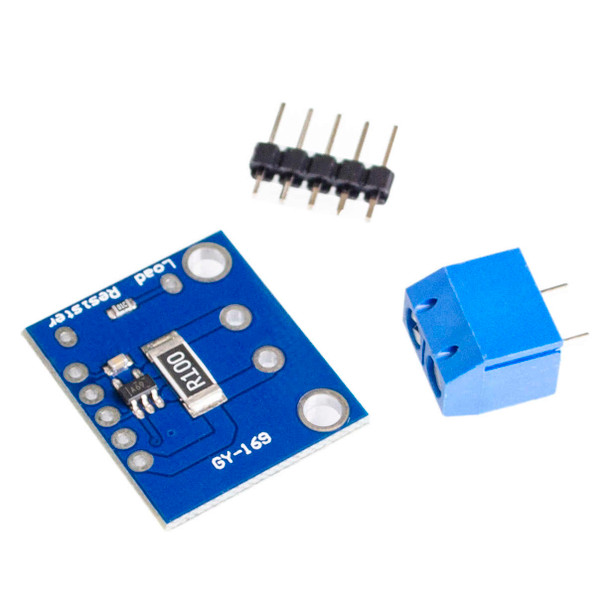

| Product Name | INA169 High-Side DC Current Sensor Module |
| Chipset | INA169 |
| Measurement Type | High-side DC current sensing |
| Input Voltage Range | 2.7V – 60V |
| Current Measurement Range | Up to 5A (continuous) |
| Sense Resistor | 0.1Ω, 1% tolerance, 2W |
| Output Type | Analog voltage output |
| Output Scaling | Default: 1V per 1A (adjustable via load resistor) |
| Adjustable Output | Yes (by changing onboard resistor: e.g., 20K = 2V/A, 5K = 0.5V/A) |
| Interface | Analog output (easy MCU/ADC integration) |
| Measurement Method | Precision amplifier measuring shunt voltage |
| Mounting / Connection | 5-pin header + 3.5mm terminal block |
| Special Features | High-side sensing (no ground shift issues), feedback-loop friendly |
| Applications | Power monitoring, battery systems, embedded control, current feedback systems |
Package Includes:
1 x Analog Current Sensor Module
1 x Pin
1 x Pin
