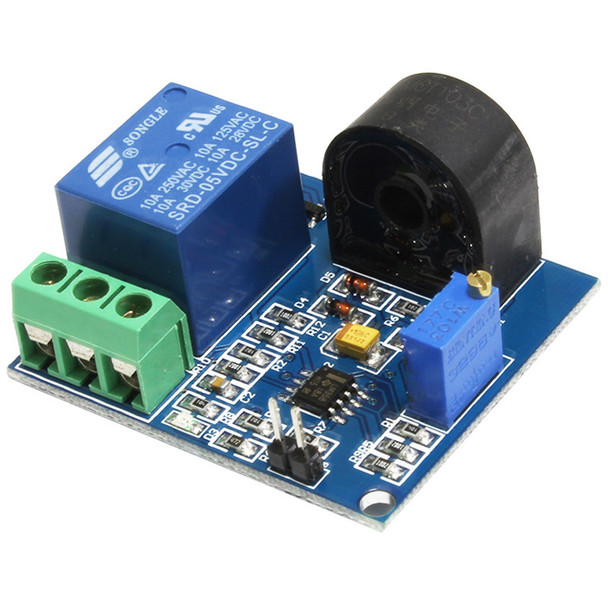

Name: 5A 12V AC over-current protection sensor module
Brand: Cytron
SKU: PEHSD55
Price: 5.01 USD
Availability: InStock

5A 12V AC over-current protection sensor module

(No reviews yet) Write a Review

SKU:

PEHSD55

Shipping:

Calculated at Checkout

Description
0 Reviews

Description

Features:

CATEGORY	SPECIFICATIONS
Product Name	LC 5A Over-Current Protection Sensor Module
Sensor Type	AC Current Transformer with Relay Output
Detection Range	AC 0.3A – 5A
Operating Voltage	DC 12V
Operating Current	<20mA
Operating Frequency Range	20Hz – 400Hz
Output Type	Digital switch signal (Relay: COM, NO, NC)
Over-Current Function	Relay activates on over-current, releases when normal
Threshold Adjustment	Adjustable over-current trigger point
Detection Resolution	Adjustable via resistance parameters
Max Wire Diameter	5.2mm
Mounting	3mm holes, 52.5mm spacing
Board Size	38mm × 44mm
Operating Temperature Range	-40°C – +85°C
Special Features	Built-in relay control, adjustable sensitivity, easy external circuit switching
Applications	Over-current protection, load monitoring, safety control systems

The Board Description:

VCC: Operating voltage positive;

GND :Operating voltage negative;

NO: Normally open, the relay pulls before the NO and COM disconnect, short-circuit after the suction;

COM: common, relay common interface;

NC: Normally closed, the relay before the NC and COM short-circuit, pull off after.

Using Instructions:

By setting the potentiometer to set the overcurrent protection point, the clockwise adjustment reduces the detection current.

As bellows:

1. Measured the wire through the current transformer , connect VCC and GND to DC12V power supply.

2. Adjust the potentiometer, when you hear the sound of the relay pull (can be measured with a multimeter COM and NO whether was turned on, if connected to the relay means activated), then reduce or cut off the current flowing that through the tested wire , if the relay release at this time that over-current protection point has been identified (available to multimeter COM and NC measurement whether is connected, if connected to the relay means been released).

3. When reduce or cut off the current flowing through the wire , the relay is not released, will still need to continue to adjust the potentiometer to find the over-current protection point.

Package Includes:

1 x 5A 12V Relay Module
