Description
Product Description

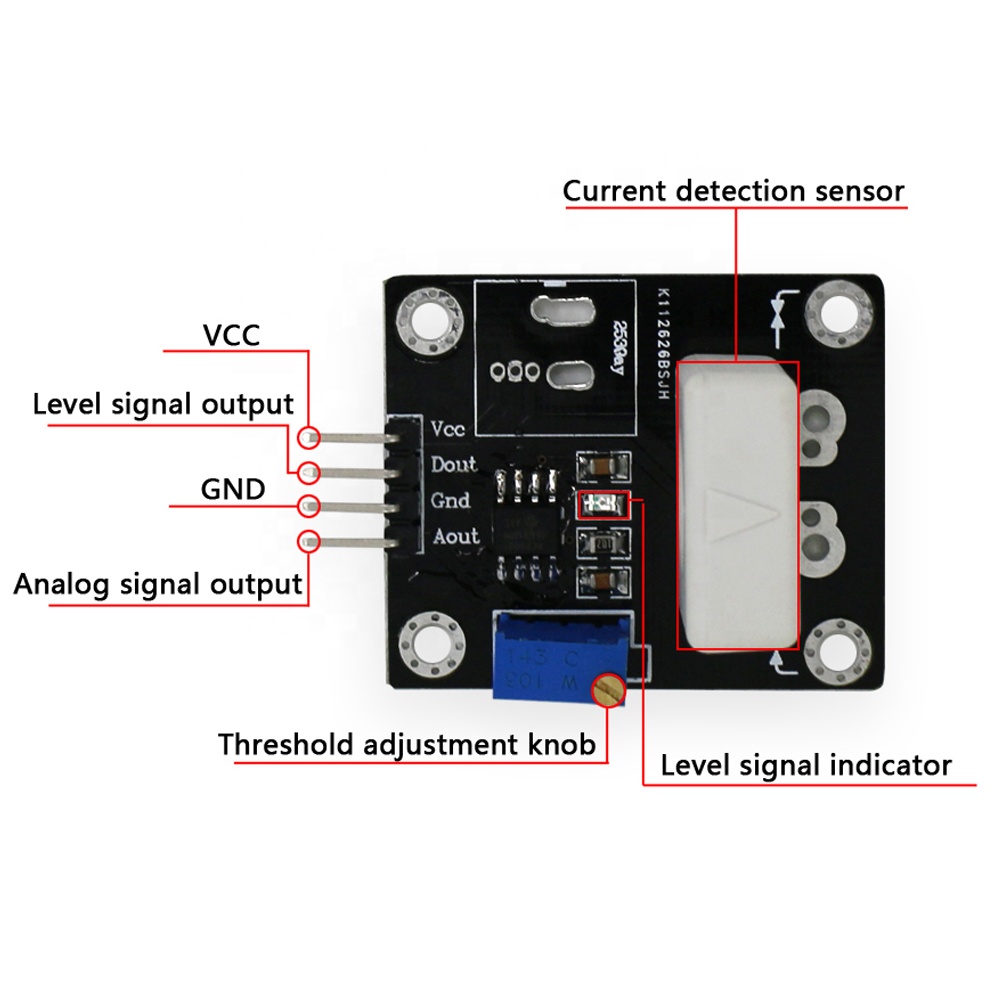

1. with signal output indication;
2. the current detection range wide DC ± 200A;
3. the current detection resolution of 11mV / A;
4. the output over-current signal instructions;
5. over-current signal set the critical point adjustable, detection current 9A (MIN);

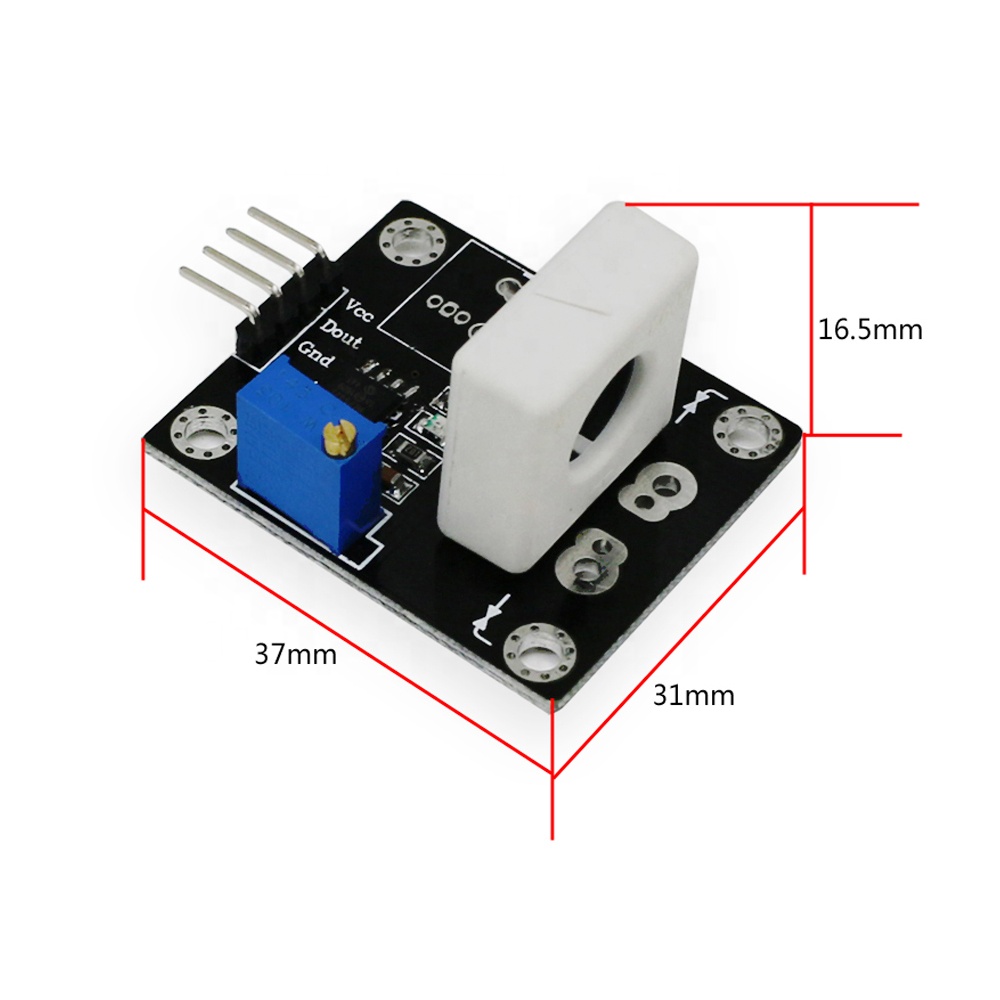

6. with mounting holes, easy to install the firmware;
7. the sampling current conversion analog signal output, can be ADC, TTL level signal output, can be connected to the microcontroller IO port control.
8, the output signal is: analog signal and level signal.
2. the current detection range wide DC ± 200A;
3. the current detection resolution of 11mV / A;
4. the output over-current signal instructions;
5. over-current signal set the critical point adjustable, detection current 9A (MIN);
6. with mounting holes, easy to install the firmware;
7. the sampling current conversion analog signal output, can be ADC, TTL level signal output, can be connected to the microcontroller IO port control.
8, the output signal is: analog signal and level signal.
Application:
intelligent car motor overcurrent detection, stall protection current detection, short circuit protection testing, demonstration teaching experiments and other occasions to facilitate the secondary development;
