Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Noise Performance | Industry-leading through proprietary amplifier and filter design techniques |
| Shielding | Integrated shield reduces capacitive coupling from current conductor to die; prevents offset drift in high-side, high-voltage applications |
| Accuracy Improvement | Total output error improved through gain and offset trim over temperature |
| Package | Small size with easy mounting capability |
| IC Type | Monolithic Hall IC for high reliability |
| Power Loss | Ultra-low: 100 μΩ internal conductor resistance |
| Galvanic Isolation | Allows economical high-side current sensing in high-voltage systems |
| Supply Voltage | 3.0 to 5.5 V, single supply operation |
| Bandwidth | 120 kHz typical |
| Response Time | 3 μs output rise time in response to step input current |
| Output Type | Voltage proportional to AC or DC currents |
| Factory Calibration | Factory-trimmed for accuracy |
| Output Offset Stability | Extremely stable output offset voltage |
| Magnetic Hysteresis | Nearly zero |
Package Includes:

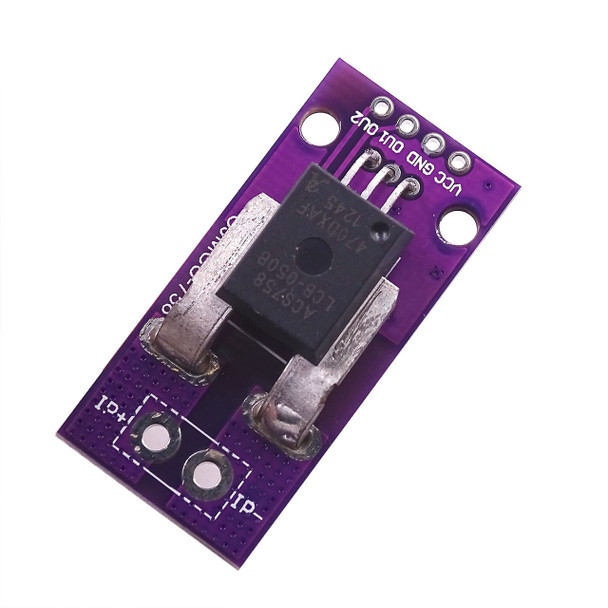

1 x ACS758LCB-050B-PFF-T Hall Current Sensor Current Module
