Description
Features:
| CATEGORY | SPECIFICATION |
|---|---|
| Size (Module) | 89.92 × 54.25 mm |
| Display Size | 67.68 × 45.12 mm |
| Screen Size | 3.2 inch |
| Backlight Type | Highlighting White, 6 LEDs |
| Screen Resolution | 320 × 240 pixels |
| Power Consumption | 80–110 mA |
| Screen Type | TFT (IPS full viewing angle) |
| Power Supply | 5V / 3.3V |
| Touch Function | None |
| Driver IC | ILI9481 |
| Data Bus | 16-channel Parallel |
| Module Interface | 34-pin (compatible with Arduino Mega2560) |
Package Includes:

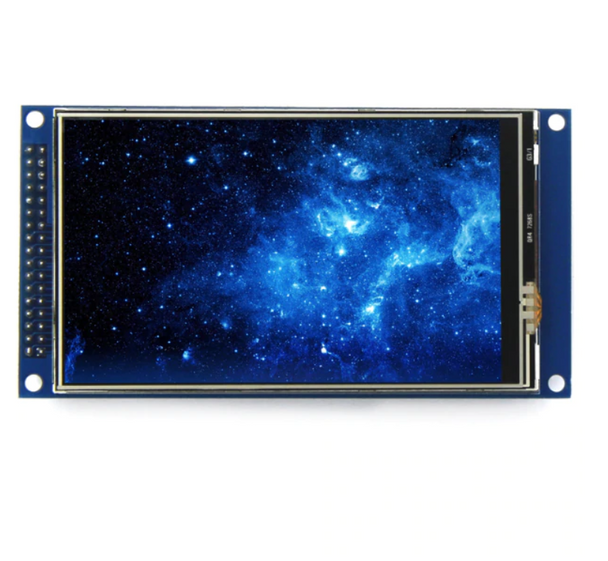

1 x 3.2 inch TFT LCD screen
