Description
Features:
Package Includes:

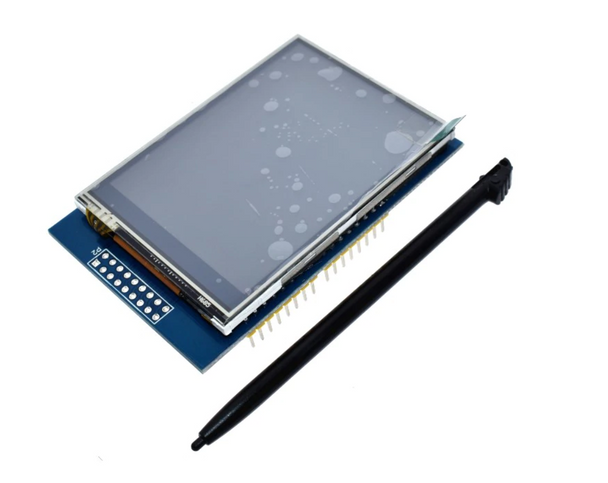

1 x 2.8 Inch TFT LCD Shield Touch Display Module
| CATEGORY | SPECIFICATIONS |
|---|---|
| Display Type | TFT LCD Display |
| Screen Size | 2.8 inch |
| Resolution | 240 × 320 pixels |
| Touch Type | 4-wire Resistive Touchscreen |
| Color Depth | 18-bit (262,000 colors) |
| Backlight | Bright 4 white-LED backlight |
| Power Regulator | On-board 3.3V 300mA LDO regulator |
| Logic Compatibility | 3.3V and 5V logic compatible |
| SD Card Support | Supports up to 2GB micro SD (TF) card |
| Installation | Plug-and-play; no wiring or soldering required |
| Module Size | 7.8 cm × 5.3 cm |
Package Includes:
1 x 2.8 Inch TFT LCD Shield Touch Display Module
Related Products
Related Products
SOLD OUT
NX8048T070 - 7.0" LCD TFT HMI Intelligent Touch Display
diymore
KES14,000.00
Features:
CATEGORY
SPECIFICATIONS
SOLD OUT
NX8048T050 - 5.0" LCD TFT HMI Intelligent Touch Display
diymore
KES10,000.00
Features:
CATEGORY
SPECIFICATIONS
Product Name
<

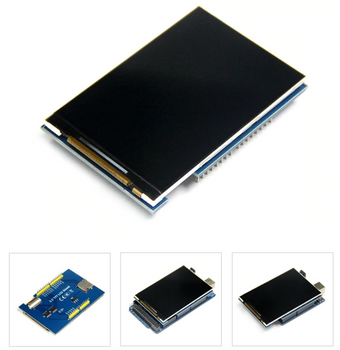

3.5 inch TFT Ultra HD Module (UNO / Mega256)
