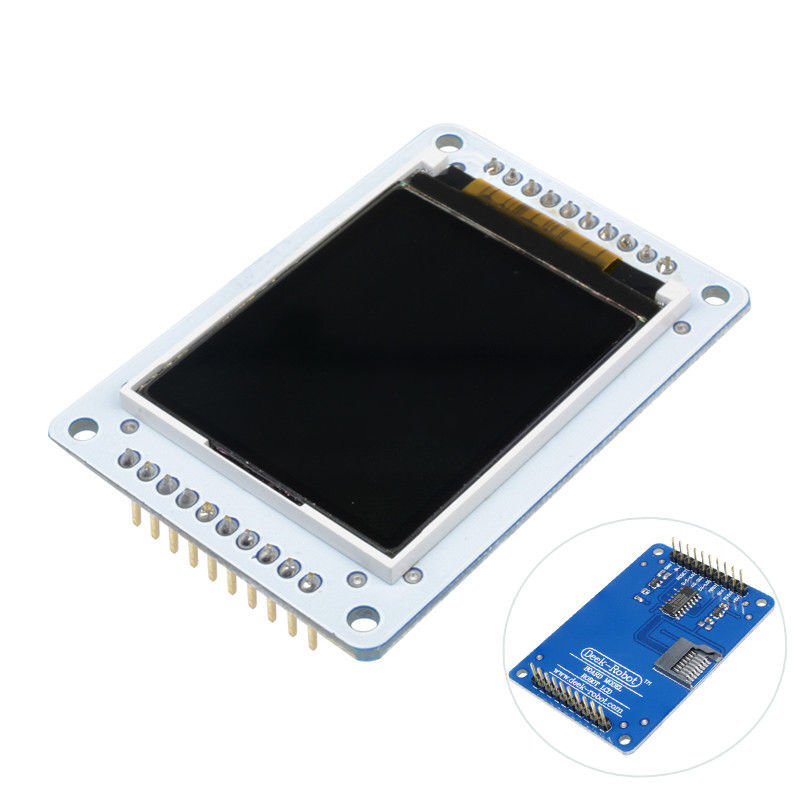

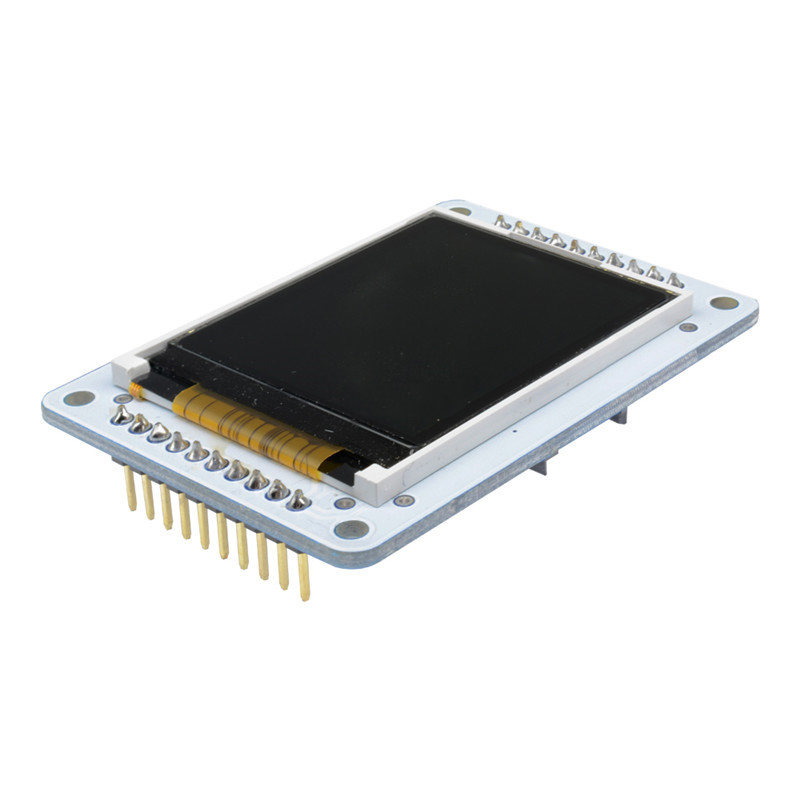

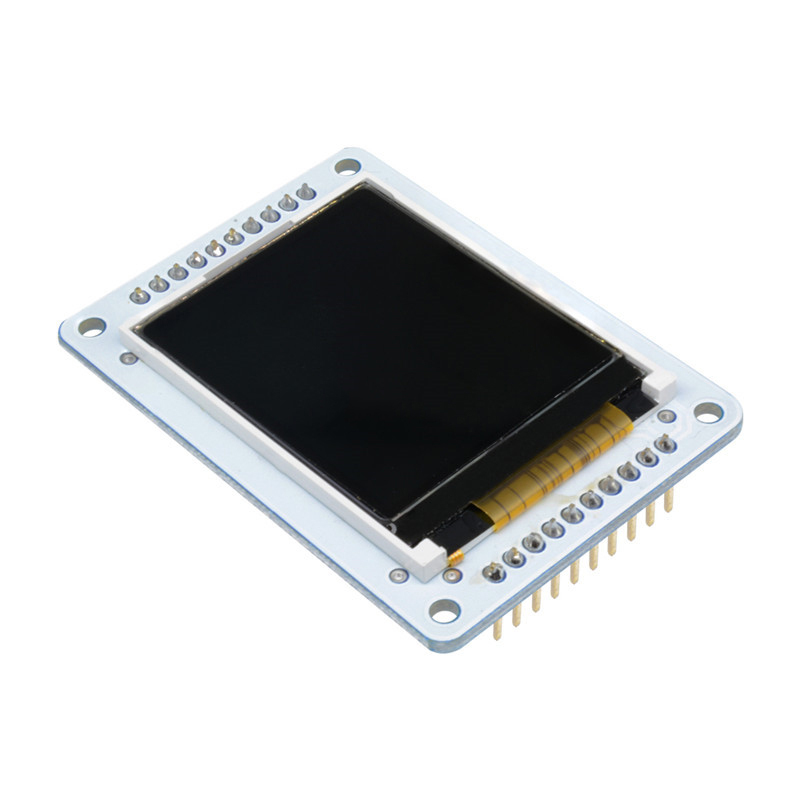

Esplora 1.8" 128 x 160 TFT LCD Screen

The Arduino TFT screen is a backlit LCD screen with headers. You can draw text, images, and shapes to the screen with the TFT library. There is an onboard micro-SD card slot on the back of the screen that can, among other things, store bitmap images for the screen to display.

The screen's headers are designed to fit into the socket on the front of the Arduino Esplora, but it is compatible with any AVR-based Arduino (Uno, Leonardo, etc) or with the Arduino Due. To connect the screen to other Arduino boards, read the tutorial on this link.

The Graphic LCD screen is a backlit TFT LCD screen with headers. You can draw text, images, and shapes to the screen with the GLCD library. There is an onboard micro-SD card slot on the back of the screen that can, among other things, store bitmap images for the screen to display.

The screen's headers are designed to fit into the socket on the front of Esplora, but it is compatible with any AVR-based (Uno, Leonardo), Datasheet You can use this module with Esplora.

Features:

CATEGORY	SPECIFICATION
Screen Size	1.77" diagonal
Resolution	160 × 128 pixels
Communication Interface	SPI (via TFT library)
Operating Voltage	5 VDC
Micro-SD Slot	Accessible via SD library
LED Backlight	Dimmable by PWM



Package Includes :

1 x 1.8" inch 128x160 TFT LCD Shield Module SPI serial interface For Arduino Esplora
