CFP-102 Advanced Pneumatics Trainer (Double Sided)

(No reviews yet) Write a Review
SKU:
CFP-102
Shipping:
Calculated at Checkout
  • CFP-102 Advanced Pneumatics Trainer (Double Sided)
  • CFP-102 Advanced Pneumatics Trainer (Double Sided)
KES550,000.00
Frequently bought together:

Description



Product Description

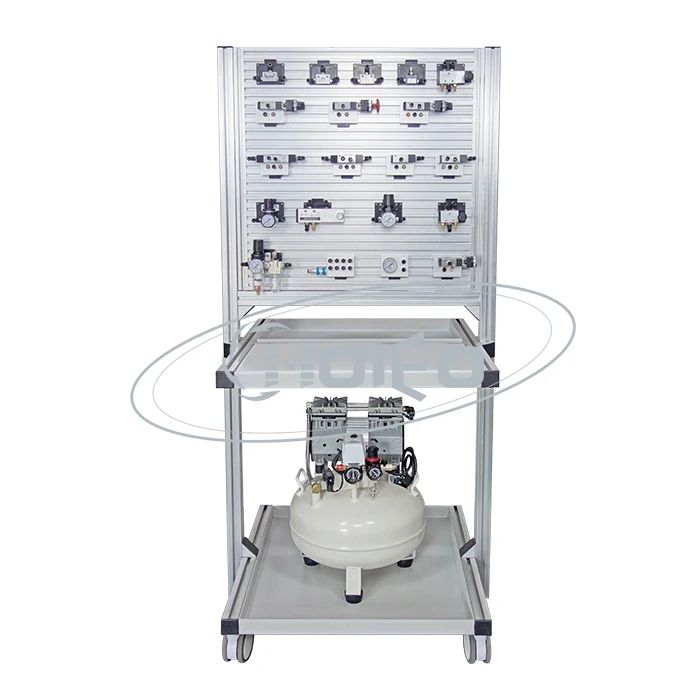

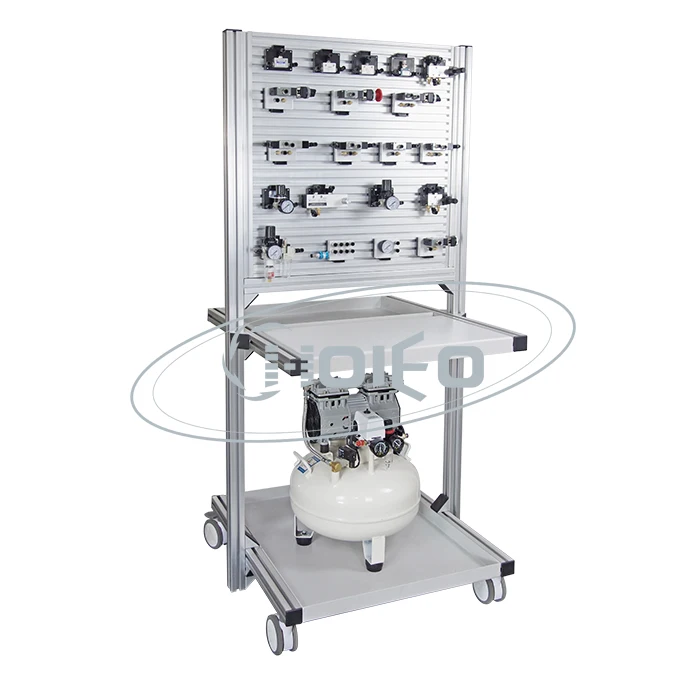

• This is a flexible pneumatics teaching system, with aluminium profiles and powder coated sheet steel as the frame material, universal and silent castors are adopted to achieve movable ability.
• Quick mounting system is adopted to realize all components to be mounted easily and securely on the grooved profile plate in any direction without tools. The connection between pneumatic tube and pneumatic components is achieved by fast connecting couplings.
• The platform is suitable for both CHOIEO hydraulics and pneumatics training system with same mounting features, double sided structure making it available for operation of two groups at one time.
• A variety of pneumatic parts are available for experiment extension, help achieve skills of different levels from elementary to advanced pneumatic engineering.

TRAINING CONTENT

• Physical principles of pneumatic control system
• Structure and characteristics of pneumatic cylinders
• Function and use of pneumatic control valves
• Recognizing and drawing of pneumatic symbols
• Reversing circuit of push button valve controlled single acting cylinder
• Speed control circuit of single acting cylinder
• Manual controlled reversing circuit of hand directional valve
• Pneumatic controlled reversing circuit of hand directional valve
• Speed control circuit of double acting cylinder
• Speed control circuit of flow control valve
• Sequential circuit of two cylinders
• Reversing circuit of OR gate valve controlled single acting cylinder
• Remote controlled unloading circuit
• Push button valve controlled double acting cylinder circuit
• Reducing valve controlled pressure-relief circuit
• Two hands controlled single acting cylinder reversing circuit
• Direct and indirect actuation
• Logic operations: AND/OR/NOT
• Oscillating movement circuit
• Interlocking circuit
• Quick exhaust valve application circuit
• Time delay circuit
• Pressure sequence valve application circuit
• Overload protection circuit
• Latching circuit
