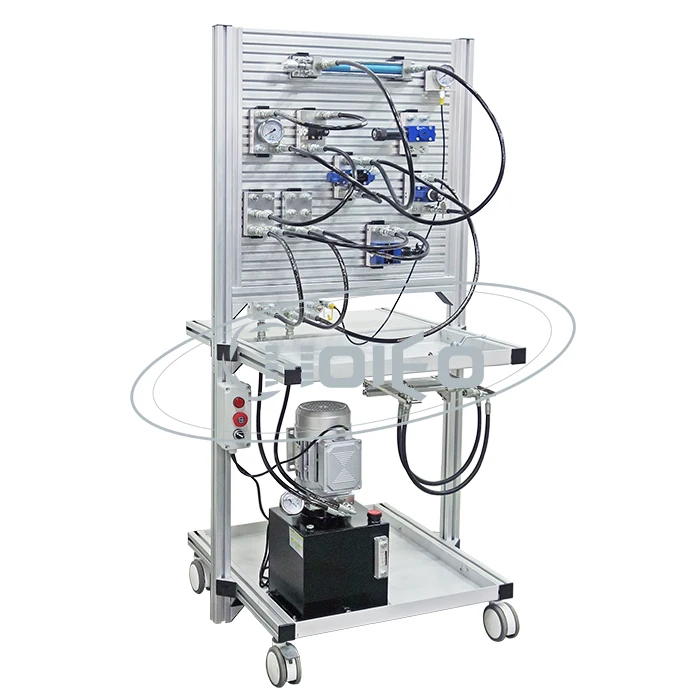

CFH-102 Basic Hydraulics Trainer

Description

• This is a flexible hydraulics teaching system, with aluminium profiles and powder coated sheet steel as the frame material, universal and silent castors are adopted to achieve movable ability.
• Quick mounting system is adopted to realize all components to be mounted easily and securely on the grooved profile plate in any direction without tools. The connection between hydraulic tube and hydraulic components is achieved by fast connecting and self-sealing couplings without leakage, thanks to its lockable and spring design, the insertion of hydraulic tubes can be realized simply by pushing the female coupling only and the extraction can be achieved easily by pulling the spring ring with one hand.
• The platform is suitable for both CHOIEO hydraulics and pneumatics training system with same mounting features, double sided structure making it available for operation of two groups at one time.
• A variety of hydraulic parts are available for experiment extension, help achieve skills of different levels from elementary to advanced hydraulic engineering.

TRAINING CONTENT

• Understanding of hydraulic system structure and characteristics
• Function and use of hydraulic control valves
• Recognizing and drawing of hydraulic symbols
• Single stage pressure regulating loop of overflow valve
• One level pressure-relief loop of reducing valve
• Oil in speed regulating loop of flow control valve
• Oil return speed regulating loop of flow control valve
• Side oil line throttle governing loop of one way throttle valve
• Reversing loop of hand directional valve
• Series speed regulating loop of flow control valve and throttle valve
• Parallel speed regulating loop of flow control valve and throttle valve
• Oil in and oil return speed regulating and throttling loop
