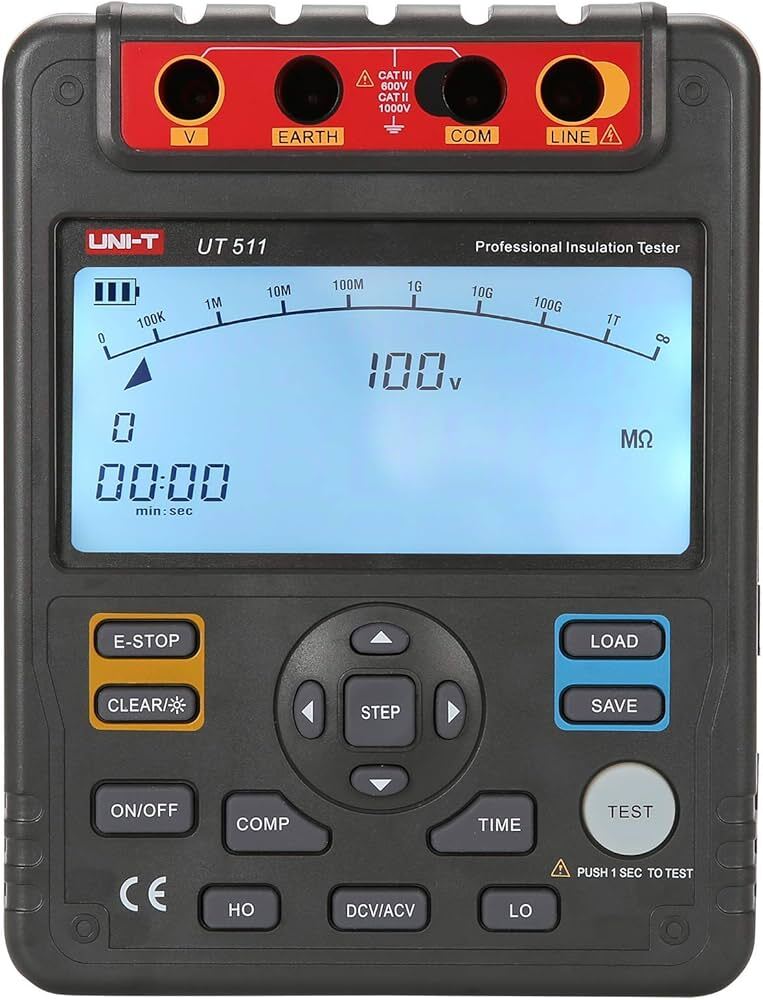

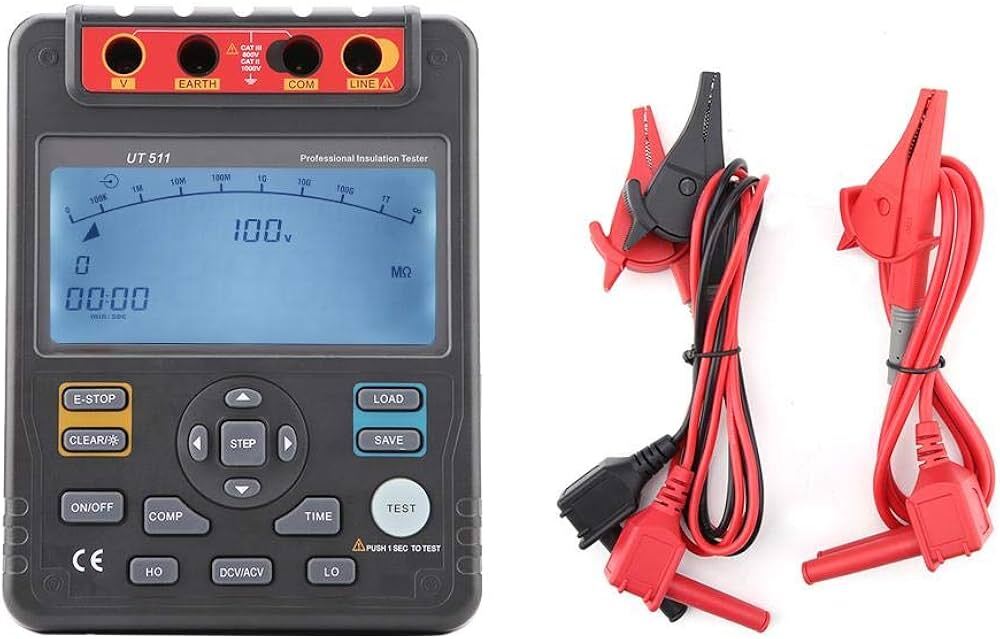

Name: UNI-T UT 511 Insulation Resistance Tester (100V - 1000V)
Brand: UNI-T
SKU: TPETOO53
Price: 483489.3 TZS
Availability: InStock

UNI-T UT 511 Insulation Resistance Tester (100V - 1000V)

(No reviews yet) Write a Review

SKU:

TPETOO53

Shipping:

Calculated at Checkout

Description
0 Reviews

Description

Features:

CATEGORY	SPECIFICATIONS
Product Name	Insulation Resistance Tester
Brand	UNI-T
Model Number	UT511
Device Type	Handheld Insulation Resistance Tester
Display	9999-count LCD + 30-segment analog bar graph
Test Voltage Range	Up to 1 kV DC
AC Voltage Measurement	Up to 750 V AC
Insulation Resistance Range	Up to ~10 GΩ
Accuracy	High precision microprocessor-controlled measurement
Measurement Functions	Insulation resistance, AC voltage, PI, DAR
Special Functions	PI (Polarization Index), DAR (Dielectric Absorption Ratio)
Data Storage	18 Groups
Measurement Modes	Continuous measurement, auto-ranging
Timer Function	~15–30 minutes auto measurement mode
Short-Circuit Current	< 2 mA
Safety Features	High-voltage alarm, auto discharge function
Auto Power Off	Supported
Low Battery Indication	Supported
Display Features	Backlight, over-range indication, analog bar graph
Battery Type	8 × LR14 batteries
Safety Category	CAT III 600V / CAT II 1000V
Build	Rugged industrial handheld design
Operating System	Microprocessor-controlled
Product Size (Display)	123 × 58 mm display area
Features	Large display, bar graph visualization, safety alarms, data logging, comparison mode
Applications	Electrical installation, motor testing, transformers, generators, switchgear, cable testing
Operation Type	Portable handheld device
