Description

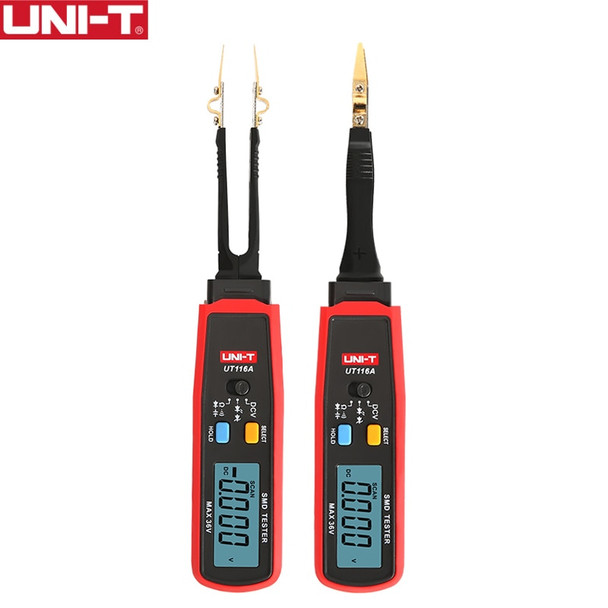

This product is a miniaturized, integrative, brand new instrument for measurements of SMD resistance, capacitance and diode (RCD) parameters. In addition, it can also be used for LED, zener diode, on/off circuit and maximum 36V DC voltage measurement. This tester is a great tool for electronic factories and electronic devices maintenance.
Features:
The UT116A has rich functionality including automatic identification of resistance, capacitance, diode and on or off circuit; zener diode polarity/LED test, and can also measure Max.36V DC voltage.
With practical features, such as auto-range, data hold, low battery indicator, LCD display with 3000 counts,and auto-power off.
Compact and portable, the pen can be rotated by 180°for easy reading and operation.
Constructed with durable ABS housing and gold-plated tip to prevent rust.
Ideal tool for electronic engineers, repairman or professionals who engaged in SMD testing.
Features:
The UT116A has rich functionality including automatic identification of resistance, capacitance, diode and on or off circuit; zener diode polarity/LED test, and can also measure Max.36V DC voltage.
With practical features, such as auto-range, data hold, low battery indicator, LCD display with 3000 counts,and auto-power off.
Compact and portable, the pen can be rotated by 180°for easy reading and operation.
Constructed with durable ABS housing and gold-plated tip to prevent rust.
Ideal tool for electronic engineers, repairman or professionals who engaged in SMD testing.
Specifications:
Specifications | ||
Model | UT116A | UT116C |
Display count | 3000 | 6000 |
Resistance | 30MΩ | 60MΩ |
Capacitance | 30mF | 100mF |
Diode test | 3V | 3.2V |
LED/stabilivolt | About 21V/1mA | About 21V/1mA |
Continuity Test | <30Ω | <50Ω |
DCV | 36V | |
Battery test | Load current ≈ 10mA | |
Auto range | √ | √ |
Auto scan identification | √ | |
Auto power off | √ | √ |
General Characteristics | ||
Power | 1.5V battery (R03) x 2 (Battery Not Include) | |
Display | 39mm x 20mm | |
Product color | Red and grey | |
Product net weight | About 80g | |
Product size | 204mm x 33mm x 25mm |
Packing List:
1 * SMD Tester
2 * Spare test clamps
1 * Pair of dedicated test leads
1 * User Manual (English)
