Description
UT121 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools.

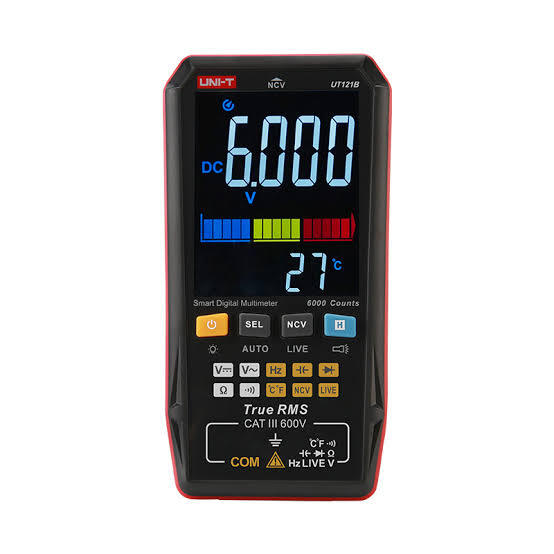

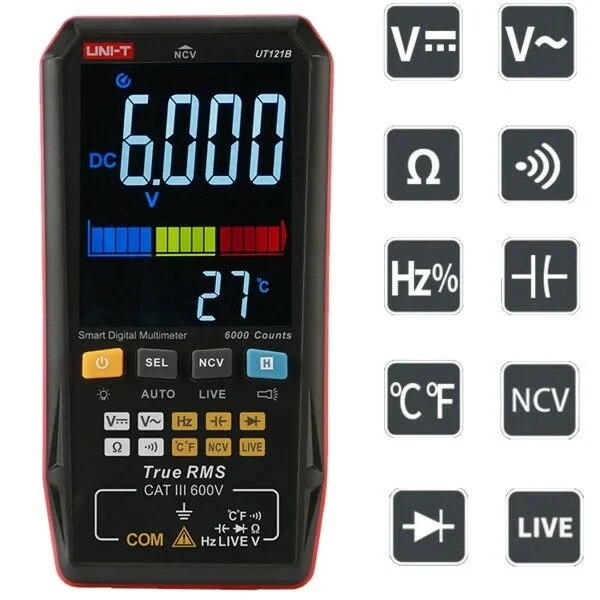

Discover precision with the UNI-T UT121B Smart Digital Multimeter, featuring True RMS measurement up to 750VAC and 1000VDC. With its dual display and auto range, effortlessly tackle AC voltage, resistance, capacitance, and temperature tasks, making it the perfect tool for both DIY enthusiasts and professionals. Experience reliability in every measurement with advanced features like NCV detection and a continuity buzzer, all in a sleek design.
Features
- True RMS
- AC 750V/DC 1000V voltage measurement
- 60MΩ large resistance measurement
- 60mF large capacitance measurement
- Full-scale input protection
- NCV/LIVE measurement
- Large size LCD screen
- 19mm ultra-thin body
- 6000counts
- Intelligent identification gear
| Specifications | Range | UT121B |
| AC voltage (V) | 6.000V/60.00V/600.0V | |
| 6.000V/60.00V/600.0V/750.0V | ±(1.5%+3) | |
| AC voltage frequency (Hz) | 10Hz-1kHz | ±(0.5%+2) |
| DC voltage (V) | 6.000V/60.00V/600.0V | |
| 6.000V/60.00V/600.0V/1000.0V | ±(1.2%+3) | |
| Resistance (Ω) | 6000Ω/60.00KΩ/600.0KΩ/6.000MΩ/ |
|
| 600.0Ω/6.000KΩ/60.00KΩ/600. |
±(2%+5) | |
| 600.0Ω/6.000KΩ/60.00KΩ/600. |
||
| Capacitance (F) | 60.00nF/600.0nF～600.0μF/ |
±(10%+5) |
| 99.99nF/999.9nF～9.999μF/9. |
||
| Frequency (Hz) | 10.00Hz-10.00MHz | ±(0.1%+3) |
| Temperature(℃/℉) | –40℃～1000℃/–40°F～1832°F | ±3℃/±6℉ |
| Features | ||
| Display count | 6099 | |
| Dual display | √ | |
| Auto range | √ | |
| NCV detection | √ | |
| LIVE detection | √ | |
| Diode test | √ | |
| Continuity buzzer | √ | |
| LCD high voltage alert | √ | |
| Flashlight | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Data hold | √ | |
| Category ratings | CATⅢ 600V | |
Package Includes

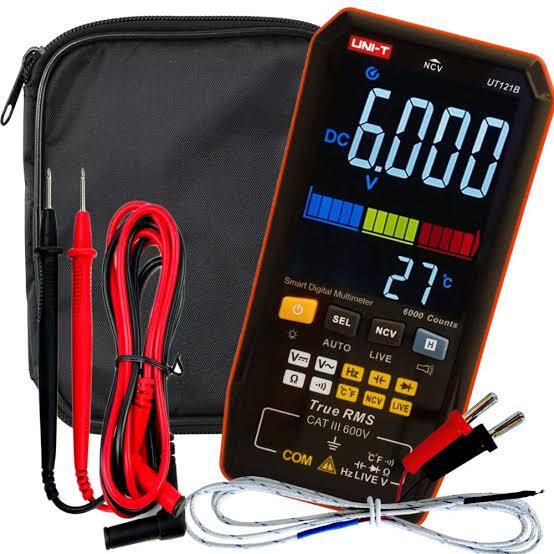

1pc x UNI-T UT121B Digital Multimeter
