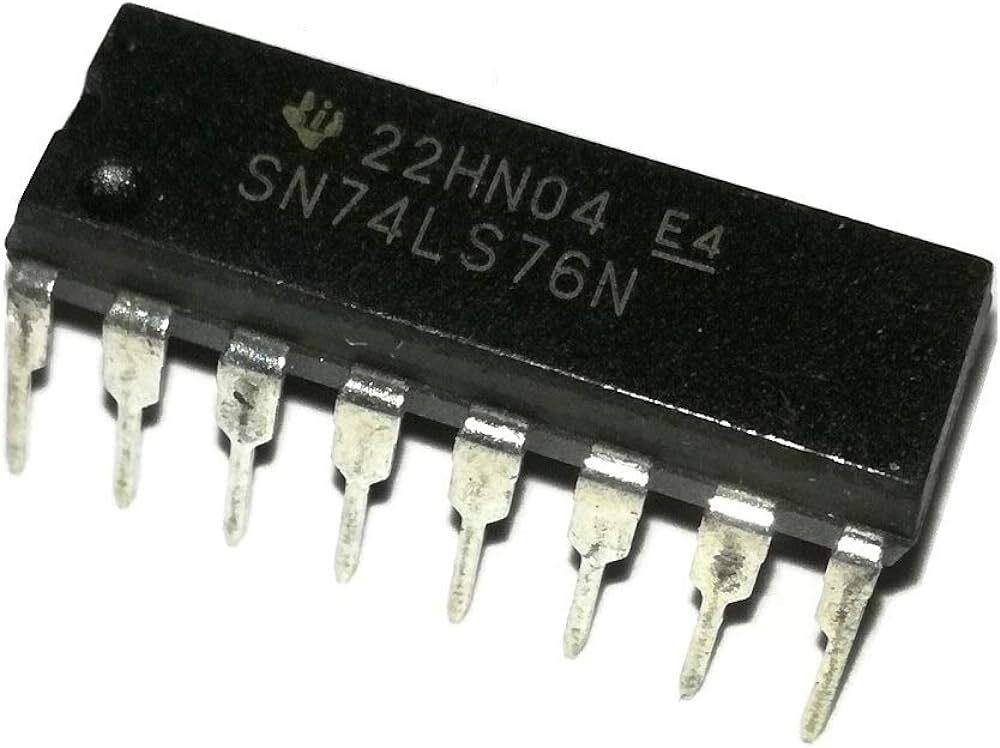

SN74LS76N, Double JK Flip-Flop IC

Description

The 74LS series of integrated circuits (ICs) was one of the most popular logic families of transistor-transistor logic (TTL) logic chips. 74LS series is a bipolar, low-power Schottky IC. The 74LS76 contains two independent J-K flip-flops with individual J-K, clock, preset, and clear inputs.
The 74LS76 is a positive-edge-triggered flip-flop. J-K input is loaded into the master while the clock is high and transferred to the slave on the high-to-low transition. For these devices, the J and K inputs must be stable while the clock is high.

Features

• Two Individual Flip-Flops with J,K Clock, Set and Clear Inputs
• Input Data is Transferred to the Outputs on HIGH-LOW Clock Transition
• Fast Switching Speed
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages

Specification:

Application

• Event Detectors
• Data Synchronizers
• Frequency Divider

Package Includes

1pc x SN74LS76N, Double JK Flip-Flop IC
