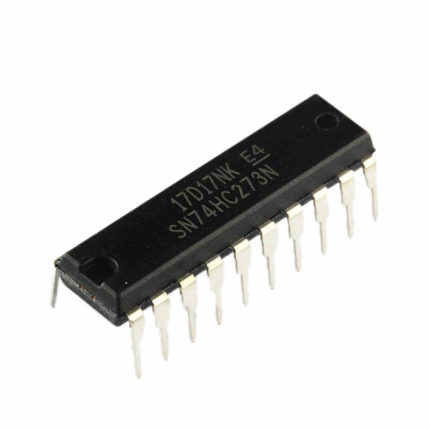

Name: SN74HC273N FLIP FLOP
Brand: Logic ICs
SKU: PEICU29
Price: 50 KES
Availability: InStock

SN74HC273N FLIP FLOP

(No reviews yet) Write a Review

SKU:

PEICU29

Shipping:

Calculated at Checkout

Description
0 Reviews

Description

Description

The SN74HC273N is a positive-edge-triggered octal D-type Flip-flop with a direct clear (CLR) input. Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not related directly to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input has no effect at the output. It is suitable for buffer/storage registers, shift registers and pattern generators.

Specifications

IC, 74HC CMOS, 74HC273, DIP20, 6V
Flip-Flop Type: D
Propagation Delay: 12ns
Supply Voltage Min: 2V
Supply Voltage Max: 6V
Logic Case Style: DIP
No. of Pins: 20
Frequency: 50MHz
Output Current: 5.2mA
Trigger Type: Positive Edge
IC Output Type: Non Inverted
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C
Packaging: Each
Base Number: 74
IC Generic Number: 74HC273
Logic Function Number: 273
Logic IC Base Number: 74273
Logic IC Family: HC
Logic IC Function: Octal D-Type Flip-Flop With Reset
Positive-Edge Trigger
MSL: -
No. of Gates: 8
No. of Inputs: 1
Operating Temperature Range: -40°C to +85°C
SVHC: No SVHC (16-Dec-2013)
Supply Voltage Range: 2V to 6V
Termination Type: Through Hole

Package Includes

1 pc x 74HC273
