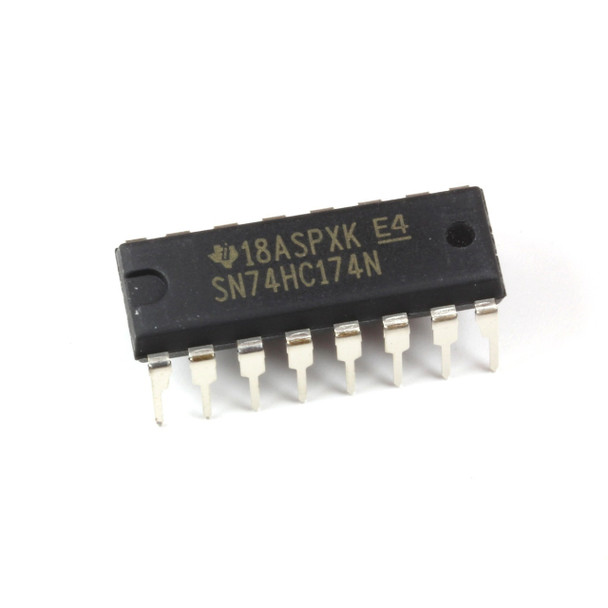

Description
Specification
| Attribute | Value |
|---|---|
| Logic Family | HC |
| Logic Function | D Type |
| Input Type | Single Ended |
| Output Signal Type | Single Ended |
| Triggering Type | Positive Edge |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Set/Reset | Master Reset |
| Number of Elements per Chip | 6 |
| Maximum Propagation Delay Time @ Maximum CL | 160 ns @ 2 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Supply Voltage | 2 V |
| Width | 6.35mm |
| Maximum Operating Supply Voltage | 6 V |
| Length | 19.3mm |
| Maximum Operating Temperature | +85 °C |
| Height | 4.57mm |
| Minimum Operating Temperature | -40 °C |
Technical data sheets
