Ai-Thinker

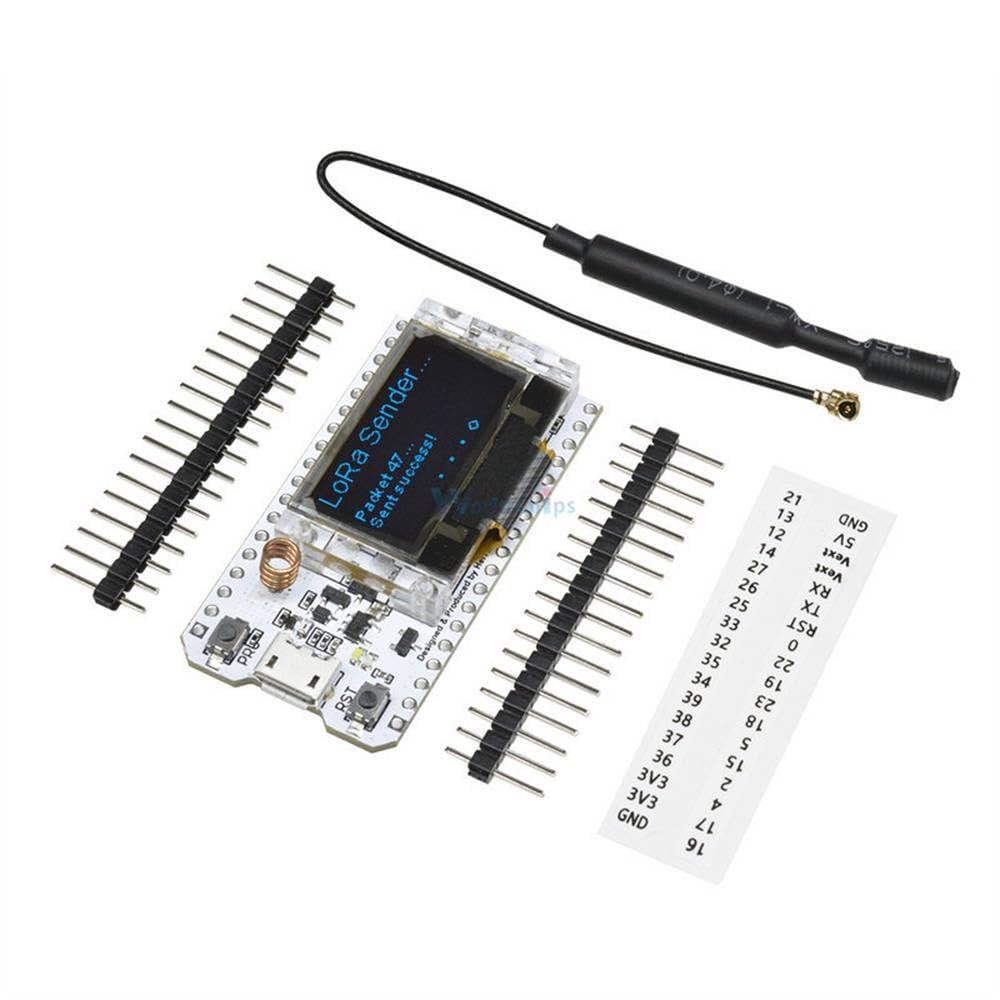

868MHz/915MHz LoRa ESP32 Oled WiFi SX1276 Module
(No reviews yet)
Write a Review
- SKU:
- PELRN99
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Name | WiFi LoRa 32 Development Board |
| Main Controller | ESP32 |
| Processor | Tensilica LX6 Dual Core |
| Clock Frequency | 240 MHz |
| Computing Capacity | Up to 600 DMIPS |
| Memory (SRAM) | 520 KB SRAM |
| Flash Memory | 8 MB Flash |
| Wireless Connectivity | Wi-Fi |
| Bluetooth | |
| BLE (Bluetooth Low Energy) | |
| Wi-Fi Standard | 802.11 b/g/n HT40 |
| Support Modes | Sniffer |
| Station | |
| SoftAP | |
| Wi-Fi Direct | |
| LoRa Chipset | SX1276 |
| Frequency Band | 868 MHz |
| 868 – 915 MHz | |
| RF Output Power | +20 dBm |
| Receiver Sensitivity | -139 dBm (SF12, 125KHz) |
| LoRa Sensitivity | Approximately -148 dBm |
| Communication Distance | Up to 2.8 km (Open Area) |
| Display | 0.96-inch Blue OLED Display |
| USB Adapter Chip | CP2102 USB to Serial |
| Battery Features | Lithium Battery Charging Circuit and Interface |
| Operating Voltage | 3.3V – 7V |
| Operating Temperature | -40°C to 90°C |
| UDP Throughput | 135 Mbps |
| Development Environment | Arduino Compatible |
| Additional Features | Built-in Wi-Fi Antenna |
| Integrated LoRa Remote Modem | |
| High Reliability Communication | |
| Dual-mode Bluetooth Support | |
| Applications | LoRa Development |
| IoT Applications | |
| Wireless Communication | |
| Long-range Data Transmission | |
| Rapid Prototyping | |
| Included Antenna Type | U.FL IPEX to SMA Connector Antenna |
| Antenna Connector Type | IPEX |
| Antenna Frequency Band | 868 MHz / 915 MHz |
| Standing Wave Ratio | ≤ 1.5 |
| Antenna Gain | 3 dBi |
| Maximum Antenna Power | 10 W |
| Input Impedance | 50 Ω |
Package Includes:
- 1 x 868MHz/915MHz LoRa ESP32 Oled Wifi SX1276 Module
- 1 x Antenna
