Ai-Thinker

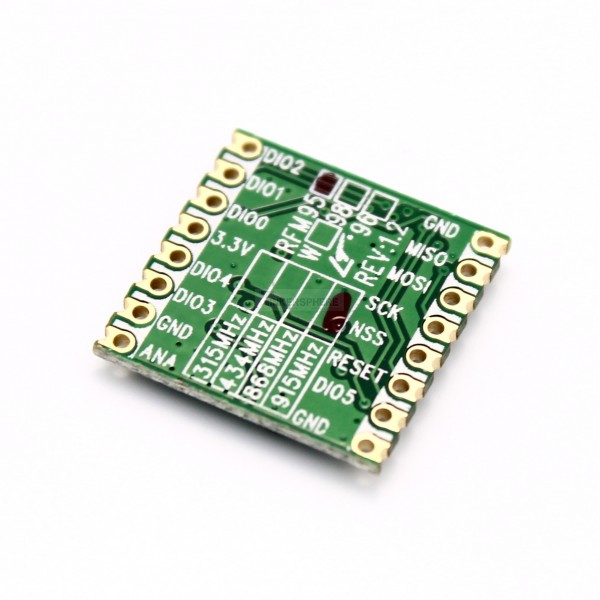

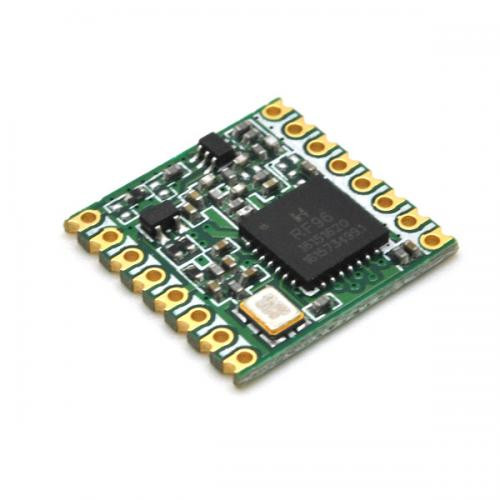

RFM95W LoRa Wireless Module 868Mhz

Name: RFM95W LoRa Wireless Module 868Mhz
Brand: Ai-Thinker
SKU: PEARF55
Price: 1000 KES
Availability: InStock
Rating: 5 (1 reviews)

(1 review) Write a Review

SKU:: PEARF55
UPC:
MPN:
Shipping:: Calculated at Checkout

KES1,000.00

Quantity:

Frequently bought together:

Description
1 Review

Description

Features:

CATEGORY	SPECIFICATIONS
Product Name	RFM95W Wireless LoRa Module
Core Chipset	Semtech SX1276
Technology	LoRa™ Long Range Modem
	FSK / GFSK / MSK / GMSK / OOK
Link Budget	Up to 168 dB
RF Output Power	+20 dBm (100 mW) constant RF output
	+14 dBm High Efficiency Power Amplifier
Bit Rate	Programmable up to 300 kbps
Receiver Sensitivity	Down to -148 dBm
RX Current Consumption	10.3 mA
	200 nA (register retention mode)
TX Current Consumption	Up to 120 mA at +20 dBm output
Synthesizer Resolution	61 Hz
RSSI Dynamic Range	127 dB
Modulation Types	LoRa™
	FSK
	GFSK
	MSK
	GMSK
	OOK
Packet Engine Size	Up to 256 bytes with CRC
Features	Built-in Bit Synchronizer
	Preamble Detection
	Automatic RF Sense and CAD
	Ultra-fast AFC
	Fully Integrated Synthesizer
	Built-in Temperature Sensor
	Low Battery Indicator
	Excellent Blocking Immunity
	High Interference Immunity
Operating Principle	Spread Spectrum Communication
Module Size	16.0 mm × 16.0 mm
Compliance	RoHS Compliant
Applications	Automated Meter Reading
	Home and Building Automation
	Wireless Alarm and Security Systems
	Industrial Monitoring and Control
	Long-range Irrigation Systems
	IoT Wireless Communication
