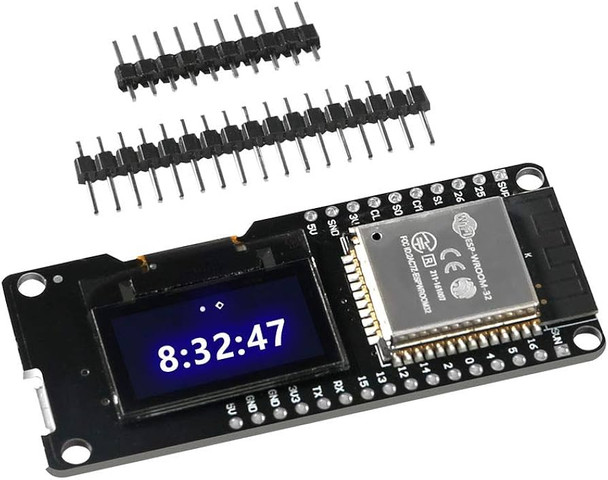

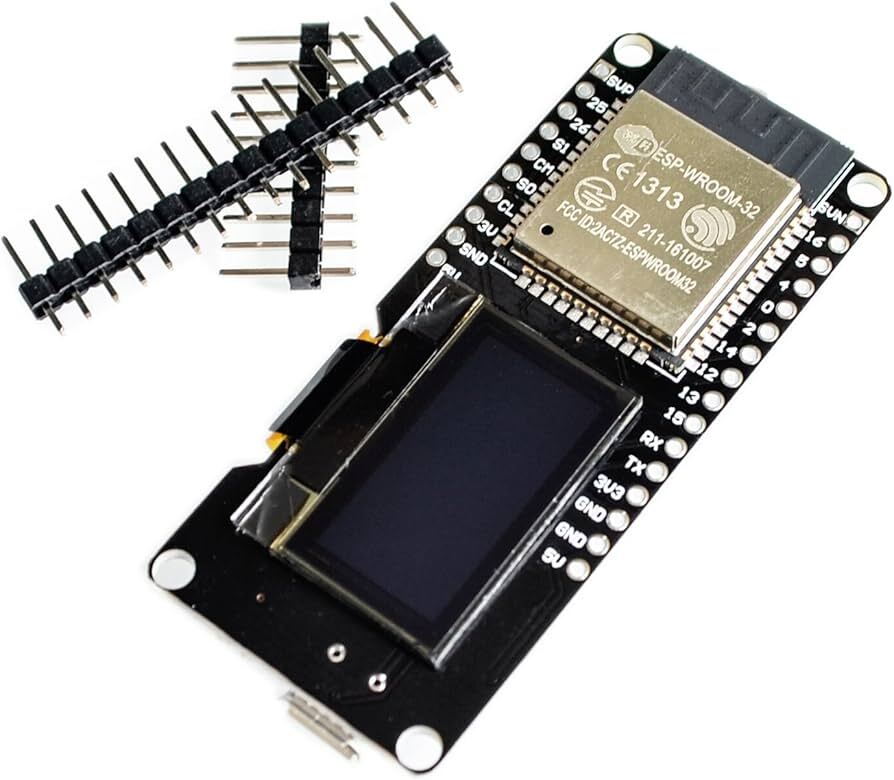

ESP32 oled module for WiFi and bluetooth

This development board is an ESP32 based board with Wi-Fi and Bluetooth and a white 0.96 inch OLED display. The CP2102 USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection by which it can be programmed and/or powered. This board has the ESP32 chip with 4MB flash memory.

Specifications:

• ESP32 chip with 512kB RAM (240MHz dual core processor)
• Up to 19x digital pins
• Up to 11x analog pins
• Two analog (DAC) outputs (pin 25 DAC1 and pin 26 DAC2)
• 1x SPI, 1x I2C, 1x UART (TX/RX)

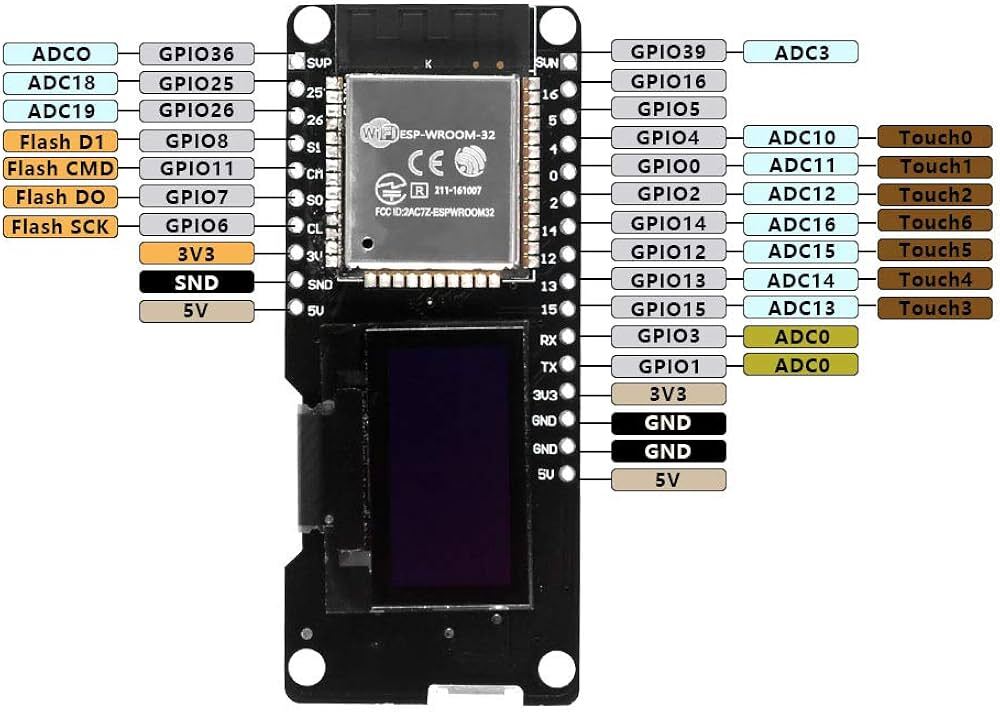

• Pinout: see images
• Onboard voltage regulator for input voltage of (5-12V Vin pin)
• Micro USB connector (micro USB kabel not included!)
• Loose headers included (not soldered)
• 0.96 inch white OLED screen (128x64 pixels) (SDA pin: 5, SCL pin: 4, I2C address: 0x3C)
• Dimensions: 64 x 27.5mm x 7mm (without headers)



Package Includes

1pc x ESP32 oled module for WiFi and bluetooth
