Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
1. The advanced 32-bit ARM Cortex M4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Microprocessor
1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
Sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6V ADC input
10. External MICRO USB Interface

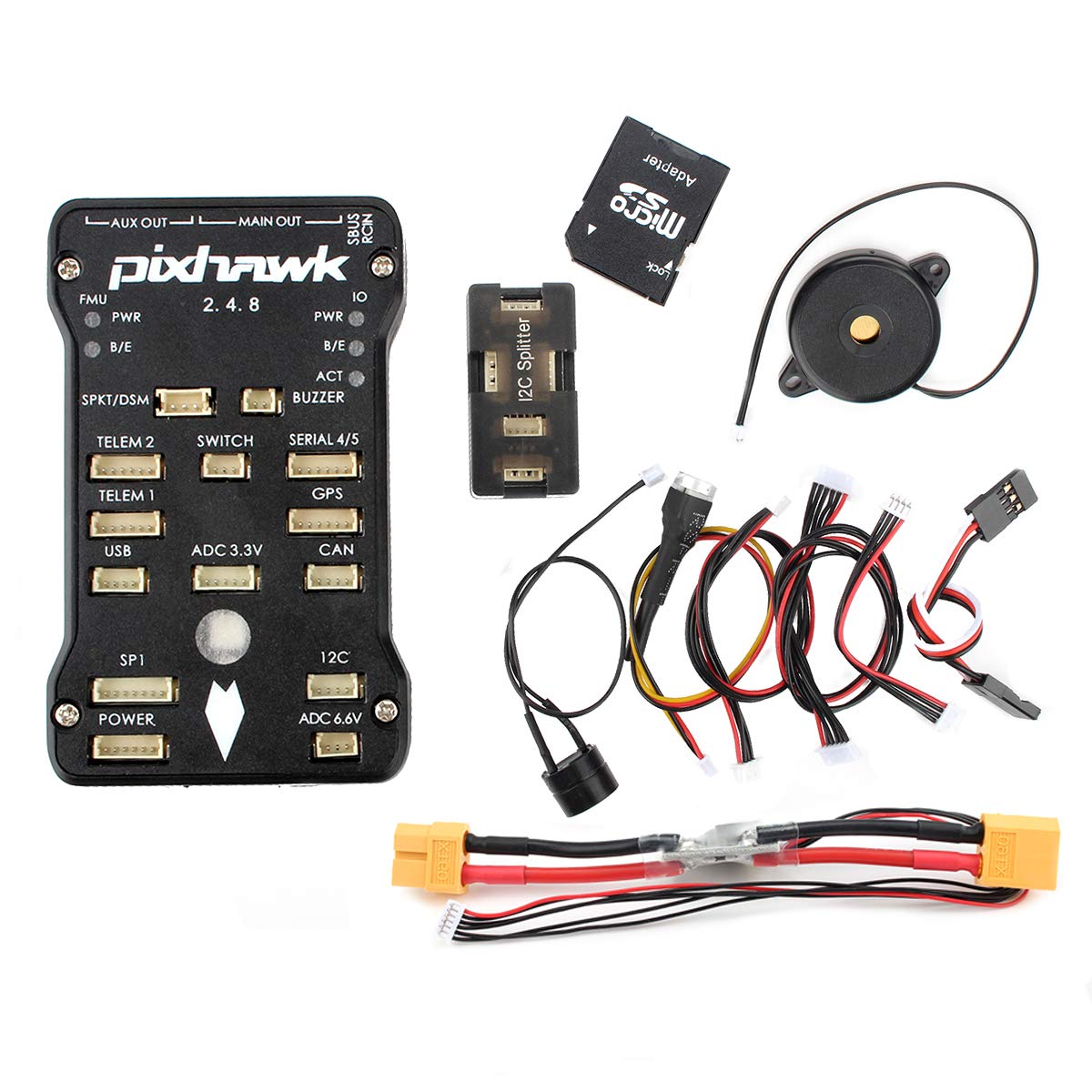

Packing Include:
- 1 x 2.4.8 Pixhawk main control
- 1 x Flight control shell
- 1 x Safety switch
- 1 x Buzzer
- 1 x 6pin to 6pin line
- 1 x 4Pin to 4Pin line
- 1 x 3pin DuPont line
- 1x I2C spilliter
- 1 x 1G SD Card
- 1 x Flight control shell
- 1 x Safety switch
- 1 x Buzzer
- 1 x 6pin to 6pin line
- 1 x 4Pin to 4Pin line
- 1 x 3pin DuPont line
- 1x I2C spilliter
- 1 x 1G SD Card

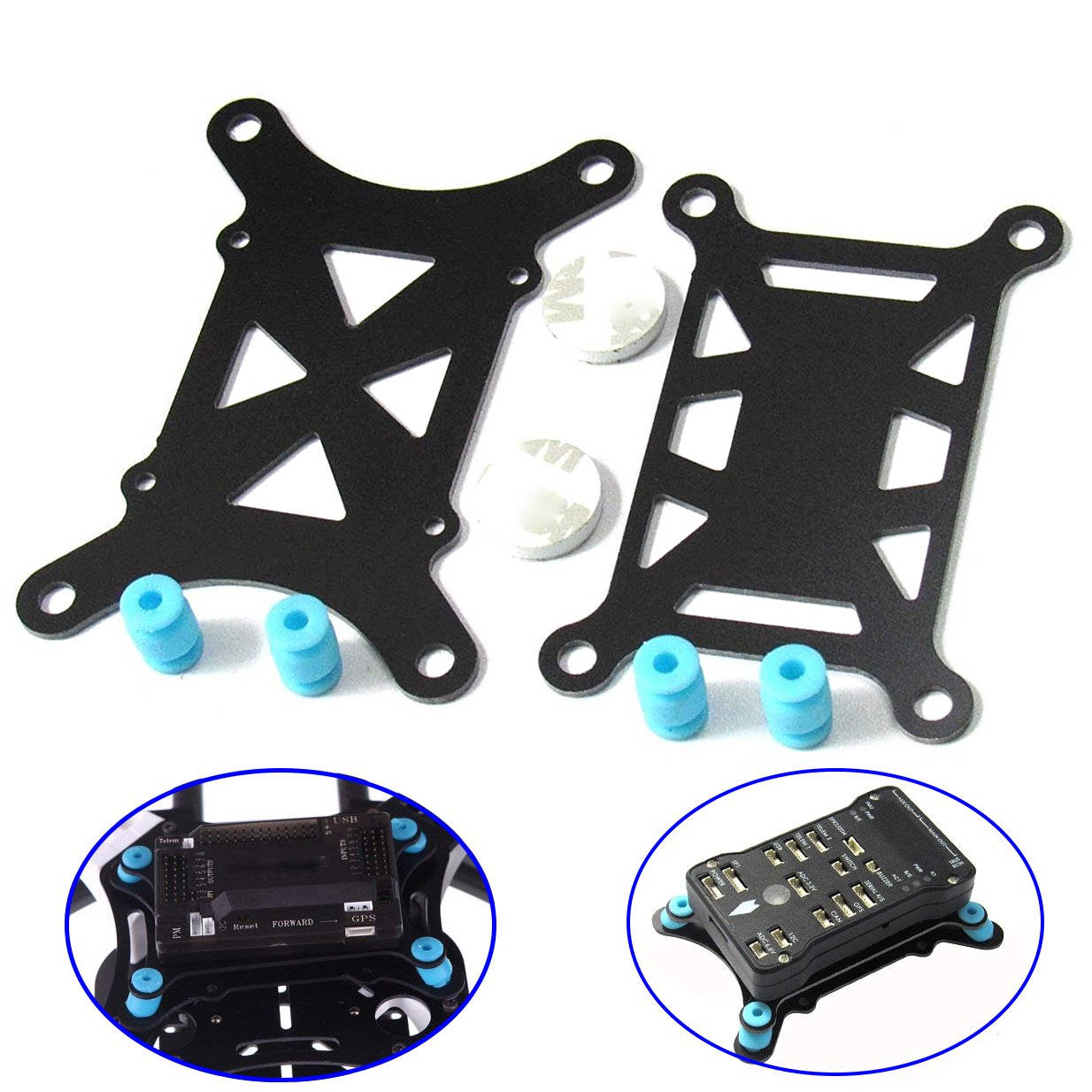

1 x Shock Absorber Board
