Readytosky

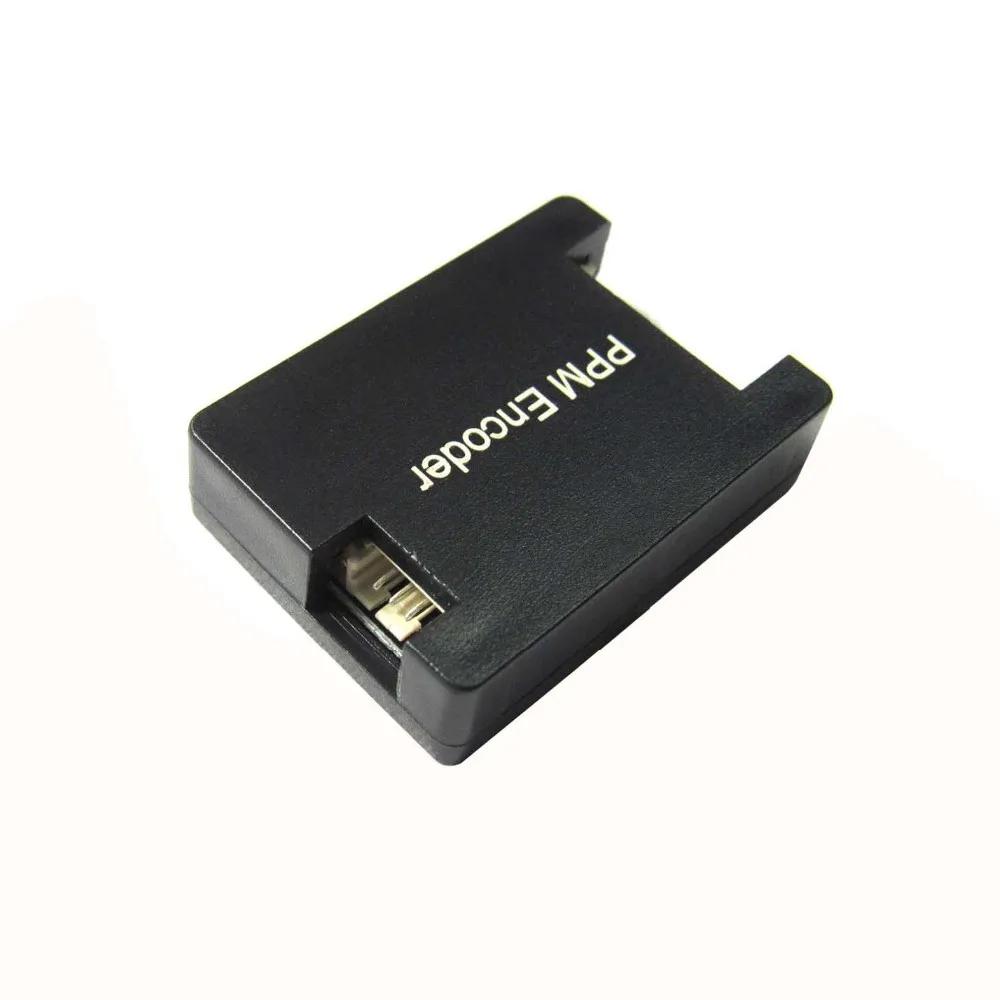

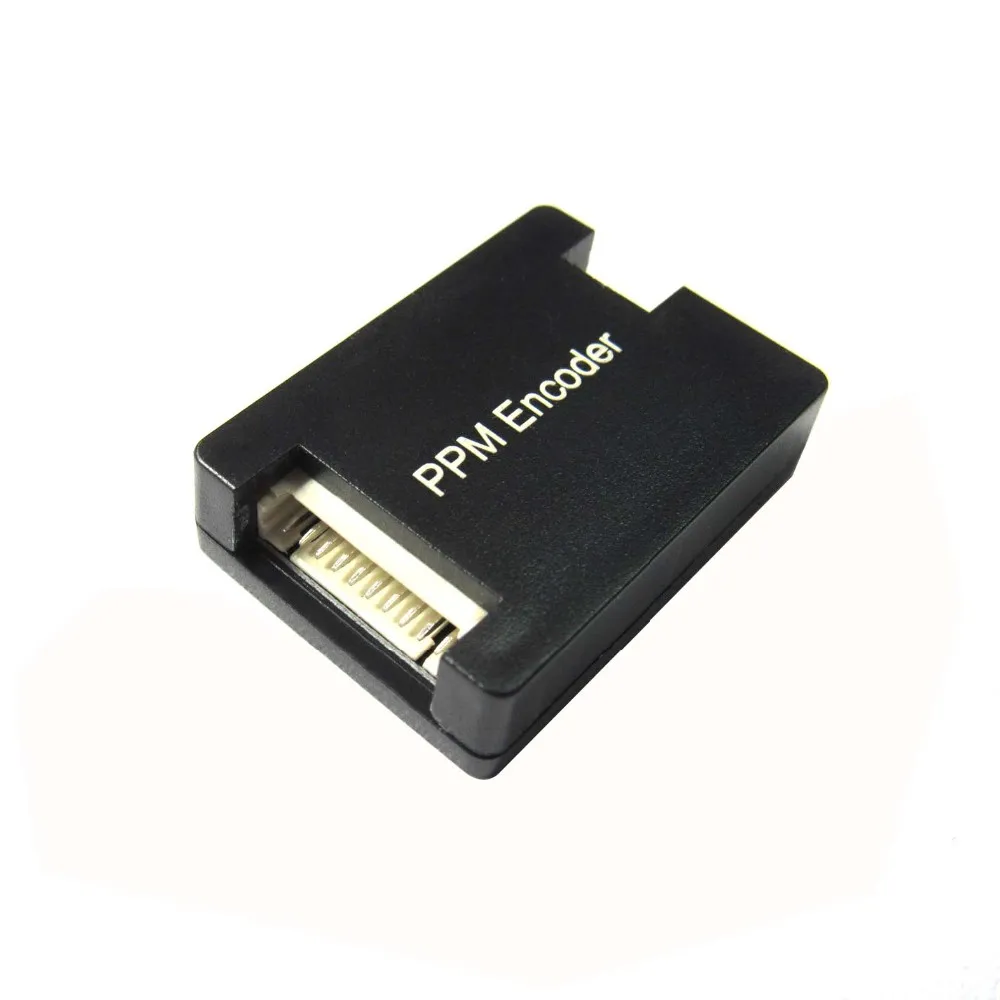

PPM Encoder for Pixhawk

(No reviews yet) Write a Review
SKU:
PERRR41
Shipping:
Calculated at Checkout
  • PPM Encoder for Pixhawk
  • PPM Encoder for Pixhawk
KES1,500.00

Description

PPM Encoder for Pixhawk PPM Encoder PPZ MK MWC MegaPirate APM Multiwii Flight Controller (the Flight Controller do not included)
The PPM Encoder plugs into the PWM servo output ports of any R/C  receiver and encodes them into a PPM pulse suitable for many autopilots  (e.g. Pixhawk). Modifications to the R/C receiver are not necessary.

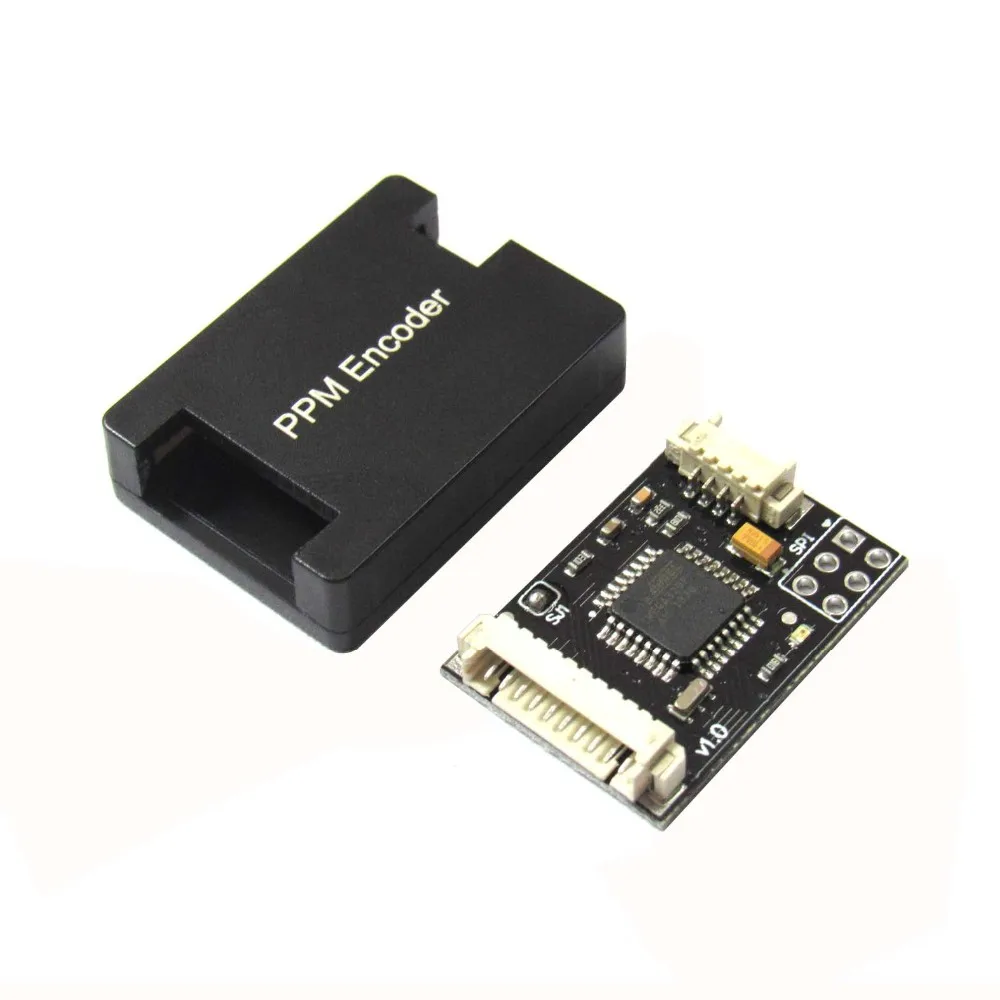

The whole project is based around the ATMEL  Atmel168 AVR processor and  all timing is done within interrupts so accuracy and stability is  optimized.
The whole project is based around the ATMEL ATMEGA328p AVR processor and all timing is done within interrupts so accuracy and stability are optimized.
The design of the PPM Encoder is based on the Paperazzi PPM Encoder.

Important Note: The firmware comes pre-configured to read 8 Channels. In  case you would like to change the settings of the PPM encoder to invert  the PPM signal and change the fail safe pre-defined values you will need  an AVR ISP programmer in order to reprogram it.

The jumper on the board no soldering default. In this case the board  powered by FC
imension(mm): 26 x 18 x 4
Weight(g): 8(include all wire)
Output : PPM SUM ×1 / MUX ×1

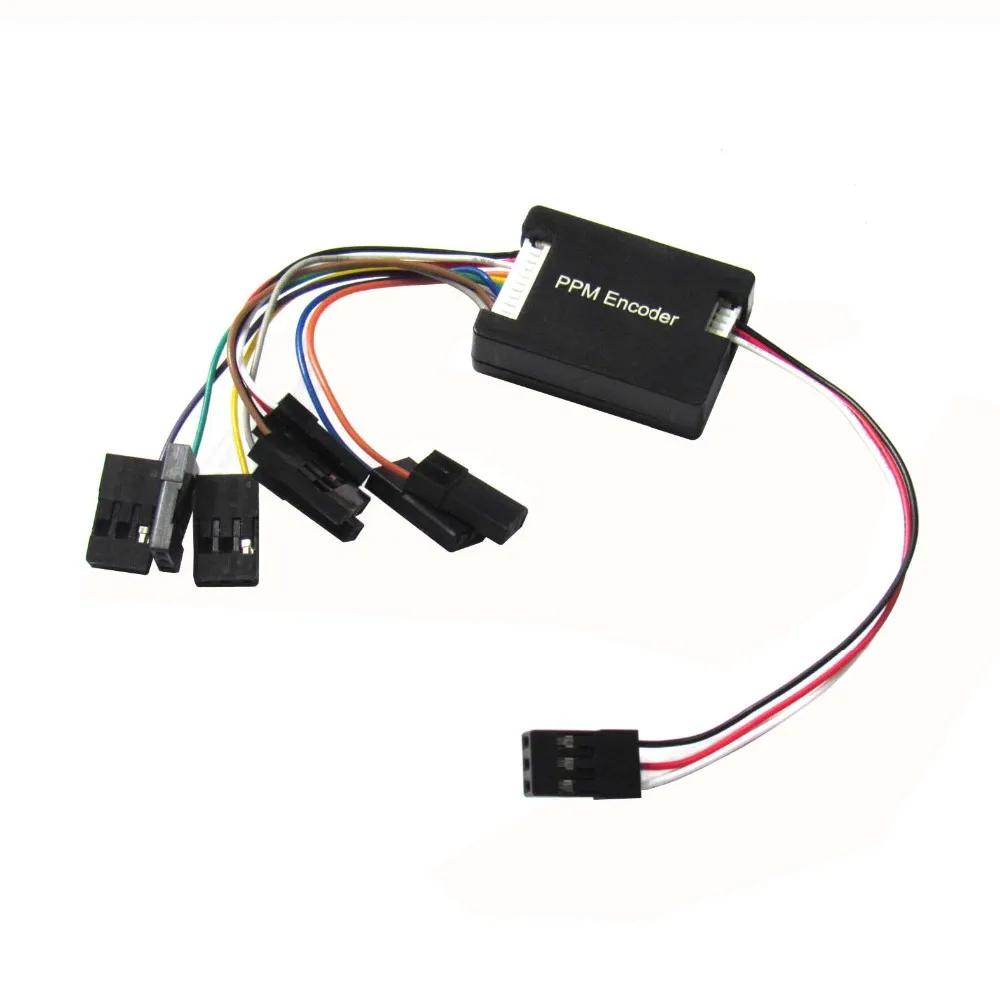

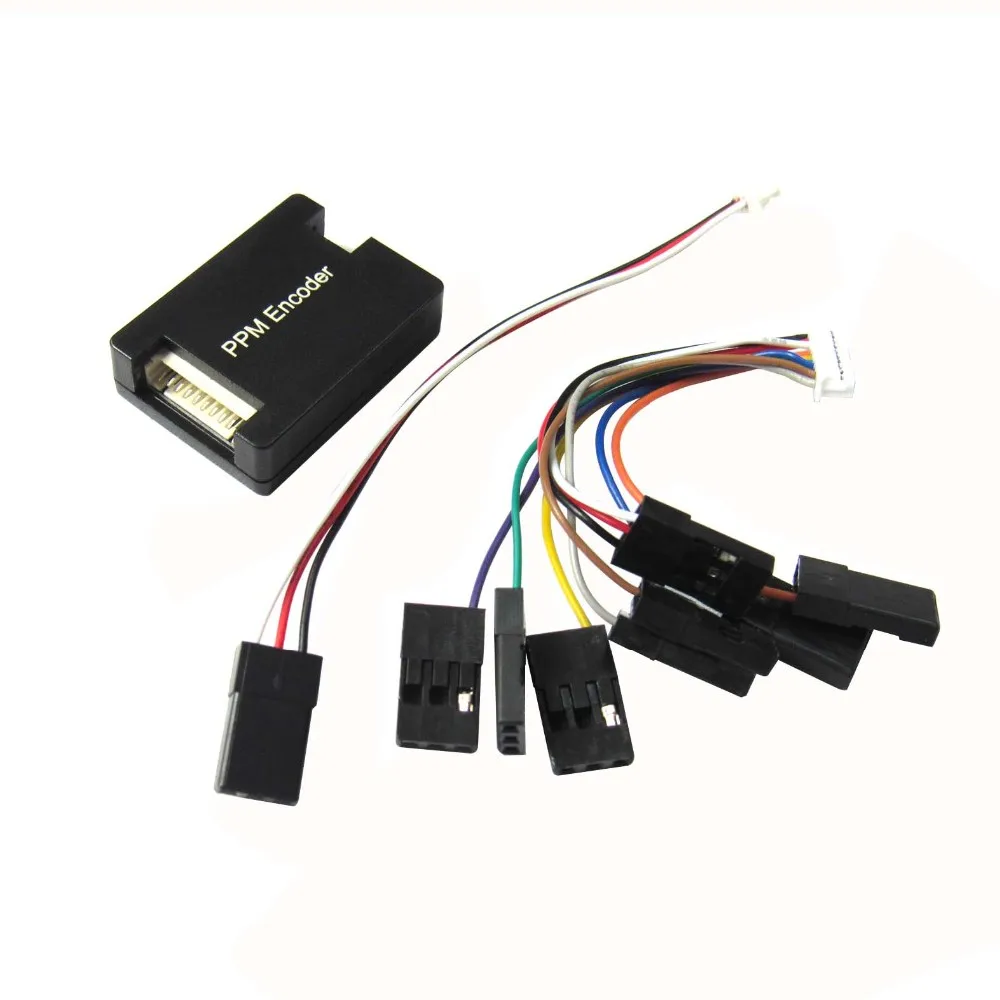

Package including:
PPM Encoder(Black ) x 1
10 Pin input cable 60mm  X 1
4 Pin output cable 100mm  X 1
