Mini OSD Module For Pixhawk FC

(No reviews yet) Write a Review
SKU:
PELOP33
Shipping:
Calculated at Checkout
  • Mini OSD Module For Pixhawk FC
  • Mini OSD Module For Pixhawk FC
KES2,000.00

Description

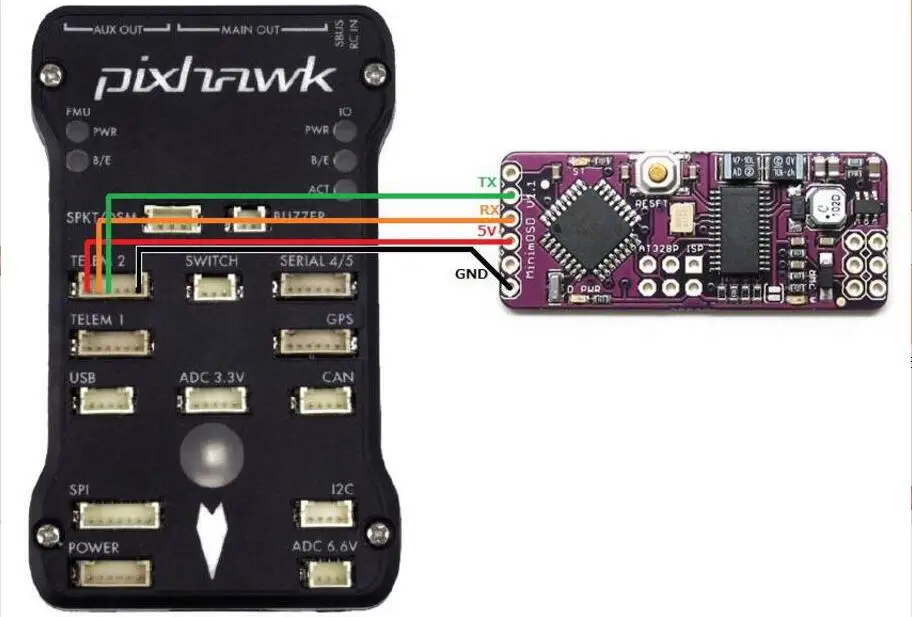

PX4 Pixhawk2.4.6 has an companion OSD board called MinimOSD. It reads all the MAVLink data in the APM telemetry stream and overlays it on the video stream if you're using an on-board camera and wireless video transmitter. This is useful if you're flying in First Person View (FPV) mode or don't want to usealaptop at the field to see your telemetry data in the Mission Planner.Instructions on connecting and using the MinimOSD board via the APM telemetry port are here. Connection photos with APM 1 and APM 2 are below.

Important note: You cannot connect

use the OSD when your APM 2. is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD.

Features:
-ATmega328P with bootloader
-MAX7456 monochrome on-screen display
-FTDI cable compatible pinout
-Standard 6-pin ISP header
-If you use it separately, please connect to APM by TX, RX Connector
-If you use with  3DR Radio Telemetry, only need to connect the RX Connector, don't need the TX.
-Two independent power sections with an LED indicator on each
-Solder jumpers for combining the power sections
-+5V 500mA regulator for up to +12V supply input
-Solder jumper for PAL video option

Package Included:
1x Mini OSD Module
1x 4 Pins Cable
1x 6 Pins Cable

 Note: the package do not include the pixhawk board, just OSD board.
