Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

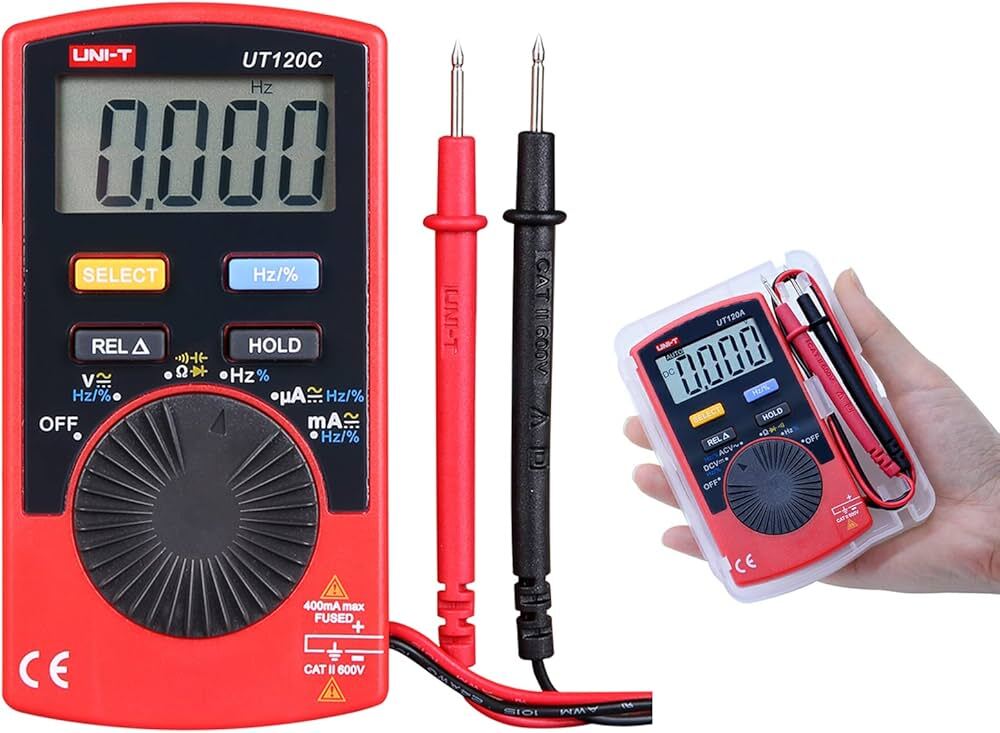

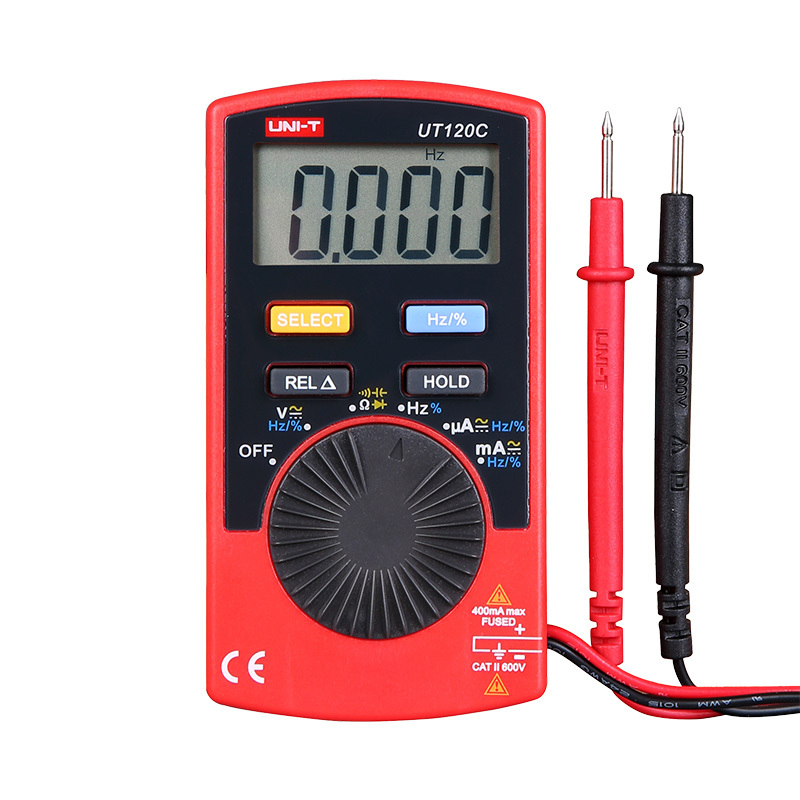

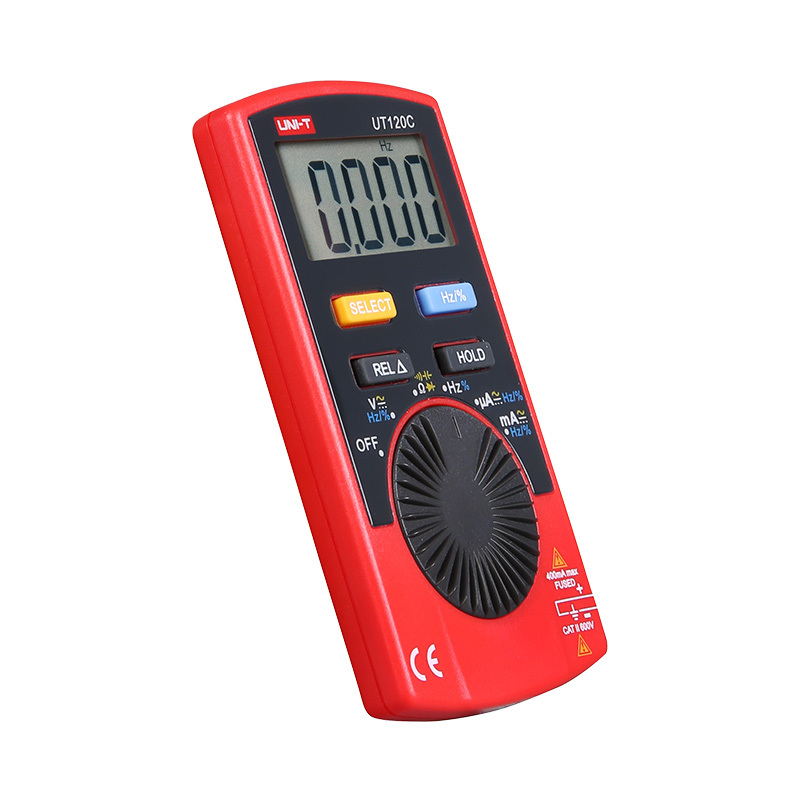

| Product Series | UNI-T UT120 Series |
| Type | Portable digital multimeter |
| Display Count | 4000 counts (3 3/4 digit) |
| Range Type | Auto-ranging |
| Design | Ultra-compact, wearable multimeter |
| Safety Rating | CAT II 600V |
| Certifications | CE, EN61010, EN61326 |
| Input Impedance (DCV) | ~10MΩ |
Measurement Ranges & Accuracy
| PARAMETER | RANGE | ACCURACY |
|---|---|---|
| DC Voltage | 400mV / 4V / 40V / 600V | ±(0.8% + 3) |
| AC Voltage | 4V / 40V / 400V / 600V | ±(1.2% + 3) |
| DC Current | 4mA / 40mA / 400mA | ±(1.0% + 3) |
| AC Current | 4mA / 40mA / 400mA | ±(1.5% + 5) |
| Resistance | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ | ±(1% + 2) |
| Capacitance | 4nF – 100F (range provided as stated) | ±(4% + 3) |
| Frequency | 10Hz – 10MHz | ±(0.5% + 3) |
| Duty Cycle | 0.1% – 99.9% | Supported |
Display & Hardware
| CATEGORY | SPECIFICATIONS |
|---|---|
| LCD Size | 43 mm × 22 mm |
| Power Supply | 3V CR2032 battery |
| Product Size | 110 mm × 58.2 mm × 10.8 mm |
| Net Weight | 76 g |
| Color | Red and Grey |
Package Includes:
1 x UNIT UT120C Digital Multimeter
