Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | Digital Clamp Meter |

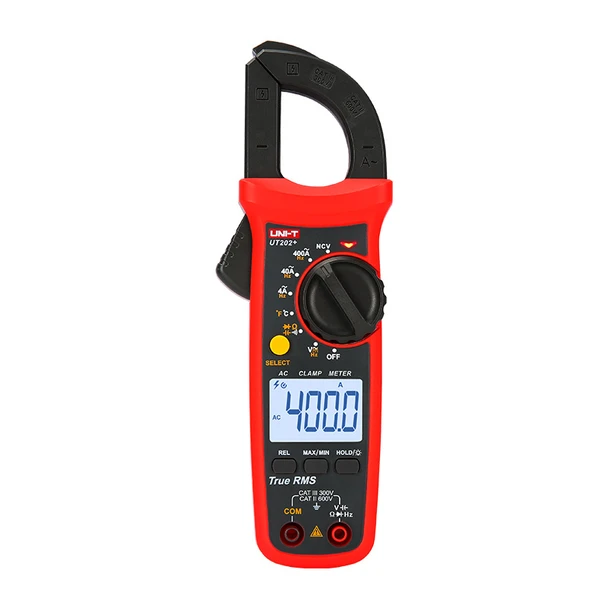

| Model | UNI-T UT202+ |
| Measurement Technology | True RMS (assumed standard for UT202 series) |
| Design | Clamp-type (non-contact current measurement) |
| Portability | Compact, durable, field-ready |
| Use Case | Electrical and electronics troubleshooting |
Measurement Ranges & Accuracy
| PARAMETER | RANGE | ACCURACY |
|---|---|---|
| AC Current | 400A (up to 600A range depending on mode) | ±(2% + 10) |
| AC Current Frequency | 50Hz – 100Hz | ±(1% + 5) |
| DC Current | 400A / 600A | Not fully specified |
| AC Voltage | 600V | ±(0.8% + 5) |
| AC Voltage Frequency | 10Hz – 10kHz (up to 60kHz in extended mode) | ±(1% + 5) |
| DC Voltage | 600V | ±(0.5% + 2) |
| Resistance | Up to 40MΩ / 60MΩ | ±(0.8% + 2) |
| Capacitance | Up to 4mF / 40mF / 60mF | ±(4% + 5) |
| Temperature | -40°C to 1000°C | ±(1.5% + 5) |
| Frequency | 10Hz – 10MHz | Not fully specified |
Design & Build
| CATEGORY | SPECIFICATIONS |
|---|---|
| Clamp Type | Non-contact measurement jaw |
| Form Factor | Compact handheld design |
| Durability | Rugged build for industrial and field use |

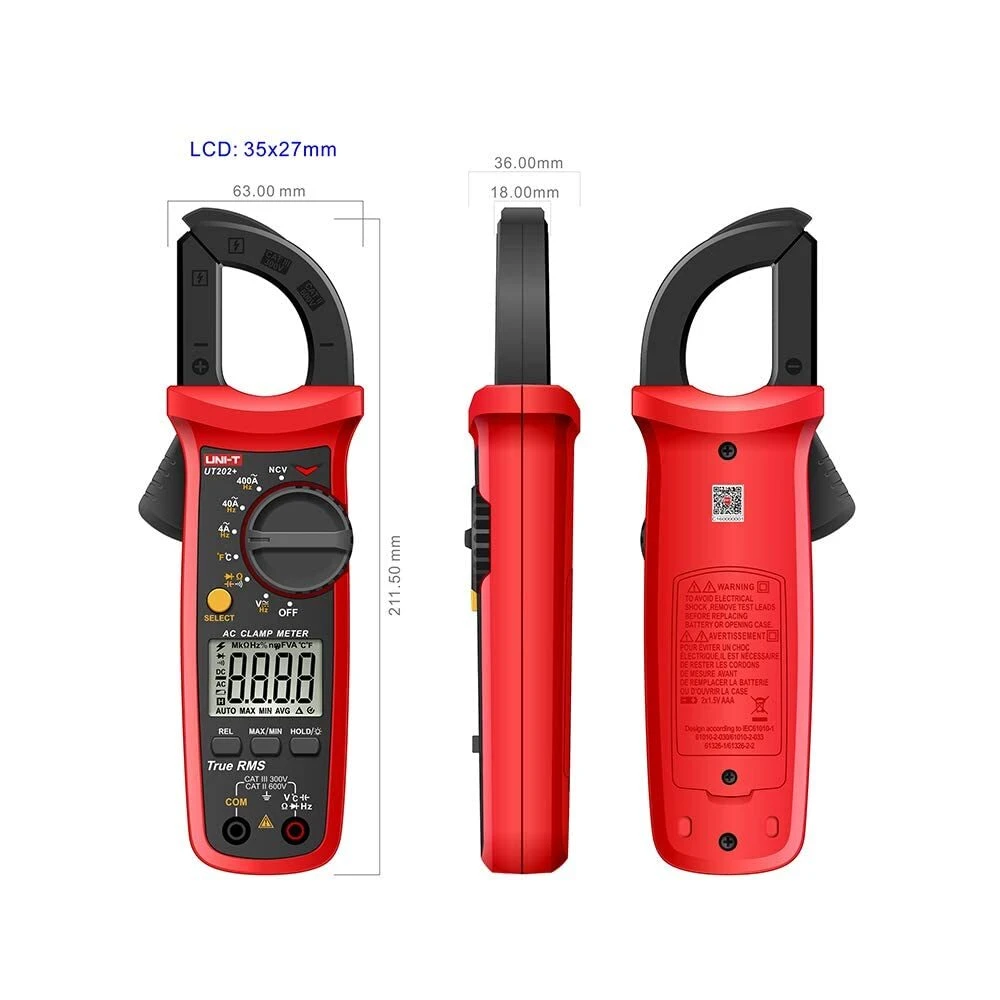

| Screen Display | LCD (exact size not specified in provided data) |

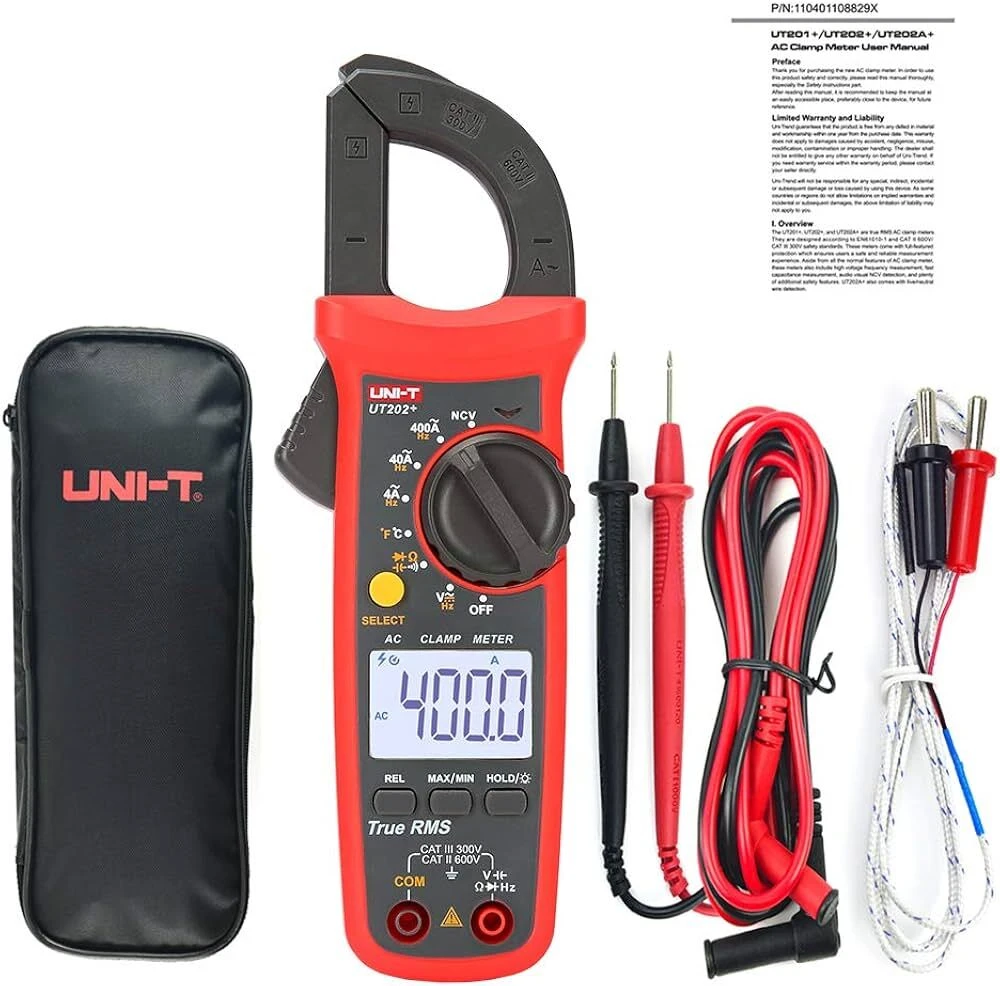

Package Includes:
1 x UNI-T UT202+ Digital Clamp Meters ; True Rms ; 600 VAC/DC 400 A AC
