Description

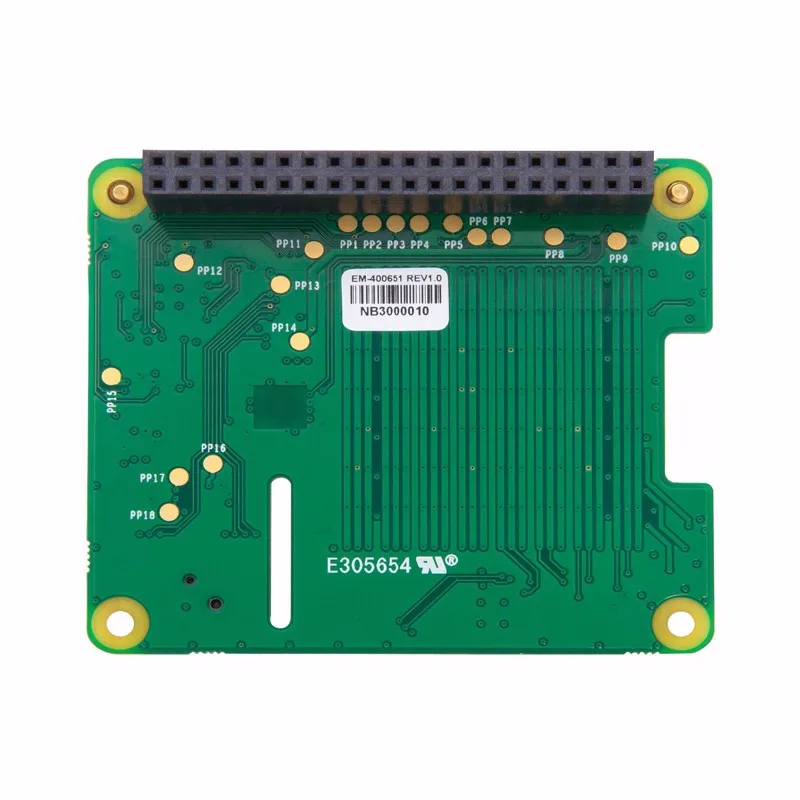

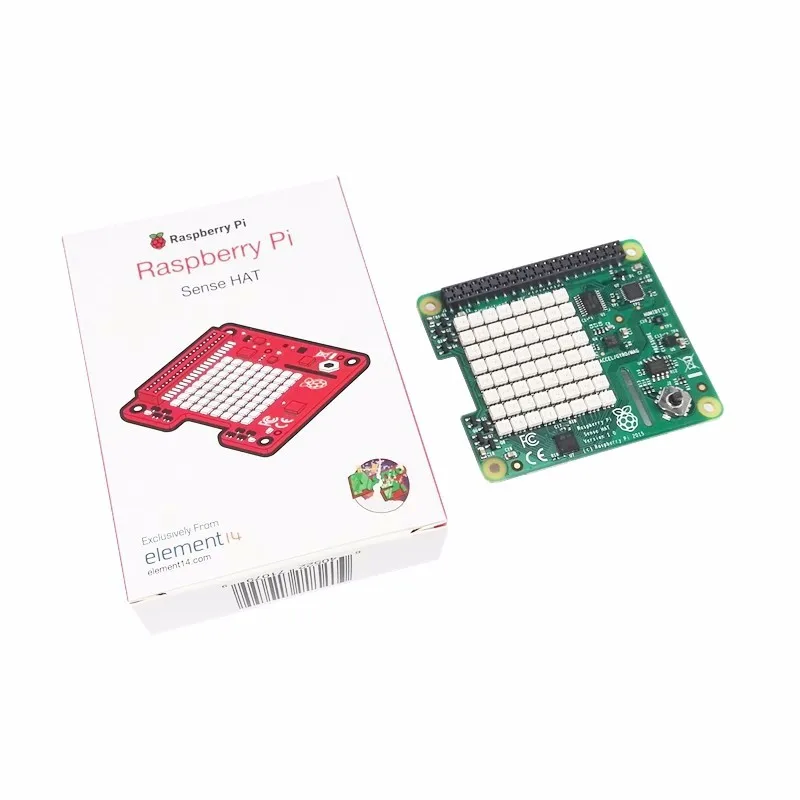

The Raspberry Pi Sense HAT is an add-on board for Raspberry Pi, made especially for the Astro Pi mission which launched to the International Space Station in December 2015 and is now available to buy. It features a multitude of inputs and outputs for reading and interacting with the Sense HAT's sensors and the Raspberry Pi.
The Sense HAT has an 8×8 RGB LED matrix, a five-button joystick and includes a gyroscope, accelerometer, magnetometer, temperature sensor, barometric pressure sensor, and humidity sensor.
Features:
| CATEGORY | SPECIFICATION |
|---|---|
| Device | Raspberry Pi Sense HAT |
| Attachment | Connects via 40 GPIO pins on Raspberry Pi |
| Gyroscope | Angular rate sensor: ±245/500/2000 dps |
| Accelerometer | Linear acceleration sensor: ±2/4/8/16 g |
| Magnetometer | Magnetic sensor: ±4/8/12/16 gauss |
| Barometer | 260–1260 hPa absolute range |
| Temperature sensor | Accuracy ±2°C in 0–65°C range |
| Humidity sensor | Relative Humidity sensor included |
| Display | 8×8 LED matrix display |
| Joystick | Small 5-button joystick |
| Core architecture | AVR (ATtiny88) |
| Features | Accelero/Gyro/Magneto/Barometer/Temp/Humidity I2C sensors, 8×8 LED matrix, teeny joystick |
| Compatibility | Raspberry Pi single-board computers |
| Kit contents | Add-on board ATtiny88 |
| Silicon family | tinyAVR |
| Manufacturer | Atmel |
| Applications | Consumer electronics, embedded design & development, hobby & education, sensing & instrumentation |
Package Includes:
1pc x Raspberry Pi-Sense HAT
