Raspberry Pi PoE HAT Expansion Board

(No reviews yet) Write a Review
SKU:
PEGPI23
Shipping:
Calculated at Checkout
  • Raspberry Pi PoE HAT Expansion Board
  • Raspberry Pi PoE HAT Expansion Board
TZS110,511.84

SOLD OUT

Frequently bought together:

Description

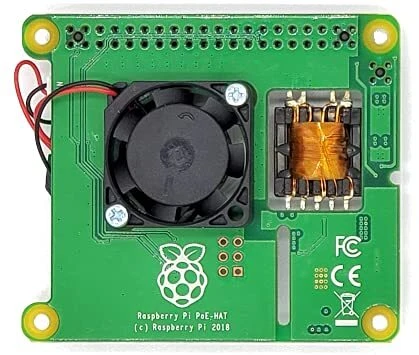

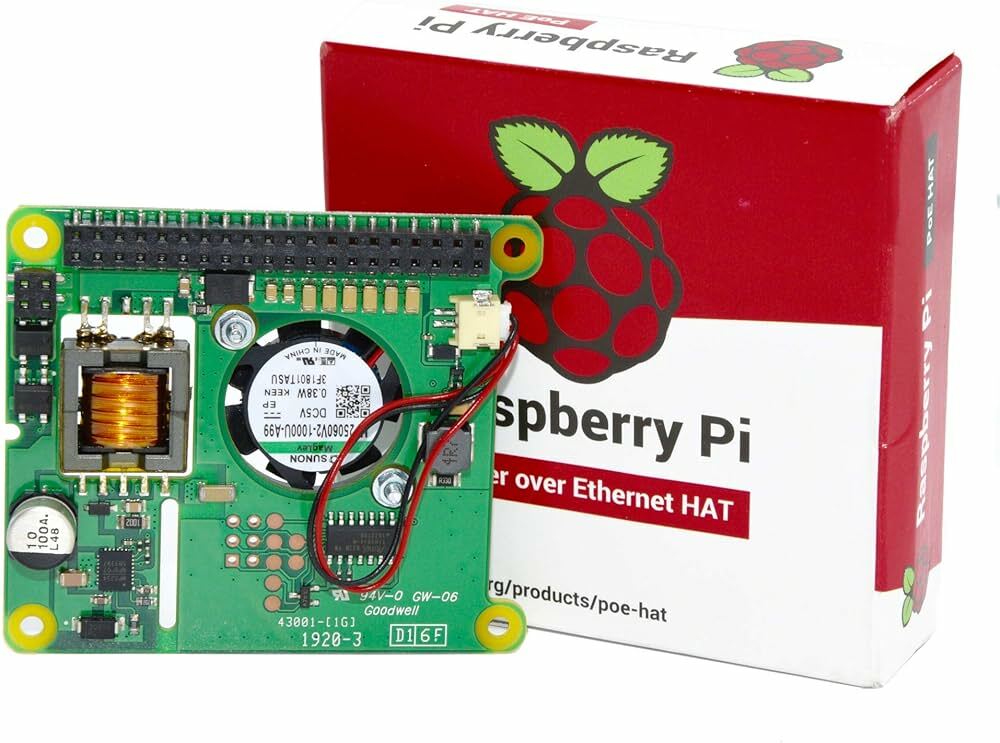

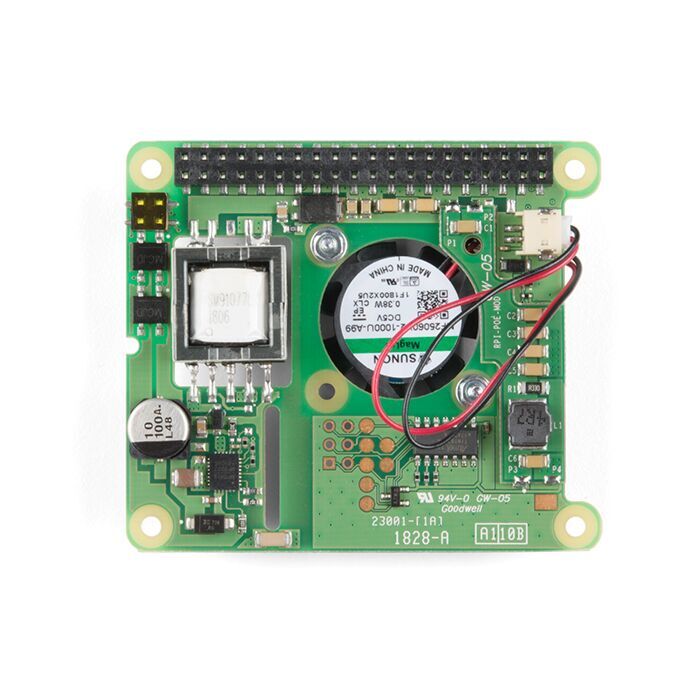

The official Power-over-Ethernet (PoE) expansion board for Raspberry Pi 3 Model B+ and Pi 4.
This HAT allows the Raspberry Pi to be powered via an Ethernet cable, eliminating the need for a separate power supply.
This is an ideal solution for embedded and IoT projects. An 802.3af compliant PoE injector, switch or router is required for operation (not included).

Features:

CATEGORY SPECIFICATION
Power standard Compliant with Power-over-Ethernet (PoE) 802.3af
Device class Class 2
Power supply type Fully isolated switching power supply (SNT)
Input voltage 36–56 V
Output voltage 5 V
Maximum current Up to 2.5 A
Cooling Fan control
Compatibility Plug-and-play with Raspberry Pi 4 and Raspberry Pi 3 Model B+



Package Includes:

1pc x POE HAT Expansion

Note:
Can only be powered by PoE devices that comply with the 802.3af standard.
The external power source used by the Raspberry Pi should comply with the relevant regulations and standards of the target country.
The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit.
Should be operated in a well ventilated environment, if used inside a case, the case should not be covered.
It should be placed on a smooth insulating surface during use and should not be in contact with conductive objects.
Do not block or block the fan, do not insert anything in the fan.
Do not expose this product to water, moisture or high temperatures. This product is designed to operate at normal room temperature.
Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the risk of electrostatic discharge damage.
