Description

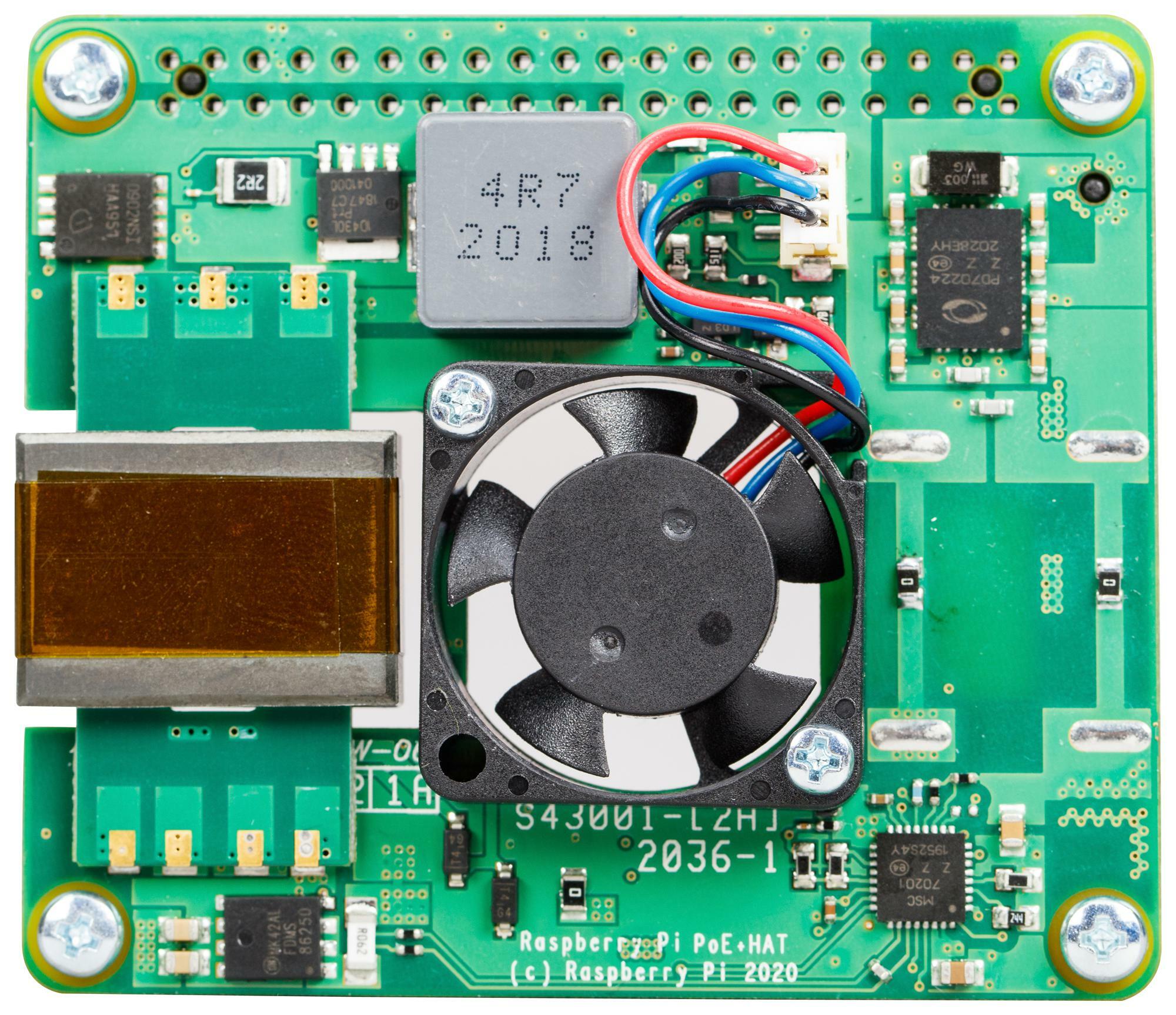

The official Power over Ethernet (PoE+) add-on board for the Raspberry Pi 3 Model B+, and Raspberry Pi 4 Model B and Compute Module 4 IO board. Use this HAT to power a Raspberry Pi via an Ethernet cable, removing the need for a separate power supply, an ideal solution for embedded and IoT projects. For Raspberry Pi 3 Model B+ and onwards, an 802.3af compliant POE injector, switch or router device is required (not included).
Features:
| CATEGORY | SPECIFICATION |
|---|---|
| Power standard | Power over Ethernet (PoE) 802.3af compliant |
| Device class | Class 2 |
| Power supply type | Fully isolated switched-mode power supply (SMPS) |
| Input voltage | 36–56 V |
| Output voltage | 5 V |
| Maximum current | Up to 4 A |
| Cooling | Fan control |
| Compatibility | Plug-and-play with Raspberry Pi 3 Model B+, Raspberry Pi 4 Model B, and Compute Module 4 IO board |
Application.
Embedded Design & Development, Hobby & Education, Communications & Networking, IoT (Internet of Things)
Package Includes:
- 1 x Raspberry Pi PoE Plus HAT
- GPIO Header
- Standoffs and fixings
PoE+ HAT Dimensions
The Raspberry Pi PoE+ HAT's overall dimensions are 56.5mm x 65mm (identical to the original PoE HAT).
