diymore

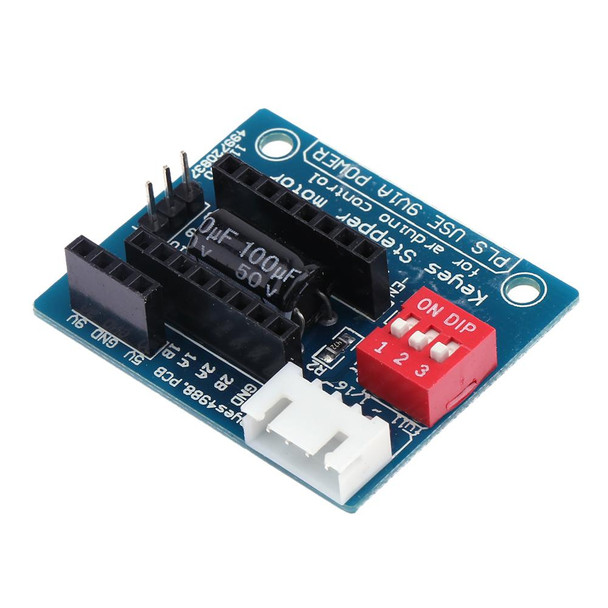

DRV8825 A4988 Motor Driver Control Panel Board
(No reviews yet)
Write a Review
- SKU:
- PEDRV48
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Driver Compatibility | A4988 / DRV8825 |
| Insertion Note | Take care of direction when inserting to avoid burning the driver |
| Microstep Jumper Setting | ON DP indicates 16 subdivision (A4988) or 32 subdivision (DRV8825) |
| Motor Connection (Jm) | Connects to motor |
| Power Connection (Jv) | Connects 5V and 12–24V power |
| Signal Connection (Jc ESDG) | Corresponds to Enable, Step, Dir, Gnd drive signals |
| Size | 42 × 42 × 15 mm |
| Fixing Hole | 3 mm |
| Pitch | 1400 × 1400 mil (35.56 × 35.56 mm) |
| Logic Voltage | 5 V |
| Input Voltage | 12–30 V |
| Ports | Digital |
| Interface | Direction, Enable, Speed |
| Applicable Module | A4988, DRV8825 |
Note: Please note the direction when installing the drive module, otherwise it will burn module
Package Includes:
1 x 42 Stepper Motor Drive Expansion Board
