Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

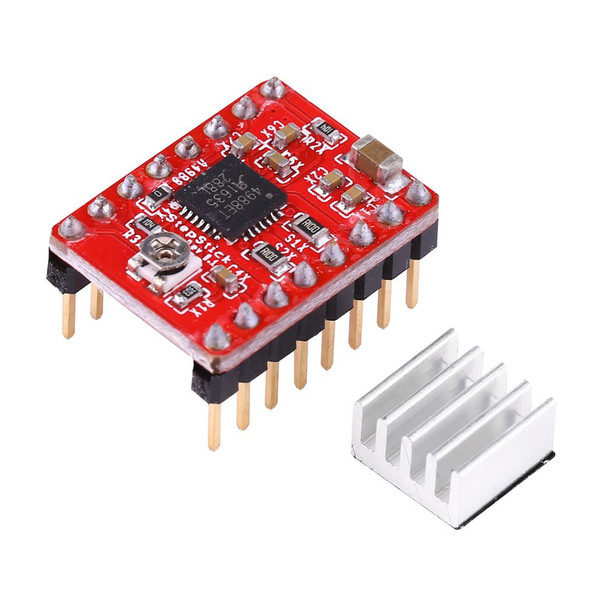

| Product Name | A4988 Microstepping Motor Driver |
| Step Modes | Full, 1/2, 1/4, 1/8, 1/16 |
| Motor Type | Bipolar stepper motors |
| Output Drive Capacity | Up to 35 V, ±2 A |
| Current Regulation | Fixed off-time current regulator, slow or mixed decay modes |
| Microstep Operation | Automatic current decay mode selection (slow or mixed) |
| Mixed Decay Mode | Initial fixed fast decay, remainder slow decay |
| PWM Efficiency | Internal synchronous rectification for low power dissipation |
| Protection Features | Thermal shutdown with hysteresis, undervoltage lockout (UVLO), crossover-current protection, ground fault protection, load short-circuit protection |
| Logic Supply Compatibility | 3.3 V and 5 V |
| Ease of Use | Built-in translator, drives motor one microstep per pulse, no phase tables or complex interface required |
Package Includes:
1 x A4988 Stepper motor driver
