Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | Ethernet Network Interface Module |
| Chipset | W5100 |
| Memory | 16 KB internal TX/RX buffer |
| Ethernet Standard | IEEE 802.3 10Base-T / 802.3u 100Base-TX |
| Power Supply | 3.3V (5V logic compatible I/O) |
| Interface Options | Direct bus, indirect bus, SPI |
| Protocol Support | TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE |
| Function | Hardware TCP/IP stack integrated |
| Auto Function | Auto MDI/MDIX (polarity correction) |
| Ports | Up to 4 independent sockets |

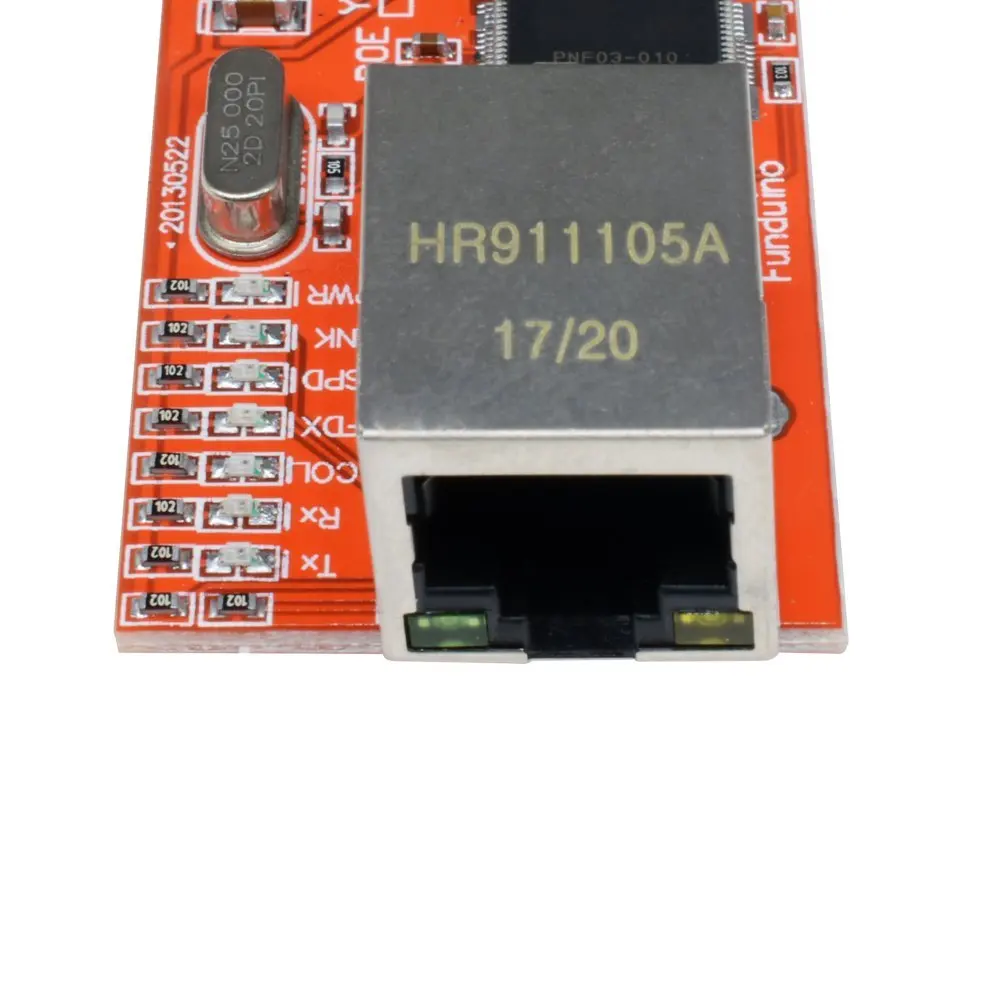

| Indicators | RX, TX, Link, Speed, Full/Half duplex, Collision |
| Key Features | No OS required, embedded TCP/IP networking, stable Ethernet communication |
| Applications | Embedded systems, industrial networking, IoT devices, network control systems |
Package Includes:

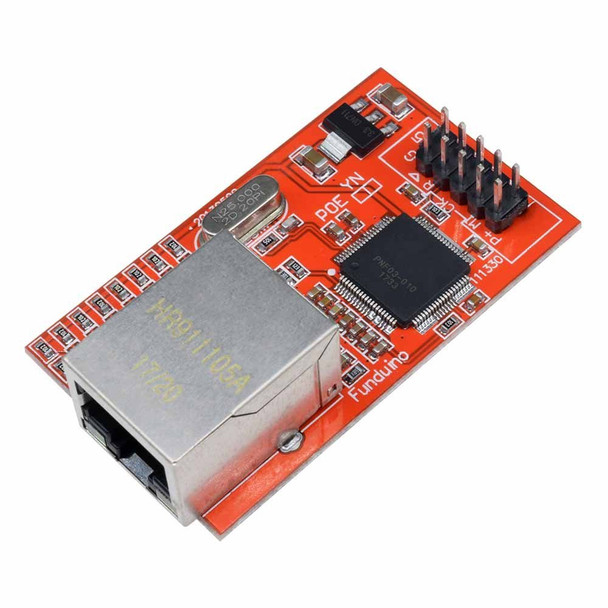

1 x Mini W5100 LAN Ethernet Shield Network Module board for Arduino
