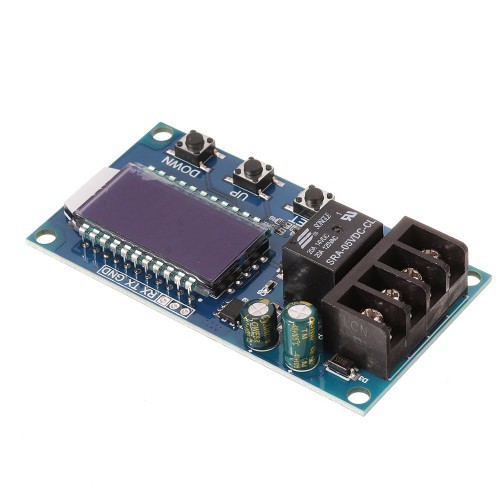

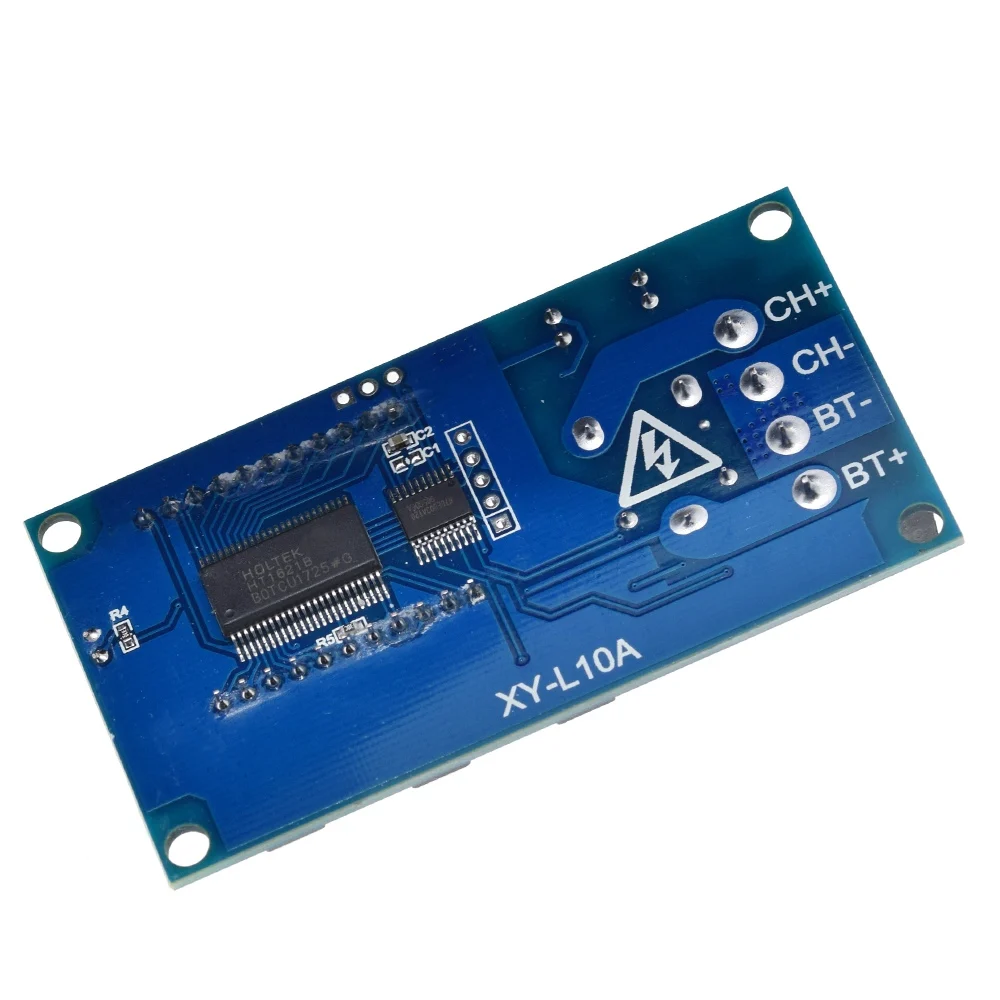

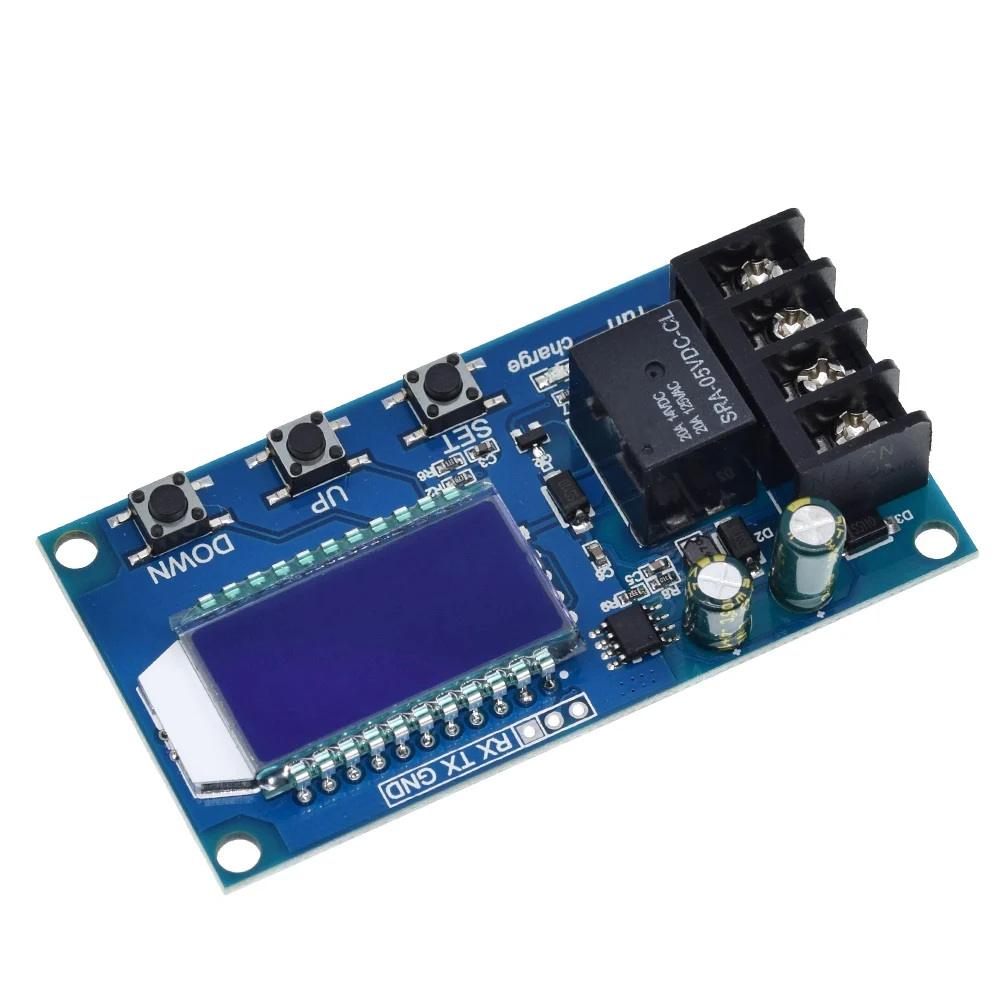

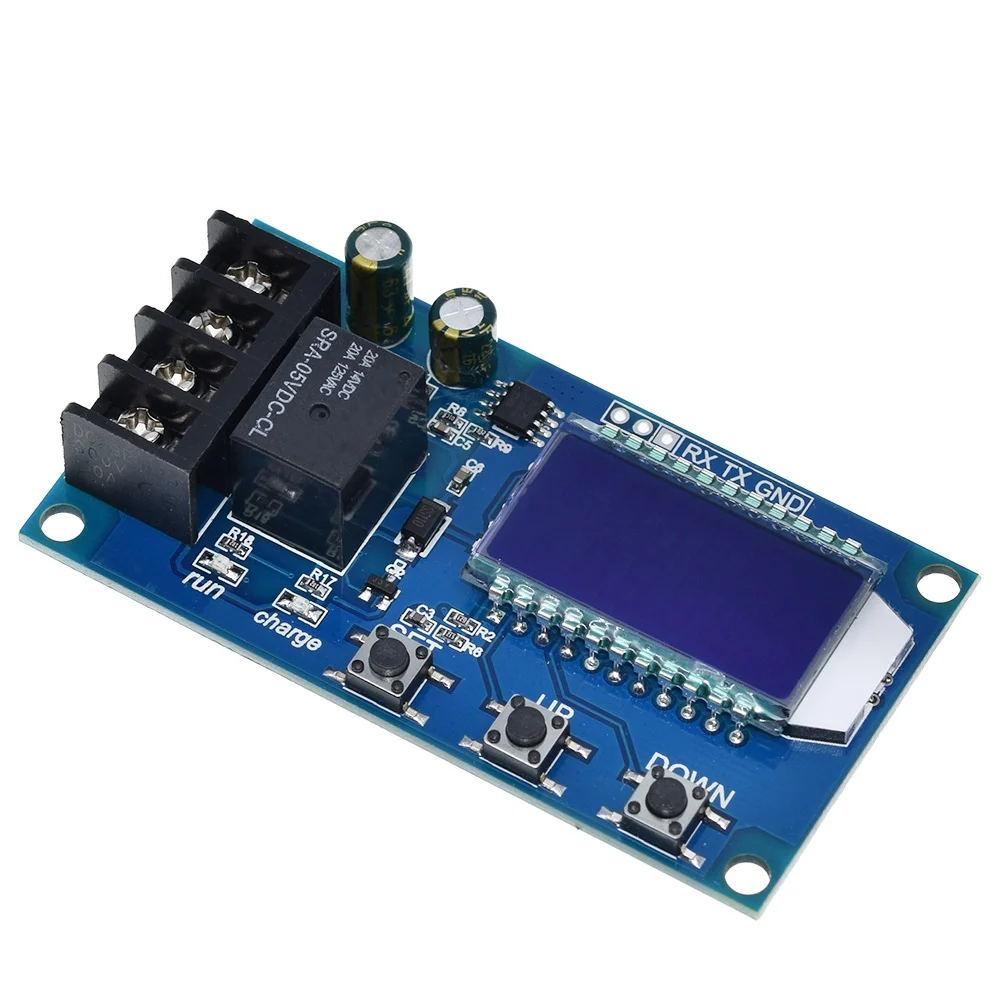

XY-L10A 6-60v 10A Lead-acid Solar Charge Controller
(No reviews yet)
Write a Review
- SKU:
- PEMIN69
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Supported Battery Types | Lead-acid batteries, “Acting” batteries (general rechargeable battery systems) |
| Voltage Range | DC 6–60V (maximum applicable system) |
| Display Function | LCD shows battery voltage, battery percentage, and charging time simultaneously |
| Control Type | Automatic voltage-based charge control with relay switching |
| Core Function | Automatically starts/stops charging based on preset upper and lower voltage thresholds |
| Voltage Settings | • UP (Volt-HI): upper cutoff voltage• dn (Volt-LI): lower restart voltage |
| Charging Logic | • Voltage < dn → relay ON (charging starts)• Voltage ≥ UP → relay OFF (charging stops) |
| Time Control Function | Adjustable charging duration (00:00–99:59 hours, up to 100 hours) |
| Time Control Behavior | • If enabled (OP ≠ 0): timing starts when charging begins• Stops charging when time ends or voltage limit is reached• Error “H:ER” shown if settings are invalid |
| Serial Communication | UART support for parameter setting and data upload |
| Data Format Output | Battery voltage + percentage + charge time + status (e.g., 12.0V,020%,00:10,OP) |

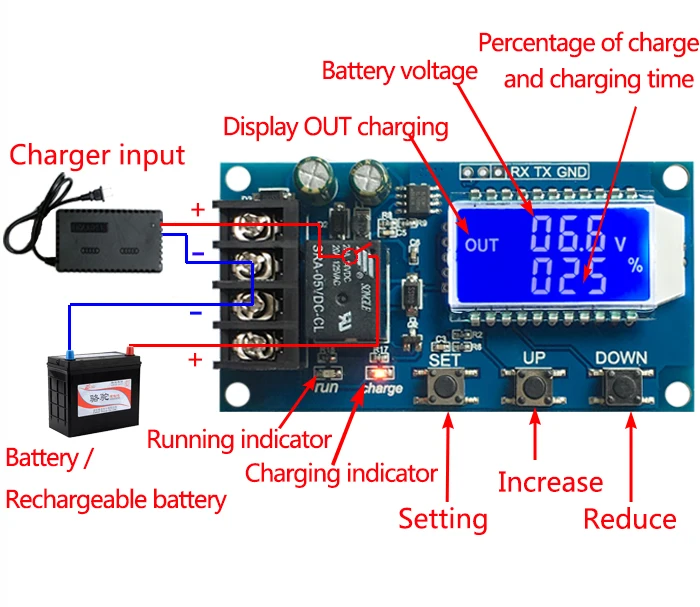

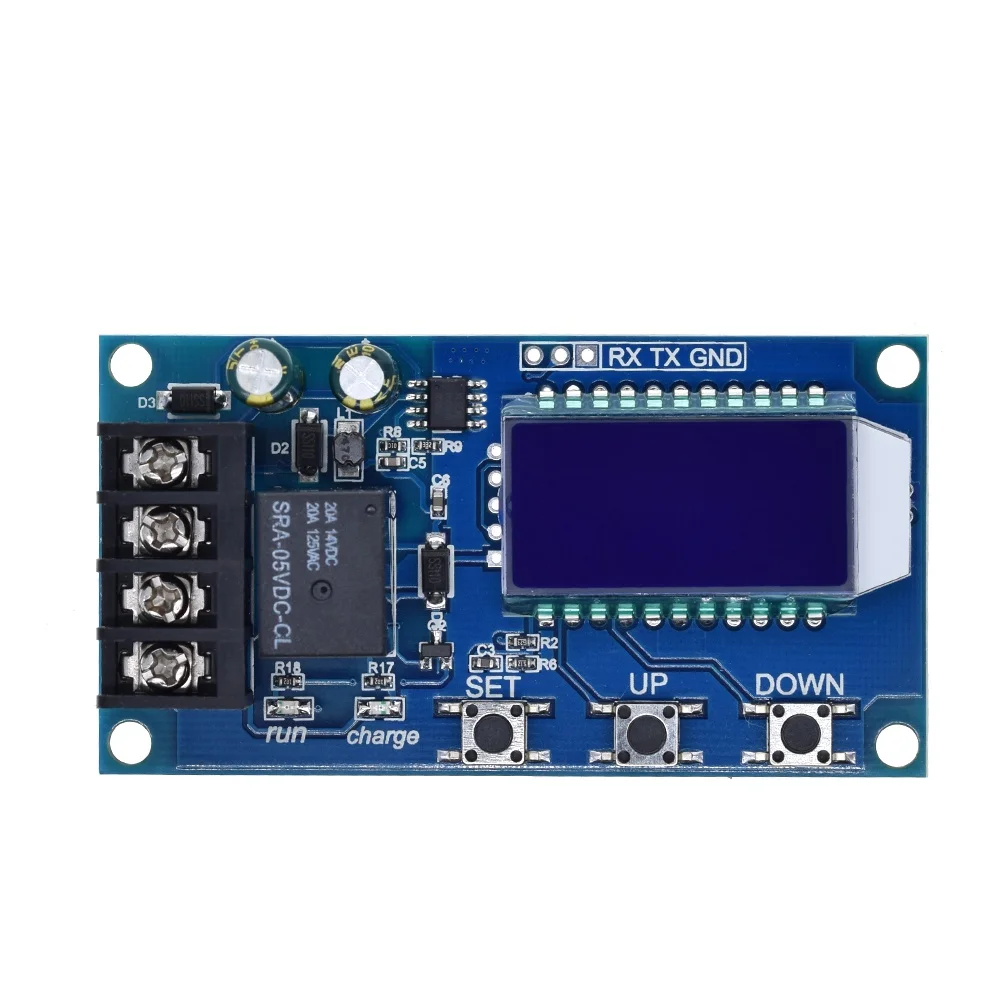

| Parameter Setting Method | • Hold SET to enter menu• Short press SET to switch parameters• UP/DOWN to adjust values• Long press SET to save/exit |
| Button Functions | • SET: menu/confirm• UP: increase / display toggle• DOWN: decrease / relay enable toggle |
| Battery Percentage Formula | Voltage % = battery voltage ÷ (UP − dn) |
| Backlight Control | Long press UP: ON (auto-off after 10 min) / OFF (always on) |
| Smart Features | • Charging time memory• Automatic parameter error detection (“ERR”)• Battery detection warning (“NbE”) |
| Relay Function | Acts as automatic switch for charging circuit (ON/OFF control only) |
| Size/Physical | Not specified in provided data |
| Key Limitation | Does NOT regulate current — charging current depends entirely on external charger |
| Important Note | Works as voltage-based switch controller only; cannot step-up/down voltage or limit current |
| Applications | • Automatic battery charging systems• Solar charge switching systems• Battery protection cutoff systems• DIY power management setups |
Package Includes:
1 x Battery Charge Controller Module
