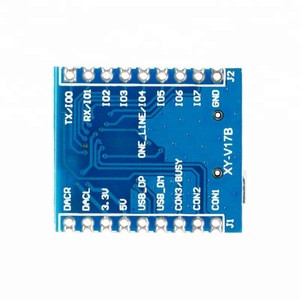

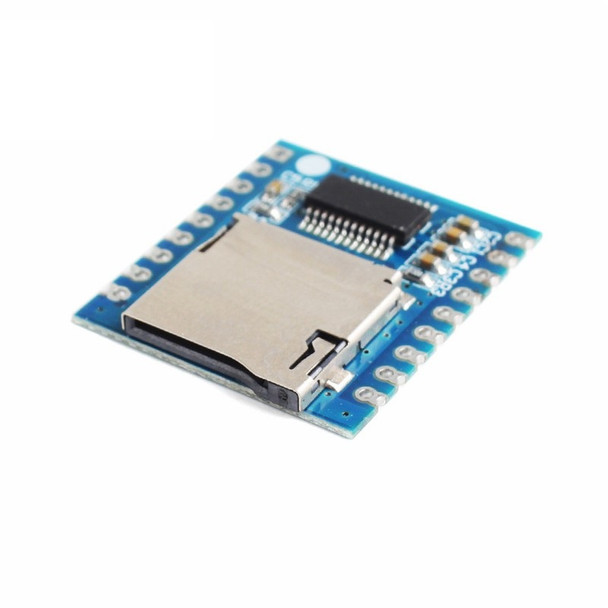

XY-V17B Serial Control SD/TF Card Module

Name: XY-V17B Serial Control SD/TF Card Module
Brand: diymore
SKU: PETYA72
Price: 300 KES
Availability: InStock

(No reviews yet) Write a Review

KES300.00

Quantity:

Frequently bought together:

Description

Features:

CATEGORY	SPECIFICATIONS
Product Name	Multi-Function MP3 Voice Playback Module
Audio Formats	MP3, WAV decoding
Sampling Rates	8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz
DAC Output	24-bit
Dynamic Range	90 dB
Signal-to-Noise Ratio	85 dB
File System Support	FAT16 / FAT32
Storage Support	TF card up to 32GB; U disk up to 32GB
Control Modes	UART serial control; IO trigger mode; One_line single-wire control
UART Baud Rate	9600 bps
Max Track Support	Up to 65535 tracks
IO Trigger Modes	8 IO ports for independent or multi-track triggering (up to 255 tracks)
Mode Configuration Pins	CON1, CON2, CON3/Busy
Power Supply	3.3V – 5V (VDD/5V pin)
On-board Regulator	3.3V LDO output (max 100mA)
Audio Output	DACL (left channel), DACR (right channel)
USB Interface	USB_DM, USB_DP

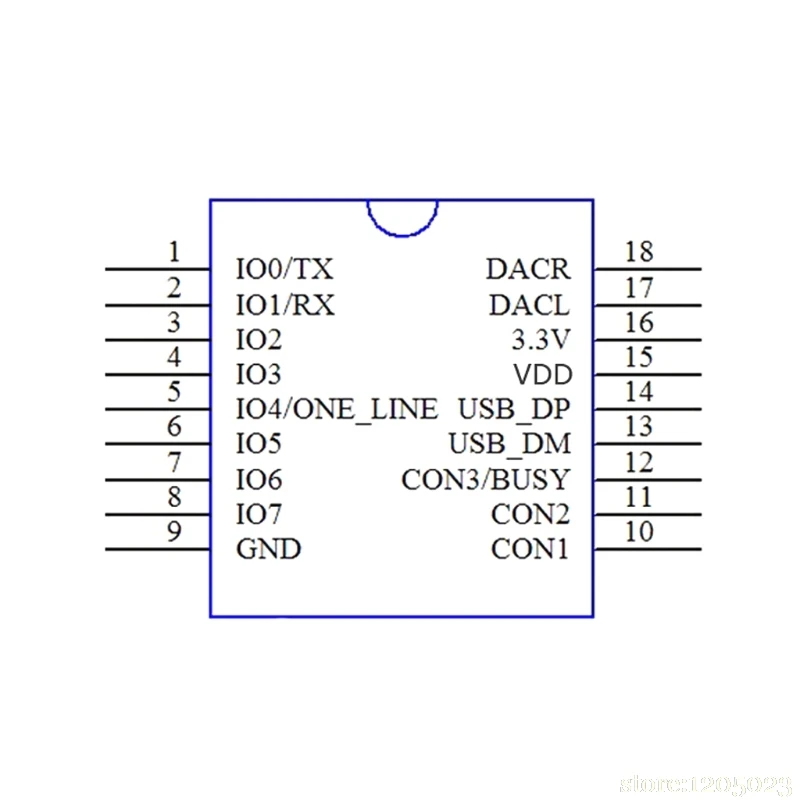

Control Pins	IO0–IO7, UART_TX, UART_RX, ONE_LINE
Status Output	Busy pin (high = playing, low = idle)
Key Features	Multi-mode control (UART / IO / single-wire)
	High-capacity track selection support
	Multiple sampling rate compatibility
	Independent IO triggering capability
	Easy microcontroller integration
Applications	Voice playback systems
	Embedded audio announcement systems
	Interactive devices and automation
	Industrial alerts and notification systems
	Smart toys and DIY electronics
