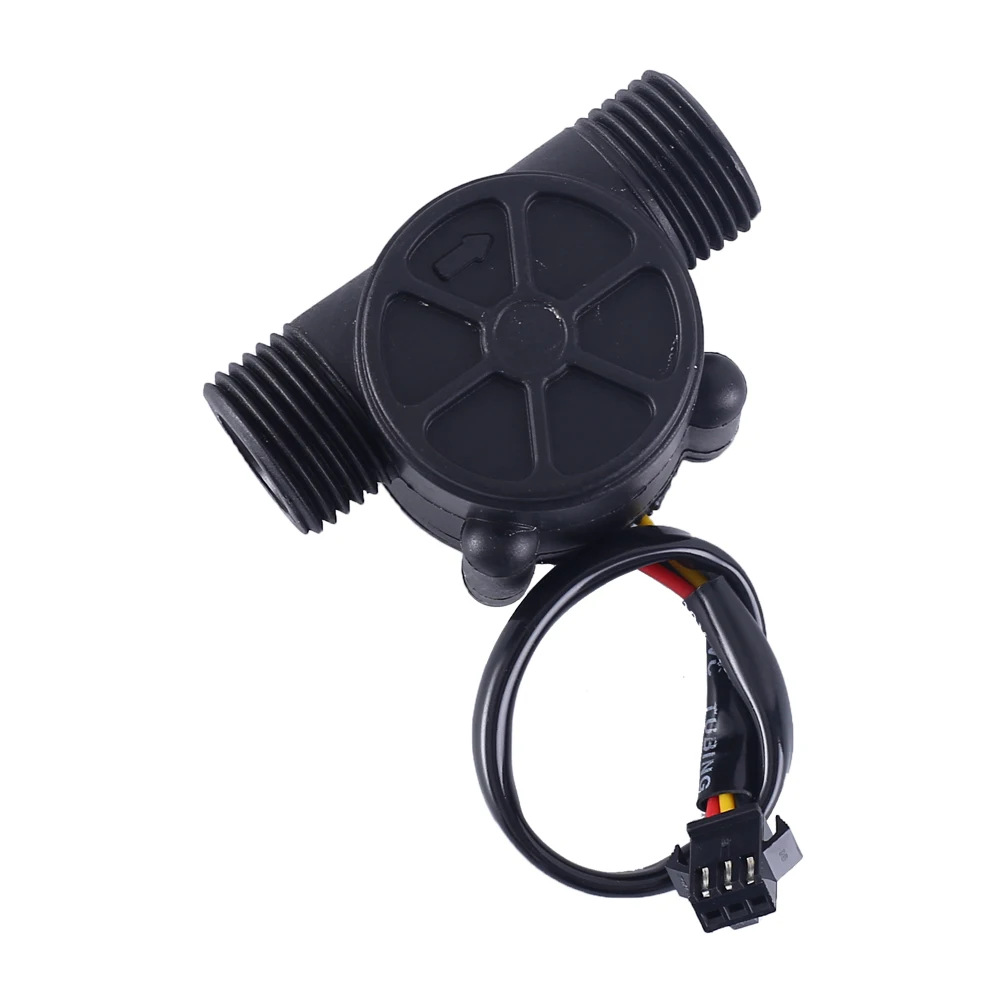

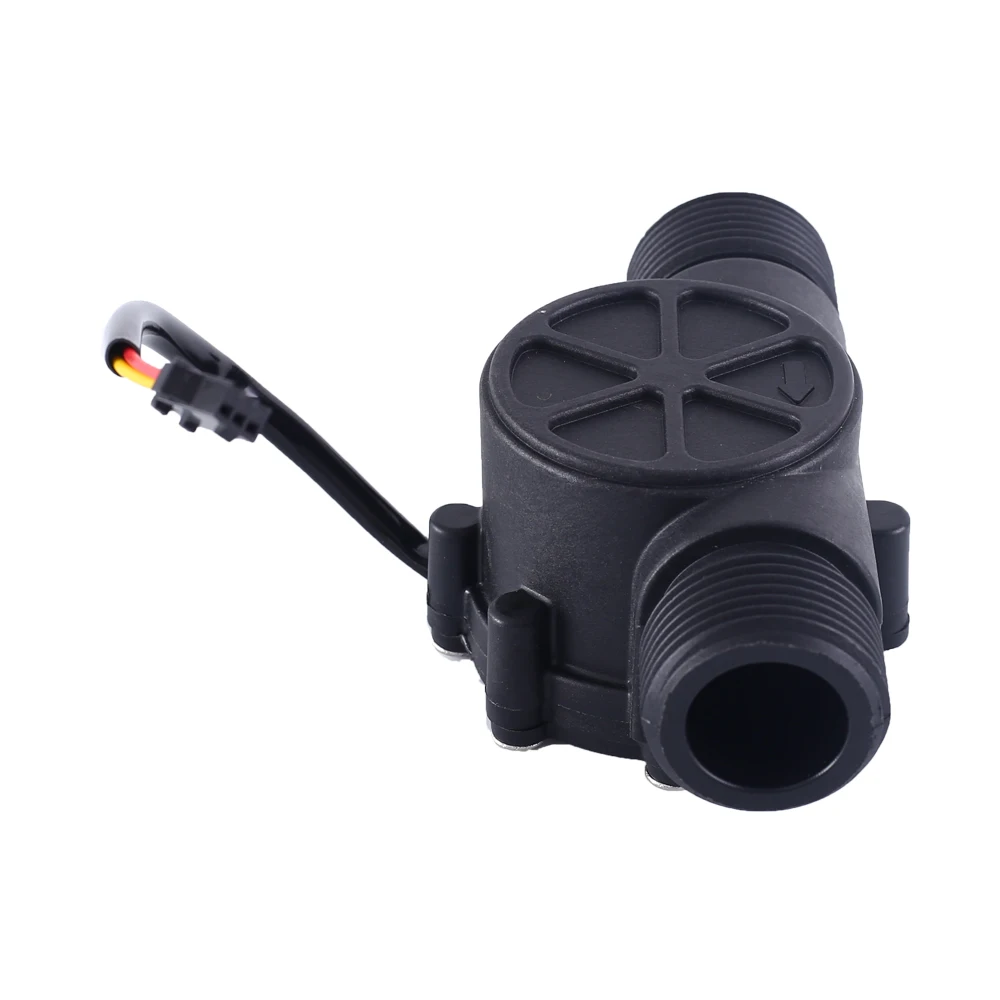

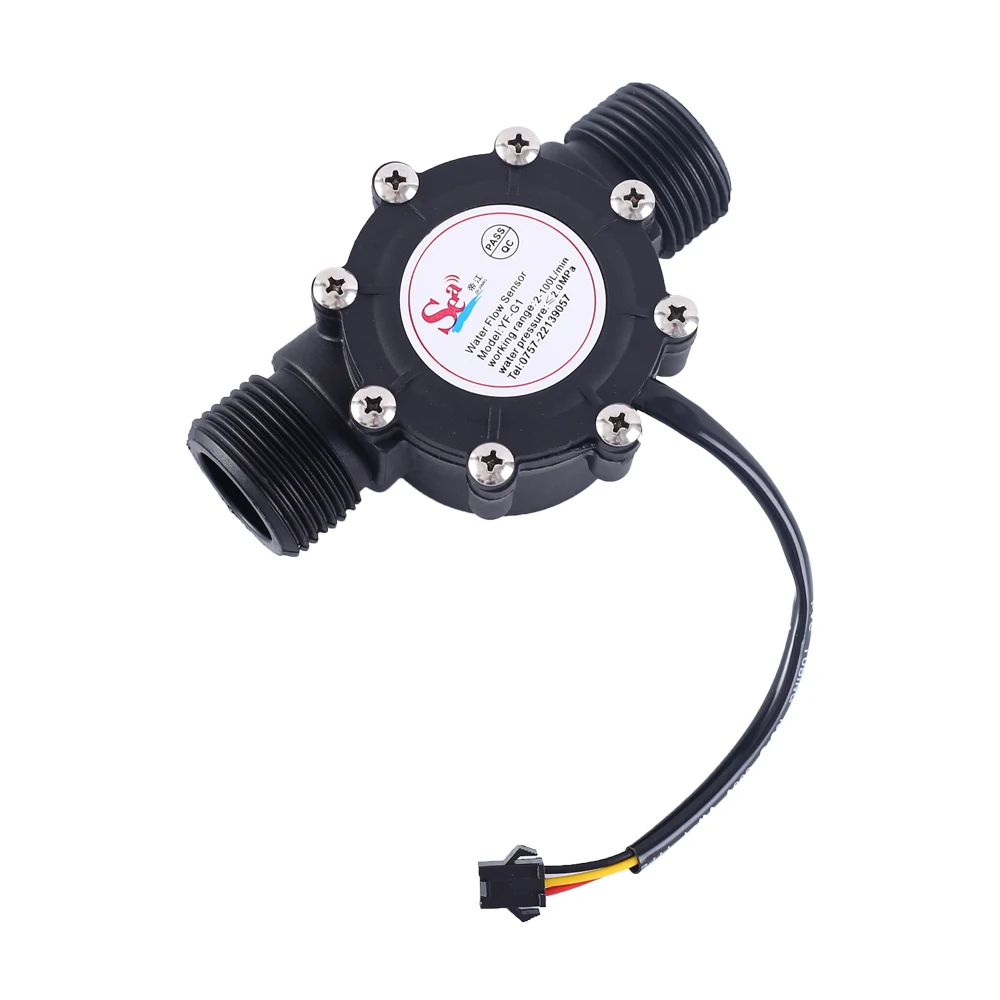

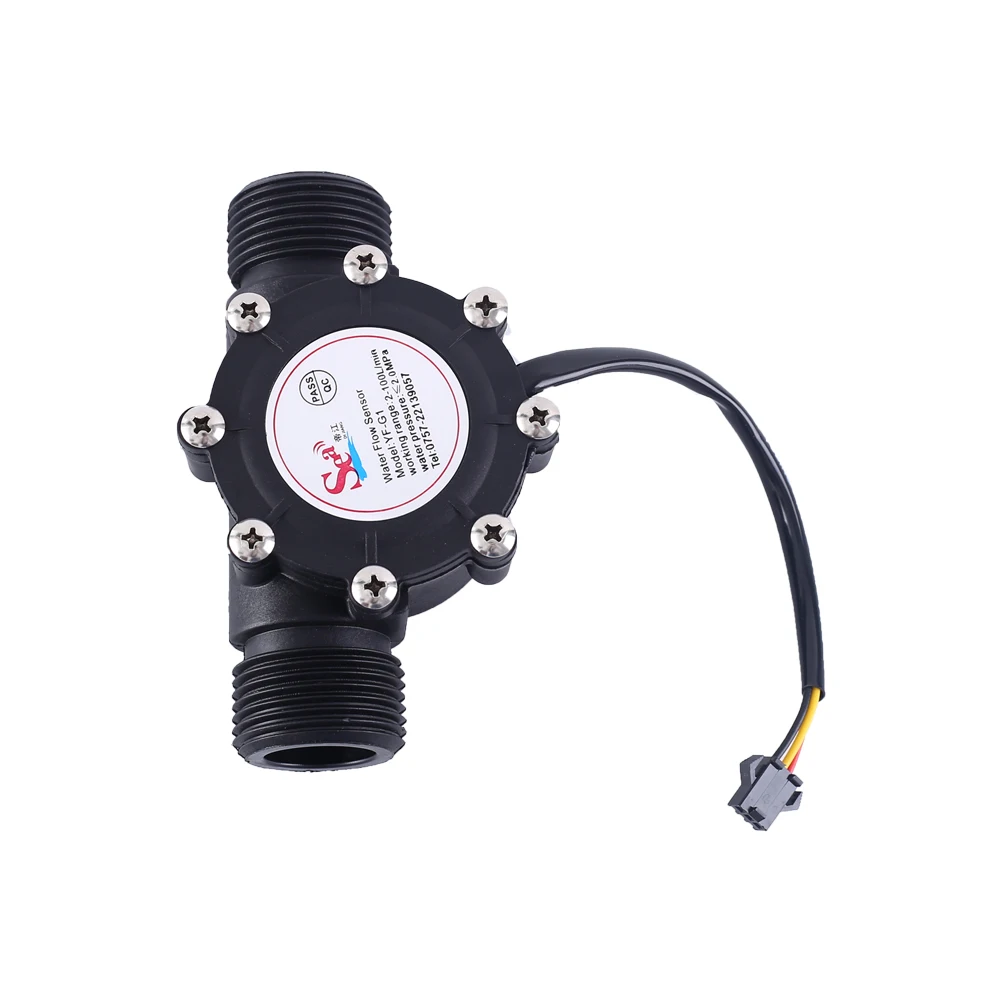

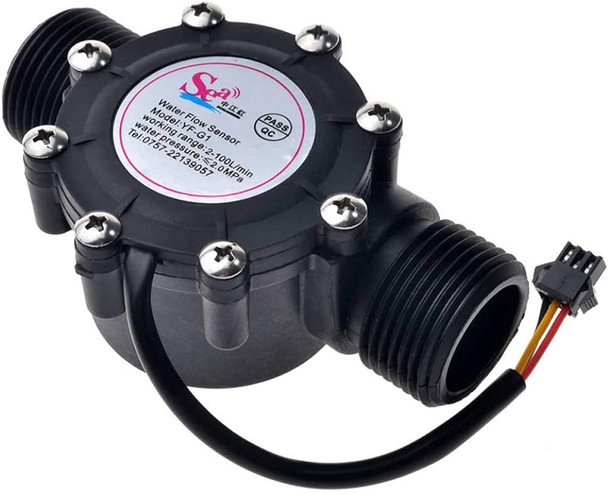

YF-G1 DN25 1'' 2-100L/min Water Flow Sensor

1.Description:
It is a flow meter for measuring water flow.

2.Feature:
1>.High precision
2>.High pressure resistance
3>.Standard size

3.Parameter:
1>.Model: YF-G1
2>.Specification: G1
3>.Work Voltage:DC 4.5V~24V
4>.Work current:20mA
5>.Flow pulse characteristic:F=1.0*Q;Q=L/min
6>.Precision:3%
7>.Output current:<10mA
8>.Flow range:2~100L/min
9>.Water pressure environment:<2MPa
10>.Work Temperature:0℃~80℃
11>.Work Humidity:5%~90%RH
12>.Size:114*70*49mm
13>.Wire length:150mm

4.Function:
1>.Calculate the flow through the sensor liquid by receive output frequency from sensor.

5.Pin definition:
1>.Red wire:VCC.It is used to connect to positive of input work voltage.
2>.Yellow wire: Signal output.
3>.Black wire:GND.It is used to connect to negative of input work voltage.

Package Includes

1pc x Water flow sensor YF-G1 Flow meter
