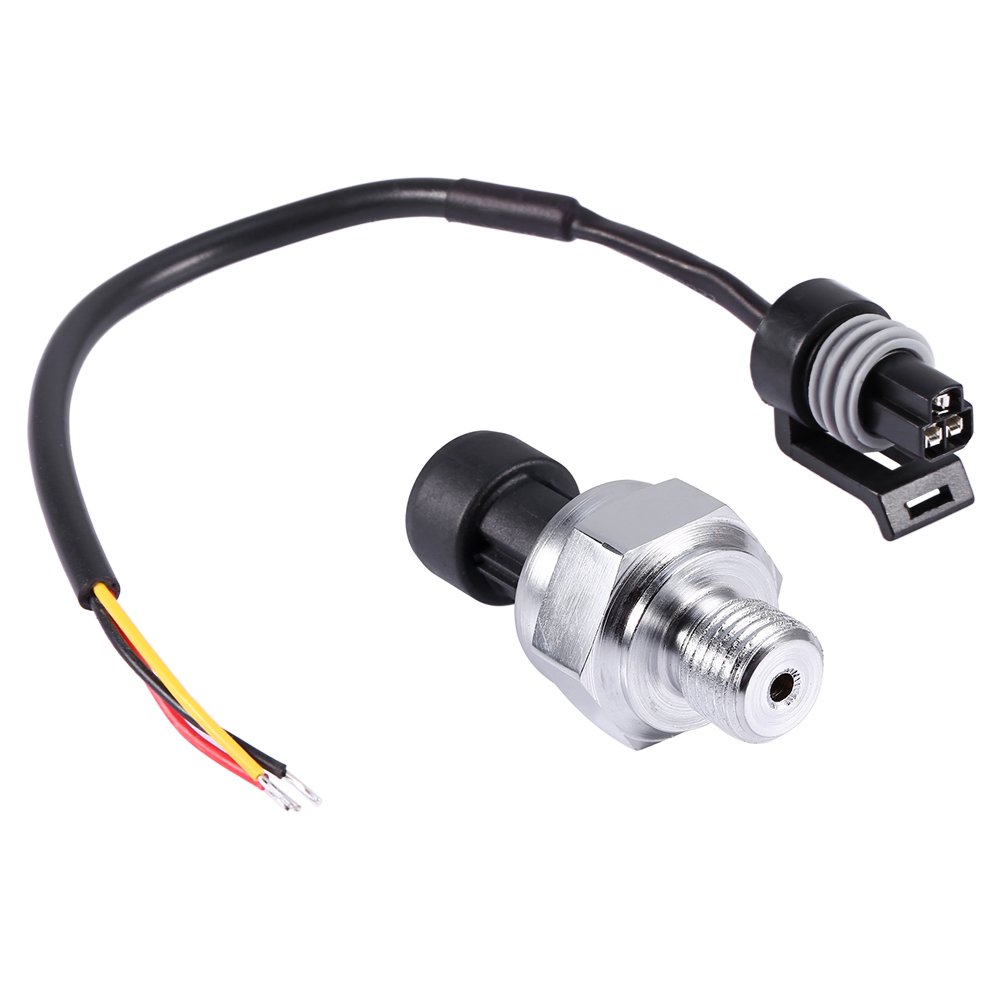

3MPa Stainless Steel Pressure Transducer Sensor

This Pressure Transducer is Part of All New Product  Line Up from Robu. in. The Pressure Transducer is made from High-Quality stainless steel material providing it with rigidity. The transducer comes with a standard thread size of G1/4 and can work in both air and water. The sensor gives a digital output in the range of 0.5V to 4.5V while operating at 5VDC. The sensor has stable performance characteristics with a long operation life.

Applications:

1. Pressure Detection in Oil Tank, Gas Tank.

Features:

1. Adopt Precision Compensation Technology and Sensitive Components, Stable and Reliable.
2. 0.1% FS Small Output Error, Including Nonlinear, Hysteresis Error, and Repeatability.
3. Light Weight and Small Volume, Easy to Install, and Operate.
4. Stainless Steel Body, it has Complete Surge Voltage Protection Function.

Technical Parameters
Working Voltage:                         12     VDC
Output Voltage:                           0.5-4.5  VDC
Working Current:                         <=10    mA
Working Pressure Range:            0-2.5  MPa
The Biggest Pressure:                 3    MPa
Destroy Pressure:                       4    MPa
Working TEMP. Range:               0-85   Celsius Degree
Storage Temperature Range:     0-100  Celsius Degree
Measuring Error:                        +_ 1.5  %FSO
Temperature Range Error:         +_3.5  %FSO
Response Time:                         <=2.0   ms
Cycle Life:                                  500,000  pcs

Package Includes:

1 x 3MPa Stainless Steel Pressure Transducer Sensor
