Description
Order Code: 52013

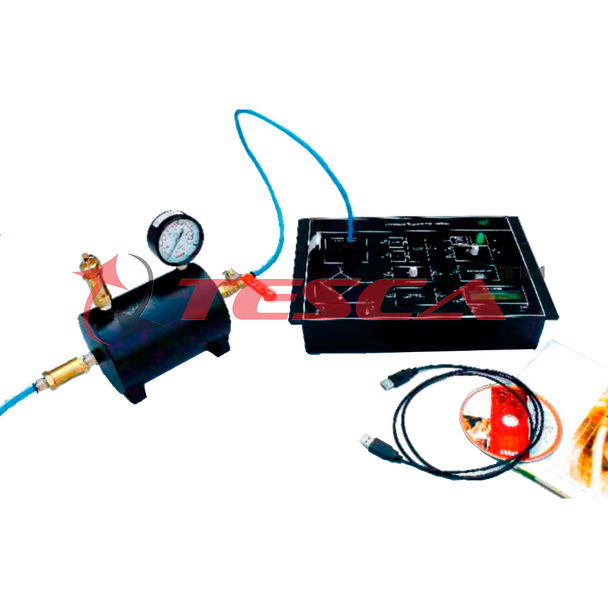

Name: Pressure Transducer Trainer
SPECIFICATION
Pressure Transducer Trainer is designed to learn concept of Pressure measurement. It helps students & industry professionals to understand operation of Pressure Transducer in detail. Built-in On/Off Controller is also provided with audio & visual indicators. It also has a PC interface through USB for more interactive understanding of transducer characteristics. User can also take a direct printout if desired. Pressure Transducer Trainer has a wide range of experiments with user friendly software.
Technical Specifications
Technical Specifications
- Pressure Transducer : 0 to 100 psi, Differential input
- Pressure Gauge : 0 to 150 psi
- Pressure Vessel : 0 to 100 psi
- Safety Valve : 0 to 100 psi
- Valves : Non-returning valve & Manual vale
- Hoses : 1.5 m
- Foot Pump : 0 to 150 psi
- V-I Specification : 0 to 5 VDC input, 4 to 20 mA output
- Buzzer Indicator : 5VDC
- LED Indicator : 5V DC
- Digital Voltmeter : 0 to 10V
Related Products
Related Products
Temperature Transducer Trainer - Order Code 52011
TESCA
KES0.00
Order Code: 52011Name: Temperature Transducer Trainer
SPECIFICATION
Self contained trainers
Each with 4 different Transducers
Stu

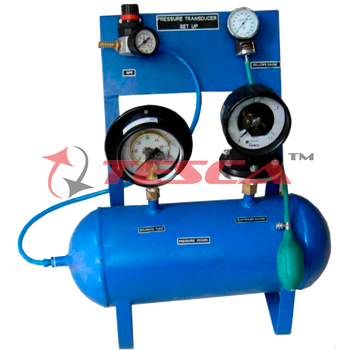

Pressure Transducer Module - Order Code 52341
