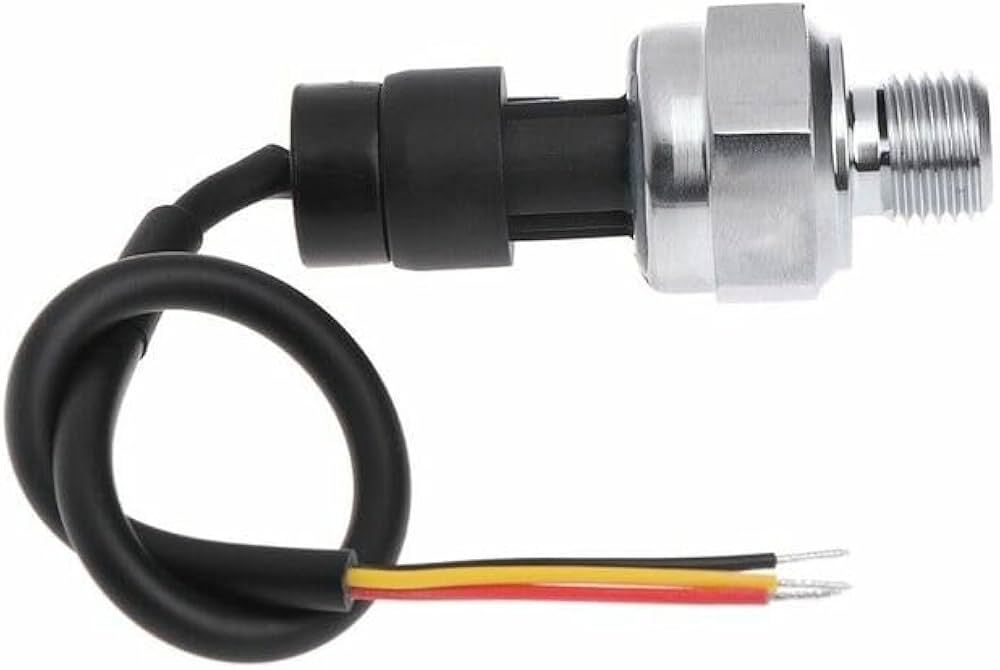

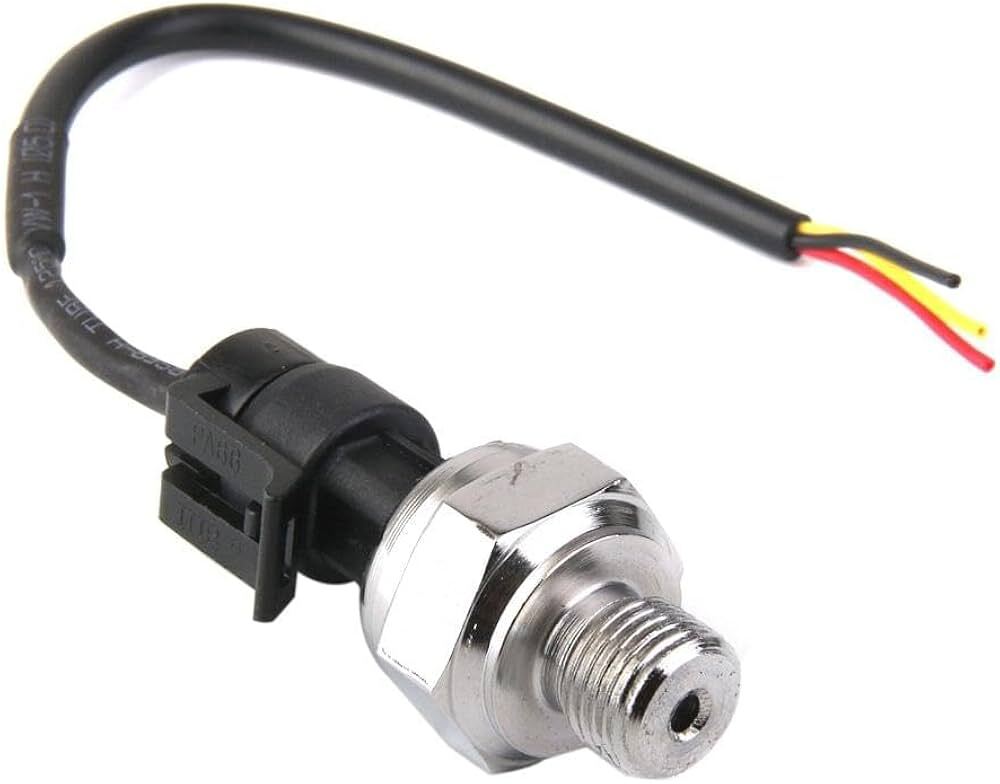

G1/4 10MPa Transducer Pressure Sensor

The 10MPa G1/4 Stainless Steel Pressure Transducer Transmitter Sensor provides high-accuracy pressure measurements for industrial applications. Featuring a durable stainless steel body and G1/4 thread, this sensor offers reliable performance for liquid and gas pressure monitoring, with a measurement range of up to 10MPa.

Specifications:

• Pressure Range: 0 to 10 MPa (Megapascals)
• Pressure Type: Gauge pressure (G), absolute pressure (A), or differential pressure (D)
• Output Signal:  0.5-4.5 V
• Power Supply: 5 V DC
• Connection Type: G1/4 (¼ inch BSP)
• Material:
  • Sensor housing: 304 or 316L stainless steel
  • Diaphragm: Stainless steel (typically 316L for better corrosion resistance)
• Accuracy: ±0.25% FS (Full Scale), ±0.5% FS, or ±1% FS depending on the model
• Temperature Compensation: 0°C to 50°C (Standard range, depending on sensor)

Electrical and Output Details:

• Response Time: < 1 ms
• Overload Pressure: Typically 1.5 times the rated pressure
• Burst Pressure: 2-3 times the rated pressure
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes

Environmental Specifications:

• Operating Temperature: -20°C to 80°C (higher temperature ranges available for some models)
• Storage Temperature: -40°C to 125°C
• Ingress Protection: IP65 or IP67, depending on the model
• Shock Resistance: 1000 g
• Vibration Resistance: 20 g (10 Hz to 2000 Hz)

Mechanical Details:

• Pressure Port Size: G1/4 (¼ inch BSP thread)
• Weight: Typically 150-250 g
• Dimensions: Vary by manufacturer, typically around 50-100 mm in length and 20-30 mm in diameter

Other Features:

• Long-term Stability: ≤0.2% FS/year
• Wetted Materials: Stainless steel (316L), and optional seals such as NBR, FKM, or PTFE for chemical compatibility
• Output Type: Can be analog or digital (if it includes I2C or RS485 communication options)

Package Includes

1pc x G1/4 10MPa Transducer Pressure Sensor
