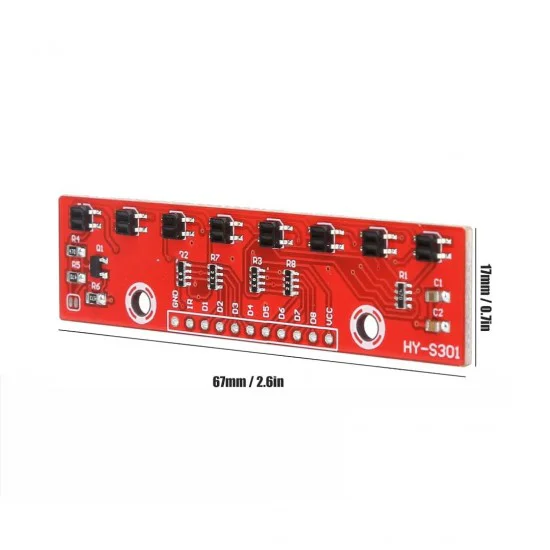

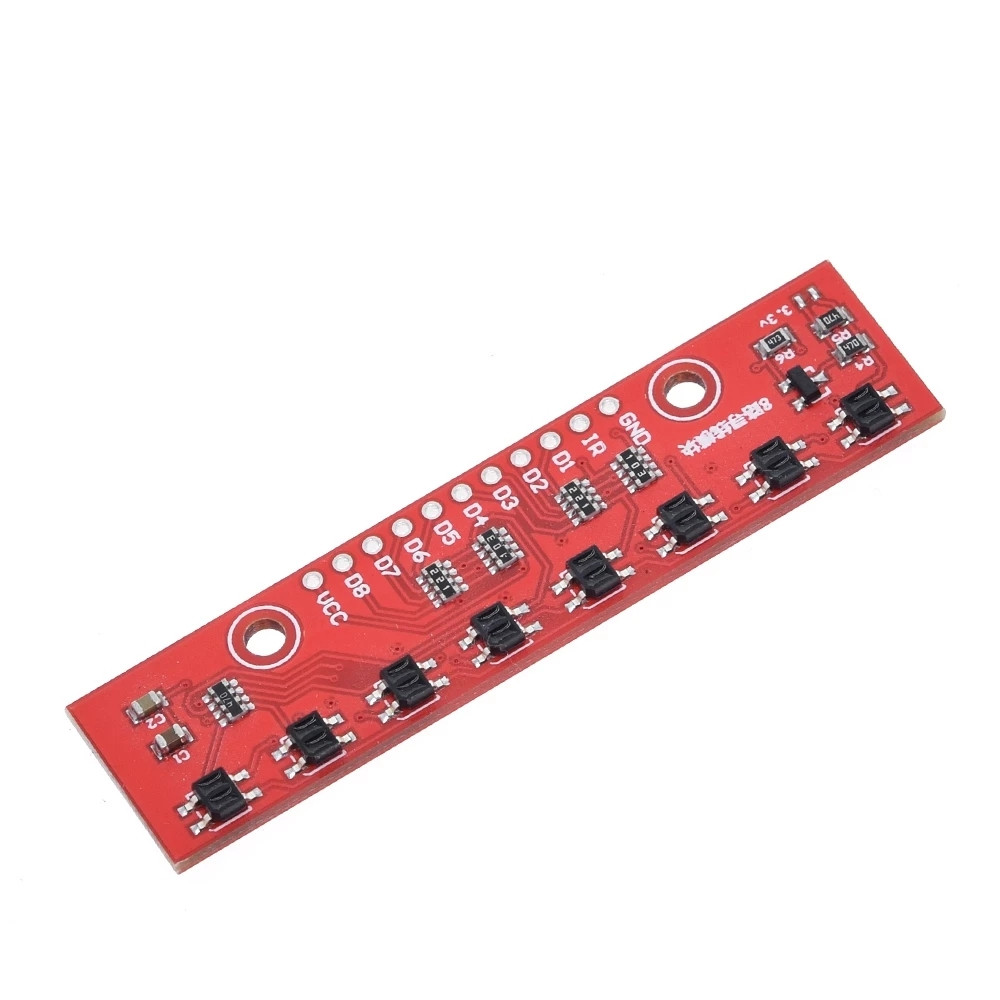

8-Channel Infrared Tracking Detection Sensor Module

(1 review) Write a Review
SKU:
PERTS21
Shipping:
Calculated at Checkout
  • 8-Channel Infrared Tracking Detection Sensor Module
  • 8-Channel Infrared Tracking Detection Sensor Module
  • 8-Channel Infrared Tracking Detection Sensor Module
KES650.00

Description

Specifications:

  • Working voltage: DC 3.3V-5V
  • Working current: try to choose more than 1A power supply
  • Working temperature: - 10oC - +50oC
  • Mounting aperture: M3 screws
  • Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
  • Small forward 25mm * 12mm * 12mm (length * width * height)

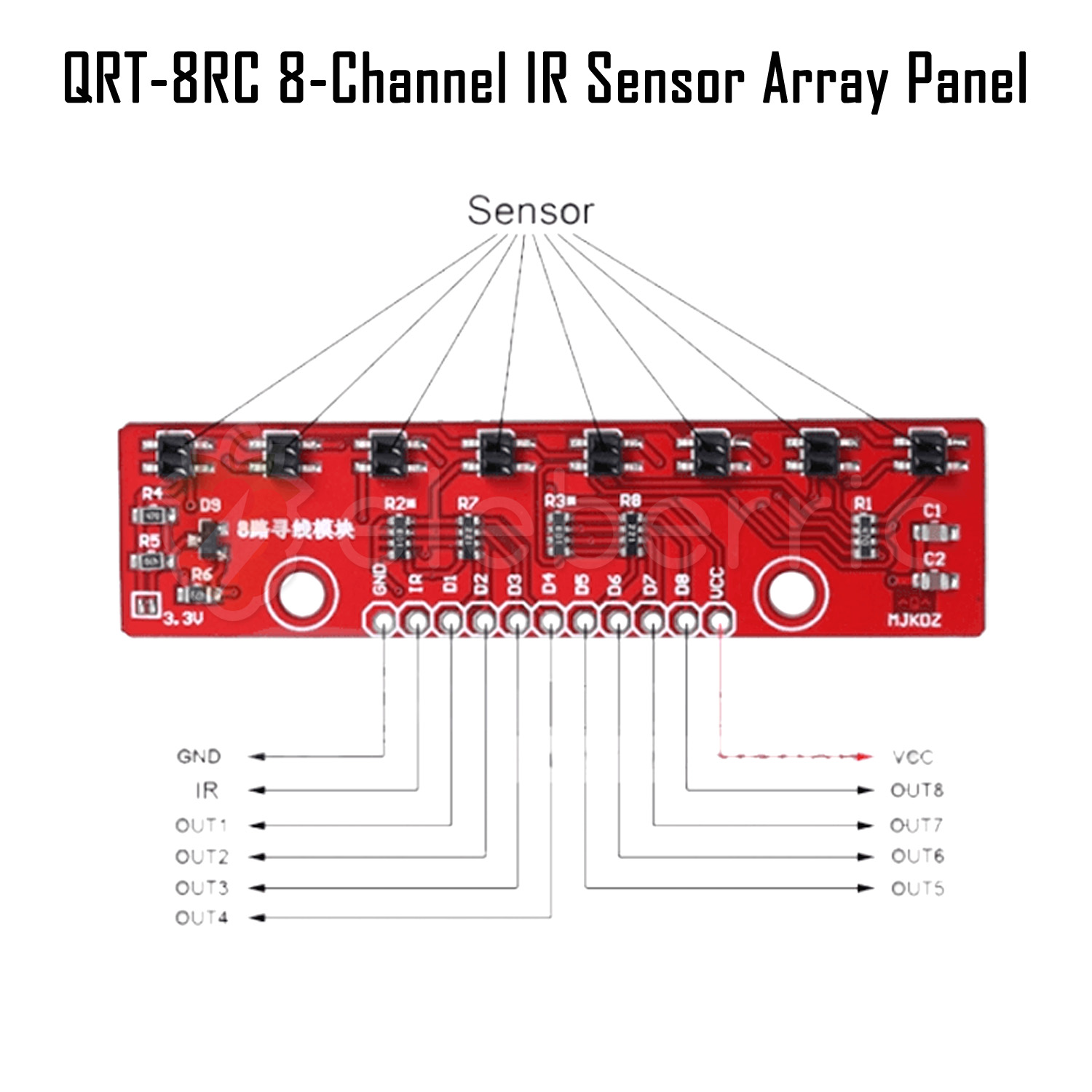

  • Output interface: 8 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
  • The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
Applications:
  • A Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing .
  • smart car to avoid the cliff , anti- fall.
  • smart car to avoid obstacles
Shipping List
1 X 8-Channel Infrared Tracking Detection Sensor

View AllClose

1 Review

  • 4

    INFRARED SENSOR MODULE

    Posted by AINEAH on 14th Mar 2024

    The sensor module is good but kindly package with afew jumper wires
