Description
Product description:
- using TCRT5000 infrared reflection sensor
- detection of reflection distance: 1mm ~ 25mm applicable
- the working voltage: 5V
- the output form: digital signals (0 and 1)
- with a fixed bolt hole, easy to install
- small board PCB size: 3.5cm x 1cm
- single weight: 4.5g
Features:
TCRT5000 sensor infrared emission diodes continue to emit infrared, when the emitted infrared rays are not reflected back or reflected back but the intensity is not big enough, the infrared receiver tube has been in the off state, then the module output is low, indicating The diode is in the extinguished state; when the object is detected within the detection range, the infrared rays are reflected back and the intensity is large enough, the infrared receiver is saturated, and the output of the module is high, indicating that the diode is lit.
Product Usage:
- power meter pulse data sampling
- fax machine paper machine paper detection
- barrier detection
- black and white line detection
Wiring:
VCC: then the power supply positive (5V)
GND: Connect the power supply negative
OUT: high / low switching signal (digital signals 0 and 1)
Package Includes

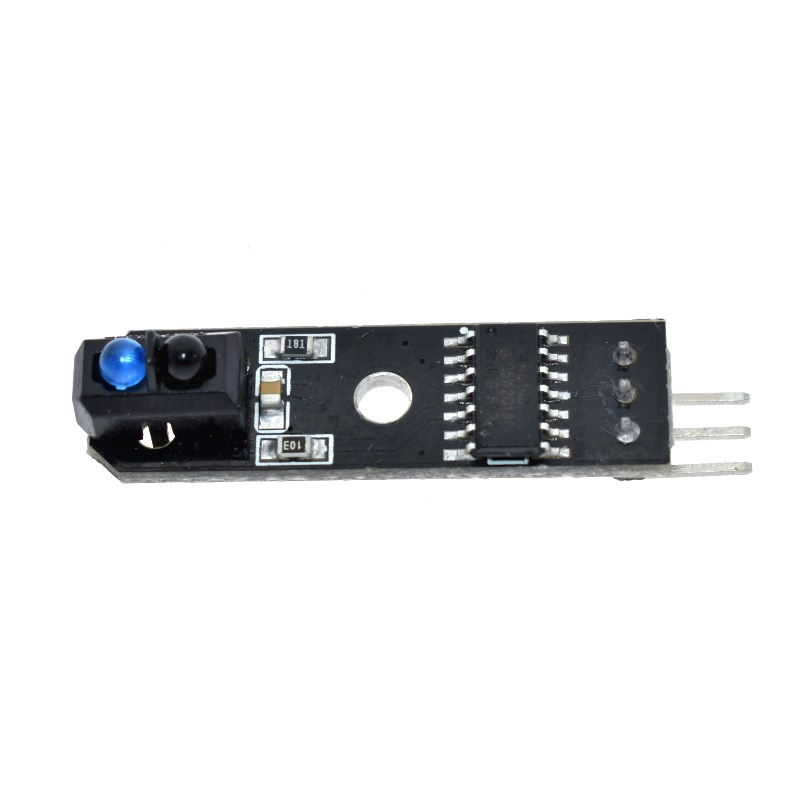

1pc x TCRT5000 Infrared Line Tracking Module
