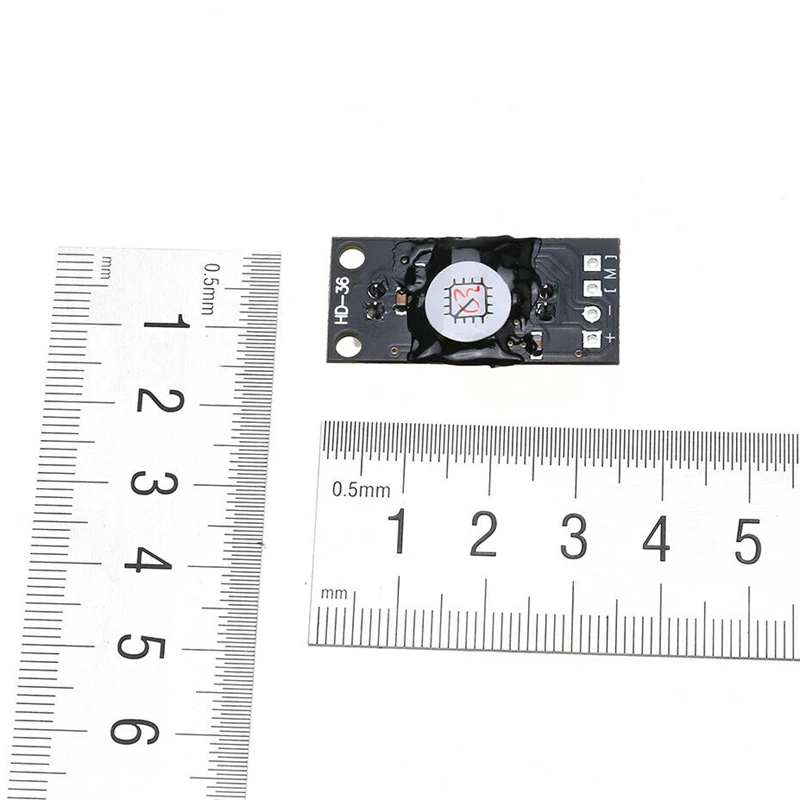

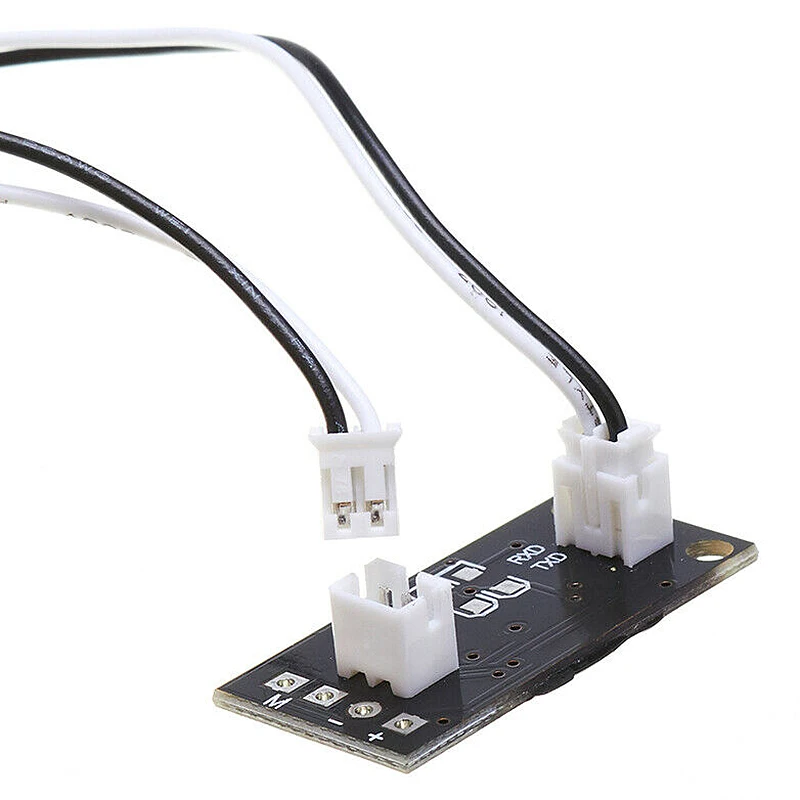

Solar Light Source Tracking Sensor Module

Name: Solar Light Source Tracking Sensor Module
Brand: diymore
SKU: PETEM15
Price: 850 KES
Availability: InStock

(No reviews yet) Write a Review

KES850.00

Quantity:

Frequently bought together:

Description

Features:

CATEGORY	SPECIFICATIONS
Product Type	Light Tracking / Light Following Motor Control Module
Function	Automatically aligns motor position toward light source
Working Principle	Uses dual light detection to find imbalance and move toward light center
Operating Voltage	5V – 5.5V DC
Operating Current	< 1.5A
Control Method	Differential light sensing with feedback motor control
Motor Type	Geared DC motor (recommended for slow speed operation)

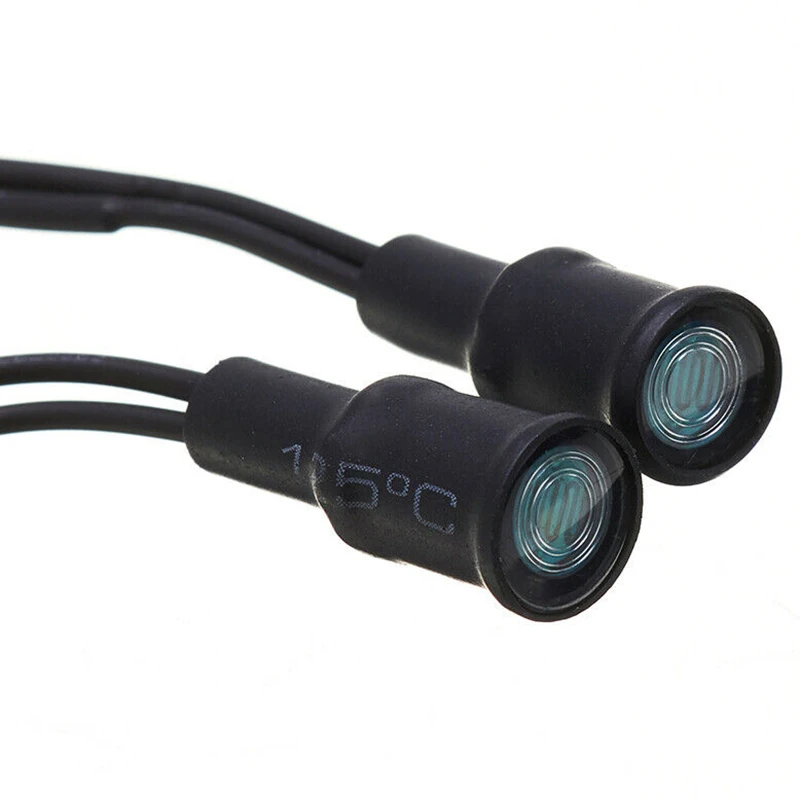

Detection Method	Light intensity comparison (shadow/imbalance detection)
Response Mechanism	Anti-shake delay logic for stable alignment
Size	35 mm × 16 mm × 12 mm
Cable Length	15 cm
Aperture Size	3 mm
Material	Plastic housing
Color	Black
Key Features	Automatic light tracking, stable alignment, simple control system
Direction Control Note	Motor polarity can be swapped if direction is reversed
Power Requirement Note	Requires stable regulated 5–5.5V supply (not solar direct input)
Applications	Solar trackers, light-following robots, educational robotics projects, automation systems
Advantage	Simple feedback-based system for automatic light alignment
