Autonics

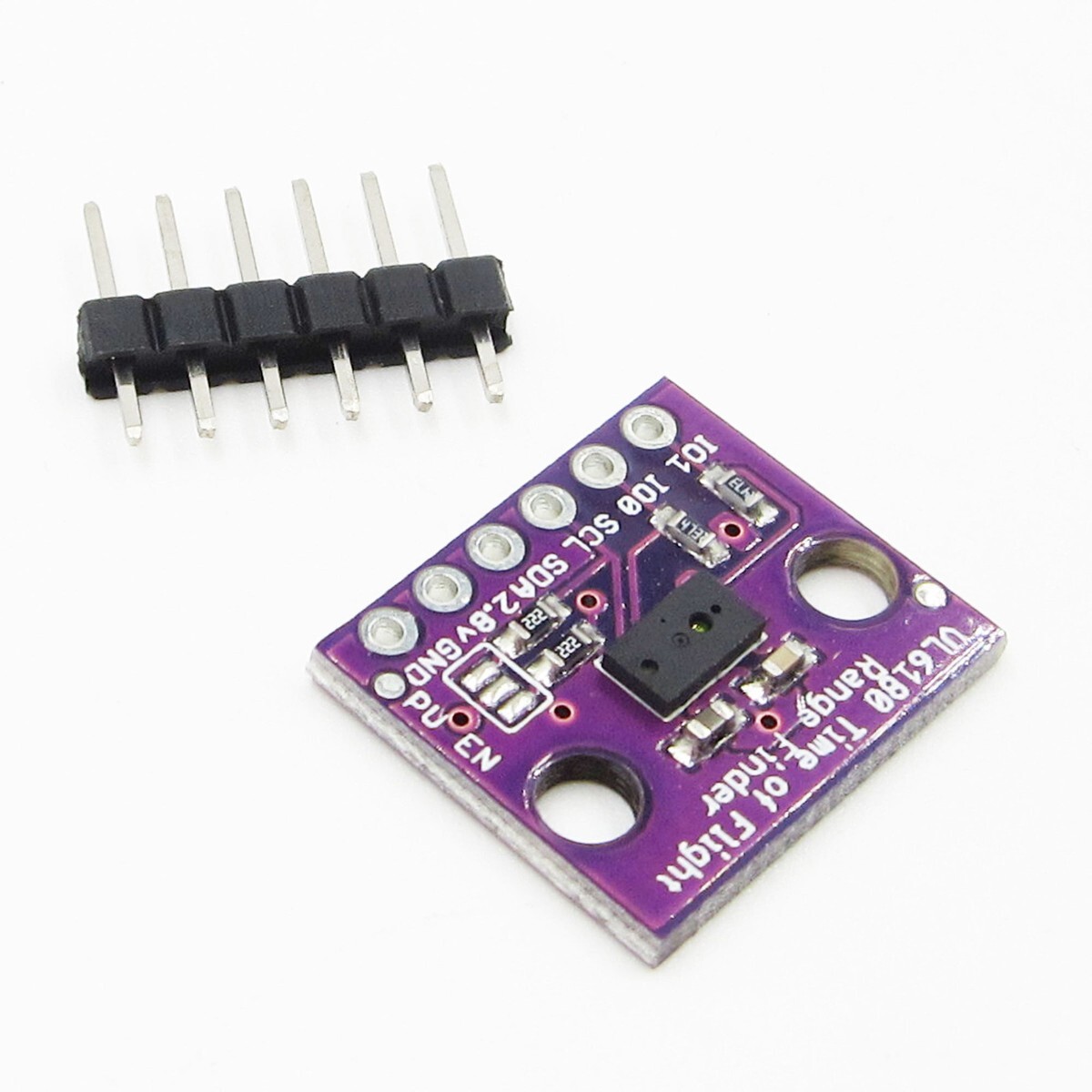

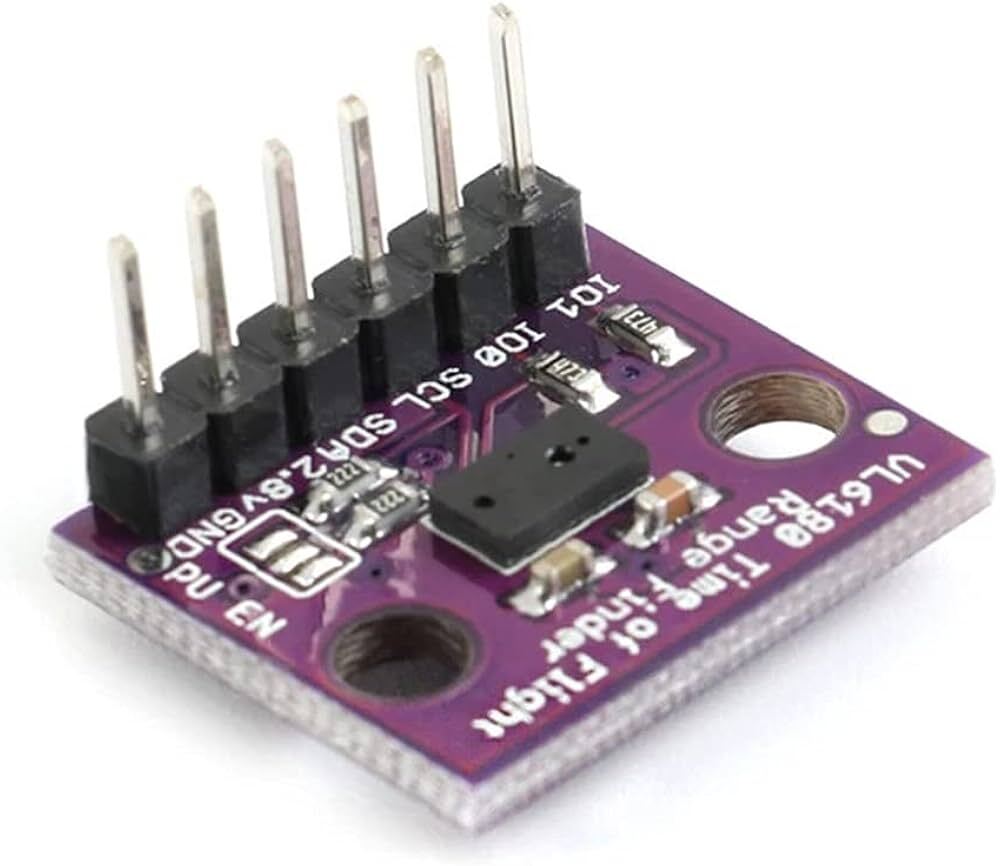

MCU-6180 VL6180 Proximity Sensor Ambient Light Sensor Gesture
(No reviews yet)
Write a Review
- SKU:
- PEDFT63
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.
Applications:
- Short distance measurement applications.
- Robot obstacle detection.
- Distance Trigger switch.
Interfacing with Arduino:
Features:
- Simultaneous measurement of distance and ambient light
- VCSEL light source
- Strong anti-interference
- 2.8V Regulator - Provides the required 2.8V for the sensor
- I2C Level Shifter - Provides logic level conversion from 2.8V to VCC
- 3-in-1 Module
- IR Emitter
- Range Sensor
- Ambient Light Sensor
- Measures absolute range up to 10cm
- Gesture Recognition
- I2C Interface
- Two Programmable GPIO
- Sharp Sensor Board Layout
Package Includes
1pc x MCU-6180 VL6180 Proximity Sensor Ambient Light Sensor Gesture
