Orange Pi

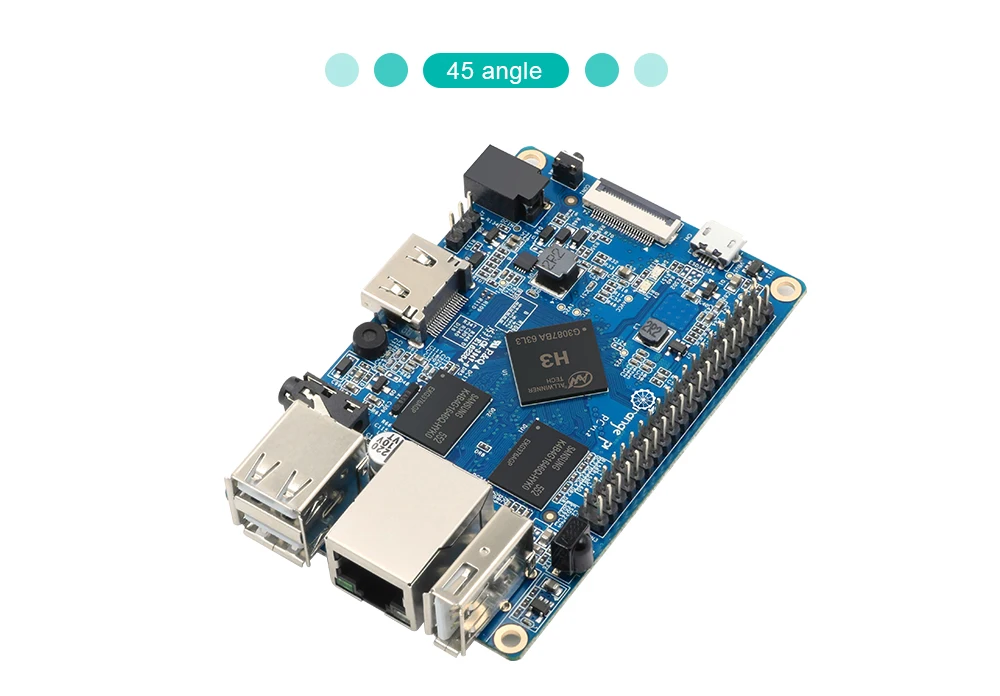

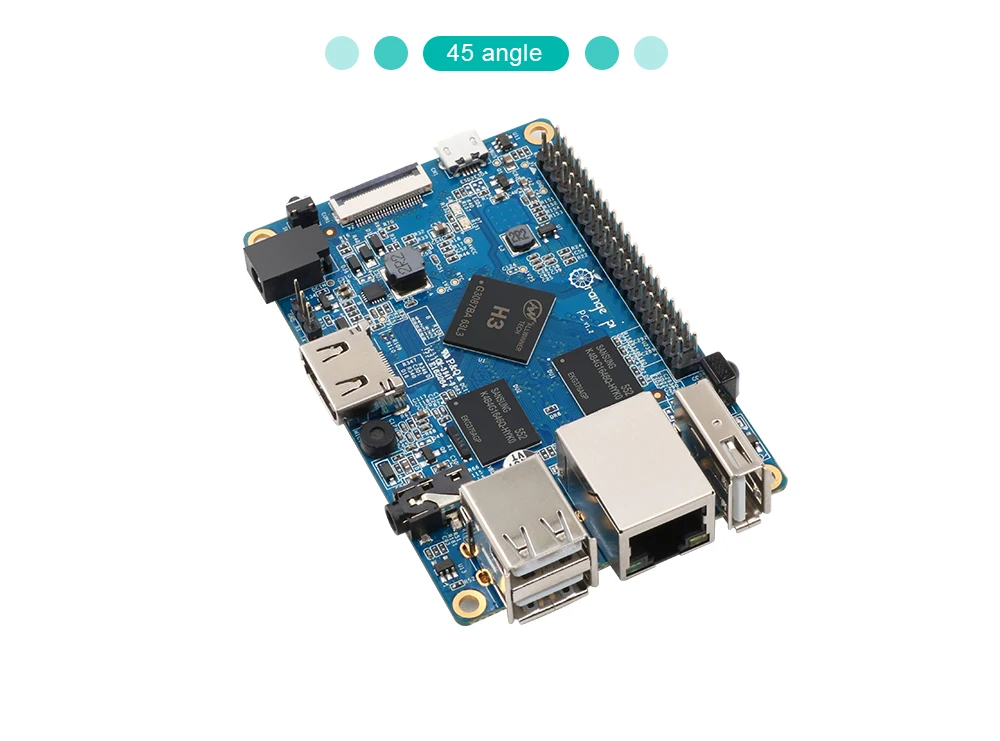

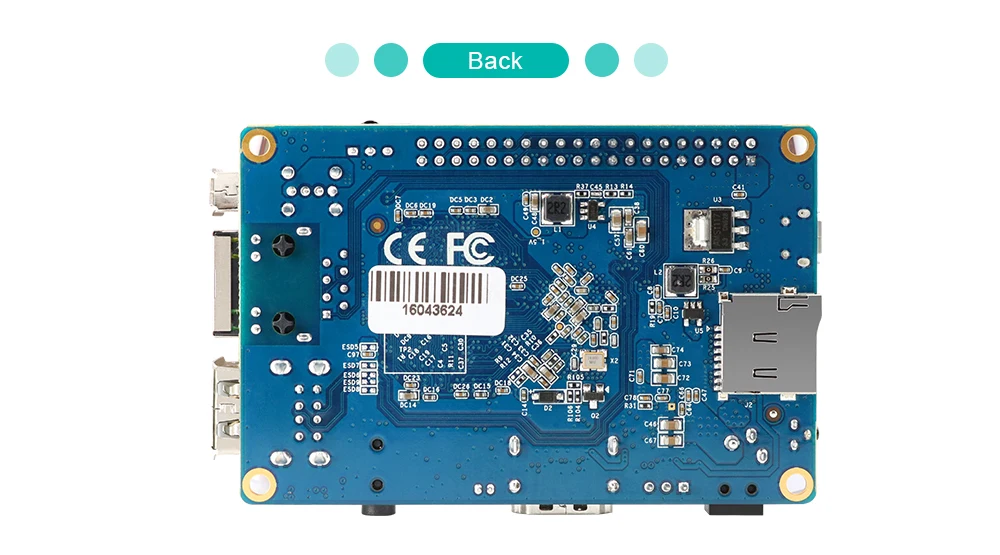

Orange Pi PC 1GB H3 Quad-Core Single Board Computer
- SKU:
- PEYUS44
- Shipping:
- Calculated at Checkout
Description
As part of their noble effort to make advanced electronics available to everyday people, Orange Pi developed excellent alternative single board computers to their Raspberry Pi counterparts. This Orange Pi PC One V1.2 is an excellent alternative smaller version of a Raspberry Pi board that gives you a focused set of features in a smaller form factor. Its 40-pin header is even compatible with Raspberry Pi, helping you seamlessly integrate Orange Pi into your projects for debugging, programming, or HAT expansion boards.
The Orange Pi takes a simple approach to make a fun useful tool that lets you take control of the world around you, offering an array of ports, an H3 quad-core and 1GB DDR3 SDRAM. Let’s have a deeper look at some of the Orange Pi One PC V1.2’s best features:
- H3 Quad-core CPU – Power up your projects with the mighty H3 Quad-core Cortex-A7 CPU, capable of handling everything from multimedia streaming to data crunching. It's the brain your creations deserve.
- 1GB SDRAM – With 1GB of DDR3 RAM (shared with the GPU), multitasking is a breeze. You can smoothly run multiple applications without breaking a sweat. And if you’re wanting more memory, don’t fear. A TF card with 32GB data lets you keep media and files galore.
- Ethernet Connectivity – The internet is waiting for your innovative IoT projects with the included ethernet port on the Orange Pi PC V1.2.
- HDMI & USB Port City – Video, audio and 3x USB ports are available on the Orange Pi. Connect a plethora of peripherals, from keyboards to flash drives. The CSI input connector supports various camera sensors, offering video capture solutions up to 1080p@30fps.
- Multiple Operating Systems and 40pin Header – integration with multiple operating systems and other Raspberry Pi gizmos makes the Orange Pi One so versatile. Choose from Android, Ubuntu, or Debian images to tailor your projects to your liking.
Craft your own smart home hub, build a media centre for epic movie nights, or create a DIY server that stores your digital treasures. Dive into IoT wonders, educational adventures, and robotics galore. The Orange Pi One PC V1.2 is your ticket to tech stardom, whether you're a coding guru or a curious beginner.
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| CPU | H3 Quad-core Cortex-A7, H.265/HEVC 4K support |
| GPU | Mali400MP2 GPU @600 MHz, supports OpenGL ES 2.0 |
| Memory (SDRAM) | 1 GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (max 64 GB) / MMC card slot |
| Network | 10/100 Ethernet RJ45 |
| Video Input | CSI camera input; supports 8-bit YUV422 CMOS, CCIR656 NTSC/PAL, SM pixel camera, video capture up to 1080p @ 30 fps |
| Audio Input | Microphone (MIC) |
| Video Output | HDMI (supports HDCP, CEC, 30 functions), integrated CVBS, simultaneous HDMI & CVBS output |
| Audio Output | 3.5 mm jack and HDMI |
| USB Ports | 3 × USB 2.0 HOST, 1 × USB 2.0 OTG |
| Buttons / Keys | Power button, IR input (POW) |
| Low-level Peripherals | 40-pin header for GPIO |
| GPIO Pins | UART, Ground |
| LEDs | Power LED & Status LED |
| Supported OS | Android, Ubuntu, Debian |
| Power Source | DC input (USB OTG does not supply power) |
| Product Size | 85 × 55 mm |
| Weight | 38 g |

Package Includes:
1 x Orange Pi PC 1GB H3 Quad-Core Single Board Computer
