Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | Mini Infrared Remote Control Receiver Module |
| Sensor Type | IR receiver (PIN photodiode + preamplifier integrated) |
| Operating Principle | Detects modulated infrared signals from remote controls and converts them into electrical signals |
| Supply Voltage | 5 V DC |
| Power Consumption | 0.4 – 1.0 mA |
| Minimum Irradiance Sensitivity | 0.35 mW/m² (typical) |
| Detection Angle | ~90° |
| Operating Temperature Range | -25 °C to +85 °C |
| Package Type | Epoxy resin package with built-in IR filter |
| Internal Components | PIN photodiode + preamplifier on lead frame |
| Output Function | Demodulated digital signal output (IR remote decoding signal) |
| Key Features | High sensitivity, low power consumption, compact size, integrated filtering for ambient light rejection |
| Applications | TV remote systems, home appliances, robotics IR control, automation systems, embedded electronics projects |
Package Includes:

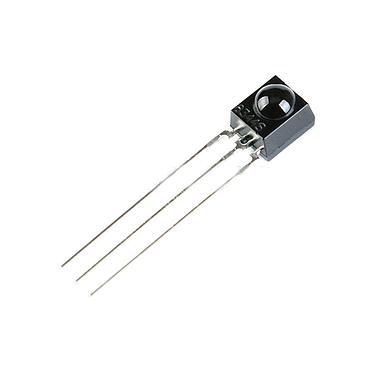

1 x HS0038BD Integrated Infrared Receiver SIP3
