74LS Family Counters & Shift Registers
Texas Instruments range of Counters and Shift Registers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
Specification
| Attribute | Value |
|---|---|
| Package Type | PDIP |
| Logic Function | Shift Register |
| Number of Stages | 8 |
| Logic Family | LS |
| Mounting Type | Through Hole |
| Operation Mode | Serial to Parallel |
| Number of Elements | 1 |
| Pin Count | 14 |
| Minimum Operating Supply Voltage | 4.75 V |
| Maximum Operating Supply Voltage | 5.25 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Length | 19.3mm |
| Width | 6.35mm |
| Reset Type | Asynchronous |
| Maximum Operating Temperature | +70 °C |
| Height | 4.57mm |
| Direction Type | Uni-Directional |
| Minimum Operating Temperature | 0 °C |
| Triggering Type | Positive Edge |
Package Include

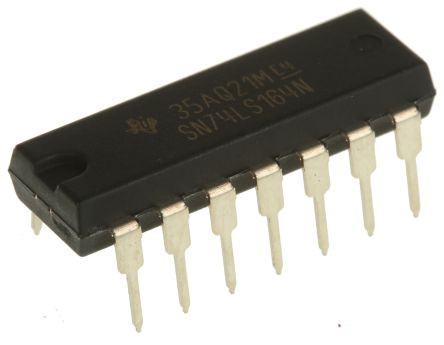

1pc x SN74LS164N 8-bit SIPO shift register IC
