Description
Product Details
74HC Family Counters & Shift Registers
A range of 74HC Family CMOS Logic Counters and Shift Registers from NXP. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Specification
| Attribute | Value |
|---|---|
| Package Type | SO |
| Number of Stages | 8 |
| Logic Family | 74HC |
| Mounting Type | Surface Mount |
| Operation Mode | Serial to Serial/Parallel |
| Number of Elements | 1 |
| Pin Count | 16 |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Supply Voltage | 6 V |
| Dimensions | 10 x 4 x 1.45mm |
| Length | 10mm |
| Width | 4mm |
| Maximum Operating Temperature | +125 °C |
| Height | 1.45mm |
| Triggering Type | Positive Edge |
| Direction Type | Uni-Directional |
| Minimum Operating Temperature | -40 °C |
| Preset Type | Asynchronous |
| Reset Type | Asynchronous |
Technical data sheets
Package Includes

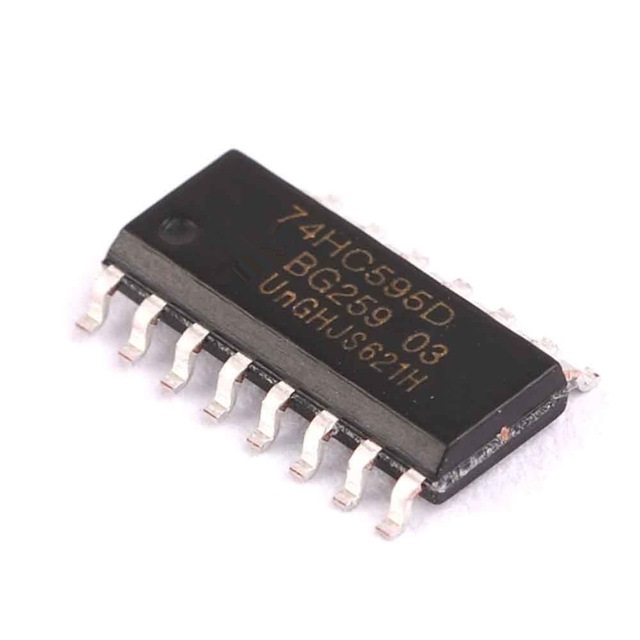

1pc x 74HC595D 8-stage Shift Register SMD IC
