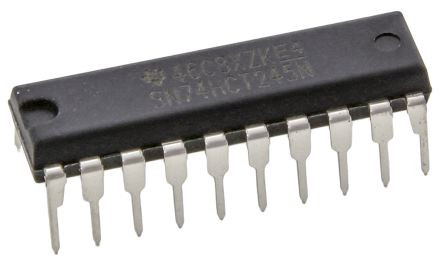

74HCT Family Bus Transceivers
Texas Instruments range of Bus Transceivers from the 74HCT Family of CMOS Logic ICs. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
Specification
| Attribute | Value |
|---|---|
| Logic Family | HCT |
| Logic Function | Bus Transceiver |
| Number of Elements per Chip | 1 |
| Number of Channels per Chip | 8 |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 20 |
| Input Level | TTL |
| Output Level | CMOS |
| Maximum High Level Output Current | -6mA |
| Maximum Low Level Output Current | 6mA |
| Maximum Propagation Delay Time @ Maximum CL | 30 ns @ 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Dimensions | 24.33 x 6.35 x 4.57mm |
| Propagation Delay Test Condition | 150pF |
| Length | 24.33mm |
| Width | 6.35mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 4.57mm |
