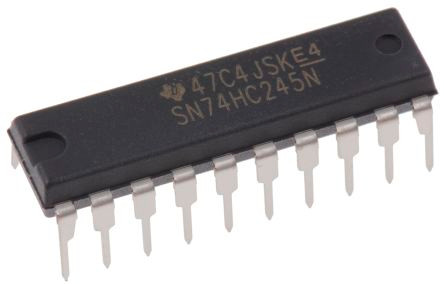

SN74HC245N, Bus Transceiver Non Inverting IC
(No reviews yet)
Write a Review
- SKU:
- PERTY71
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Specification
| Attribute | Value |
|---|---|
| Logic Family | HC |
| Logic Function | Bus Transceiver |
| Number of Elements per Chip | 1 |
| Number of Channels per Chip | 8 |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 20 |
| Input Level | CMOS |
| Output Level | CMOS |
| Maximum High Level Output Current | -7.8mA |
| Maximum Low Level Output Current | 7.8mA |
| Maximum Propagation Delay Time @ Maximum CL | 135 ns @ 2 V |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 150pF |
| Minimum Operating Temperature | -40 °C |
| Width | 6.35mm |
| Minimum Operating Supply Voltage | 2 V |
| Height | 4.57mm |
| Maximum Operating Supply Voltage | 6 V |
| Dimensions | 24.33 x 6.35 x 4.57mm |
| Length | 24.33mm |
