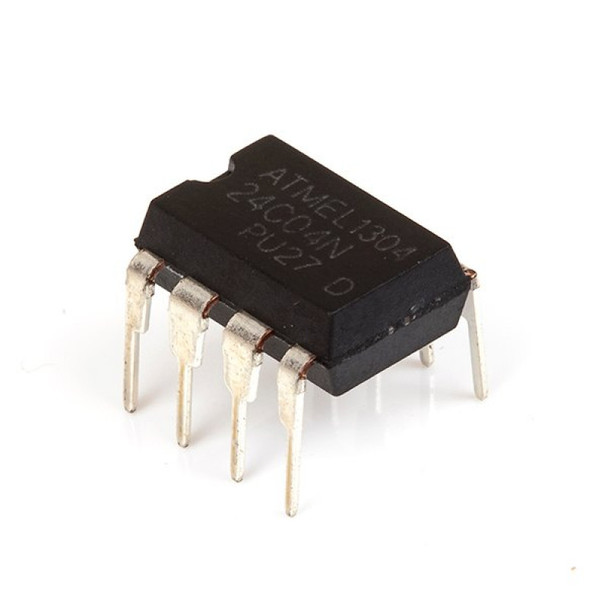

24C64 DIP-8 EEPROM memory IC

The M24C64 is a 64-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 8 K × 8 bits.

Over an ambient temperature range of -40 °C / +85 °C, the M24C64-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24C64-F and M24C64-DF can operate with a supply voltage from 1.7 V to 5.5 V ( the M24C64-F can also operate down to 1.6 V, under some restricting conditions).

The M24C64-D offers an additional page, named the Identification Page (32 byte). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.

Key Features

• Compatible with all I2C bus modes:
  • 1 MHz
  • 400 kHz
  • 100 kHz
• Memory array:
  • 64 Kbit (8 Kbyte) of EEPROM
  • Page size: 32 byte
  • Additional Write lockable page (M24C64-D order codes)
• Single supply voltage:
  • 1.7 V to 5.5 V over –40 °C / +85 °C
  • 1.6 V to 5.5 V over 0 °C / +85 °C
• Write:
  • Byte Write within 5 ms
  • Page Write within 5 ms
• Random and sequential Read modes
• Write protect of the whole memory array
• Enhanced ESD/Latch-Up protection
• More than 4 million Write cycles
• More than 200-years data retention
• Packages
  • PDIP8 ECOPACK2®
  • SO8 ECOPACK2®
  • TSSOP8 ECOPACK2®
  • UFDFPN ECOPACK2®
  • WLCSP ECOPACK2®
  • Unsawn wafer (each die is tested)
