Logic ICs

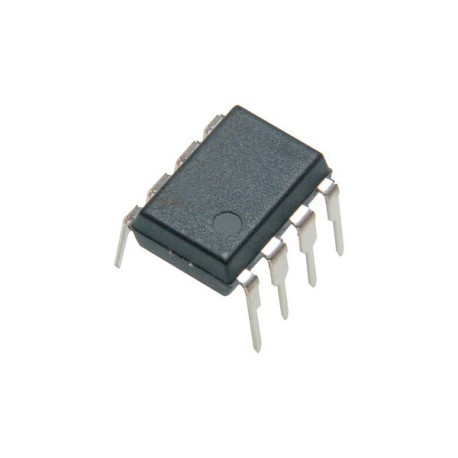

24C08 Serial CMOS EEPROM IC

(No reviews yet) Write a Review
SKU:
PEDIP48
Shipping:
Calculated at Checkout
KES50.00
Frequently bought together:

Description

Features

arrowLow Voltage and Standard-Voltage Operation

arrow2-wire Serial Interface

arrowSchmitt Trigger, Filtered Inputs for Noise Suppression

arrowBi-directional Data Transfer Protocol

arrow100kHz and 400kHz Compatibility

arrowWrite Protect Pin for Hardware Data Protection

arrow8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes

arrowPartial Page Writes are Allowed

arrowSelf-timed Write Cycle (10mS max)

arrowHigh-Reliability, 1 Million Write Cycles, 100 Year Data Retention
Pin Layout
Atmel 24C08 Pin Layout
Dimensional Drawing
24C08 IC Dimensional Drawing
24C08 IC Dimensional Drawing



Pin Description
Pin NumberDescription
1 A0 - Address Input
2 A1 - Address Input
3 A2 - Address Input
4 GND - Ground
5 SDA - Serial Data
6 SCL - Serial Clock Input
7 WP - Write Protect
8 Vcc - Positive Power Supply
Technical Data

Data Sheet

Atmel - Data Sheet for AT24C08 Datasheet

Application Notes

Atmel - Interfacing AT24CXX Serial EEPROMs with AT89CX051 MCU Datasheet
