Description
Description
Lithium Iron Phosphate (LiFePO4, LFE) is kind of Li-Ion rechargeable battery for high power applications, such as EV car , Power Tool and RC hobby. LiFePO4 cells feature with high discharging current, non explosive, long cycle life, but its energy density is lower than normal Li-Ion cell (Li-Co) (higher NiMH cell)
Feature:
- Single cell battery over-discharge protect voltage : 2.27-2.43 V
- Single cell battery over-discharge protect recover voltage : 2.45-2.65 V
- Overcharge protect Current : 100A
- Over-discharge protect Current : 100A
- Over-discharge protect delay : 0.5-1.5S
- Temperature protect : Yes
- Disconnect protect : Yes
- Shortage protect : Yes
- Shortage delay : 100-600 uS
- Shortage protect recover : Disconnected
- Charging Current : 60A
- Current Balance : Yes
- Ampere balance (Current) : 50MA
- Voltage balance accuracy : 3.355-3.455 V
- Overcharge protect delay : 1.5-2.5S
Package Includes

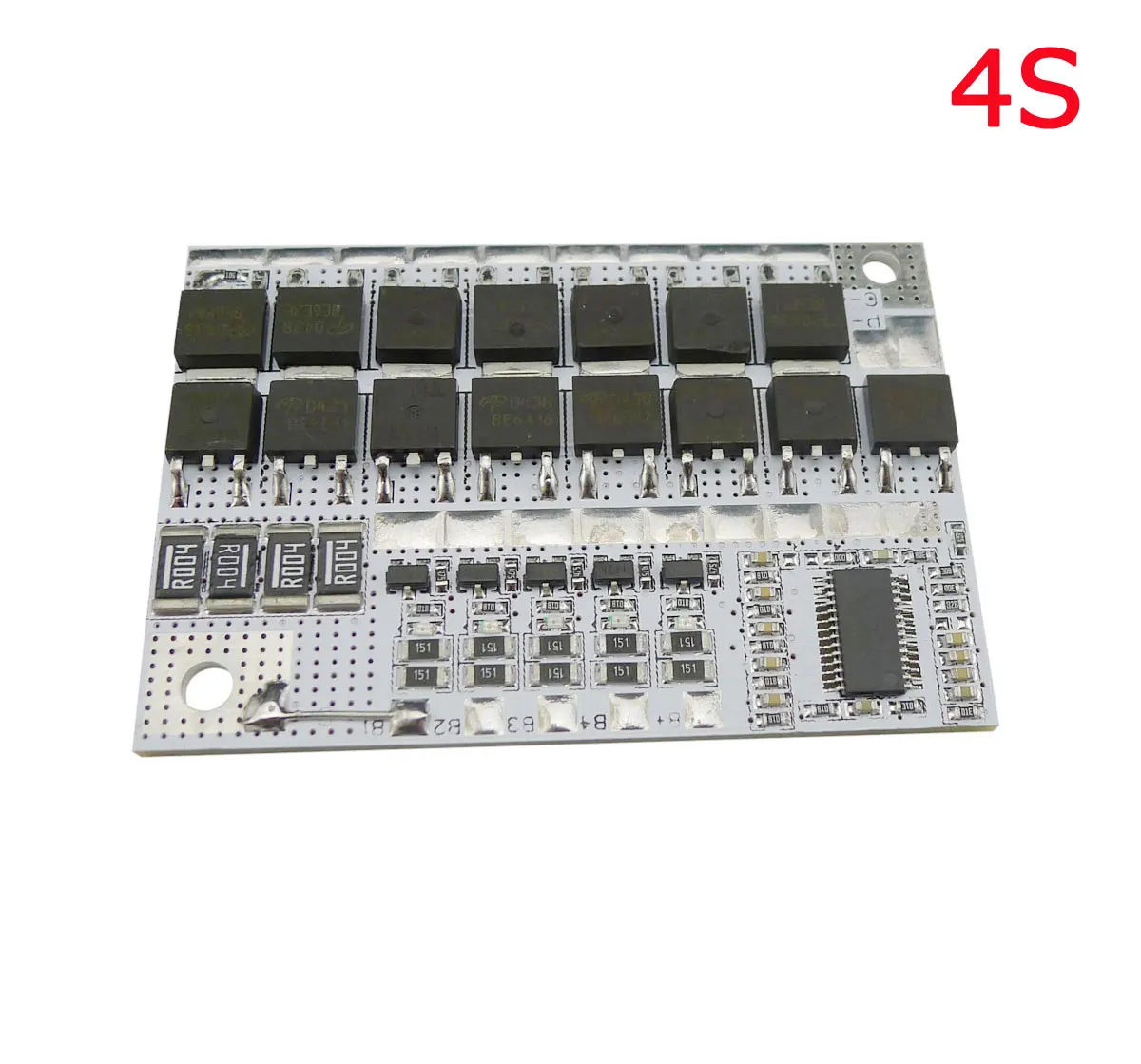

1PCS 14.4V 100A 4S BMS Li-ion 18650 protection board1PCS 14.4V 100A 4S BMS Li-ion 18650 protection board
