Description
Description
Lithium Iron Phosphate (LiFePO4, LFE) is kind of Li-Ion rechargeable battery for high power applications, such as EV car , Power Tool and RC hobby. LiFePO4 cells feature with high discharging current, non explosive, long cycle life, but its energy density is lower than normal Li-Ion cell (Li-Co) (higher NiMH cell)
Feature:
FOR Lithium POLYMER protection Board(3.2 - 3.7V)
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge protect recover voltage : 4.14-4.24V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Overcharge protect Current : 100A
Over-discharge protect Current : 100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover : YES
Charging Current : 60A
Current Balance : Yes
Ampere balance (Current) : 60MA
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge protect recover voltage : 4.14-4.24V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Overcharge protect Current : 100A
Over-discharge protect Current : 100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover : YES
Charging Current : 60A
Current Balance : Yes
Ampere balance (Current) : 60MA
Package Includes

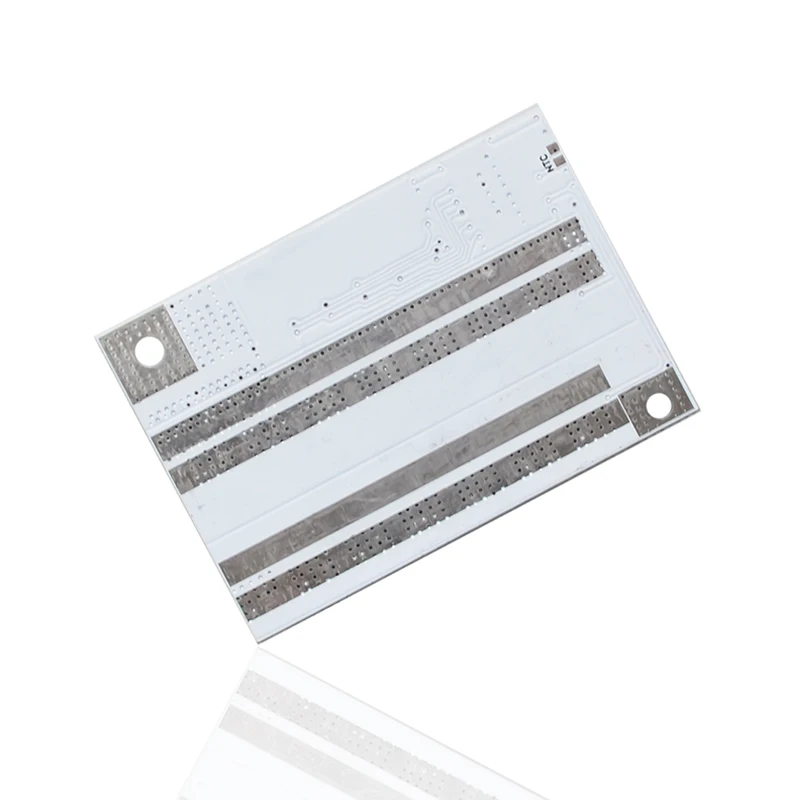

1 X100A BMS 3S LiFePO4 Battery Protection Circuit Module
