Ai-Thinker

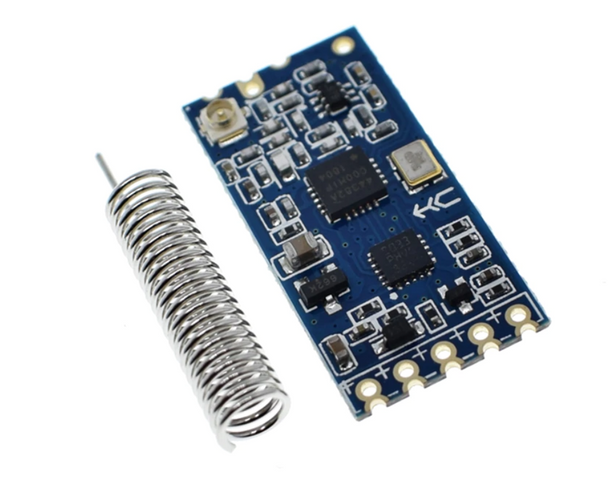

433Mhz HC-12 Wireless Serial RF Module (1000m)

(No reviews yet) Write a Review
SKU:
PERAD54
Shipping:
Calculated at Checkout
$8.09

SOLD OUT

Frequently bought together:

Description

Features:
CATEGORY SPECIFICATIONS
Product Type Serial FSK Wireless Transceiver Module
Technology Transparent FSK Transceiver
Operating Frequency 434 MHz
Frequency Range 433.4 MHz – 473.0 MHz
Communication Channels Up to 100 Channels
Interface UART Serial Interface
Transmission Mode Serial Transparent Transmission
Output Power Up to 100 mW (Adjustable)
Communication Distance About 600 m (Default Open Test)
  Up to 1000 m Maximum (Adjustable)
Air Baud Rate 5000 bps
UART Baud Rate Adjustable
Frequency Deviation Adjustable
Receiving Bandwidth Adjustable
Data Rate Adjustable
Supply Voltage 3.2V – 5.5V
Current Consumption Idle Current: 80 µA
  3.5 mA
  22 mA
  Default Idle Current: 16 mA
Module Size 27.8 mm × 14.4 mm × 4 mm
Operating Modes Multiple Serial Transparent Transmission Modes
Default Operating Mode FU3
Default Baud Rate 9600 bps
Default Communication Channel CH001 (433.4 MHz)
Software Features Command-based Configuration
  Parameters Saved after Power Failure
  Supports Software Upgrade
Additional Features High Output Power
  High Sensitivity
  Long Transmission Distance
  High Communication Data Rate
  Automatic Communication Setup
  Automatic Data Receiving and Transmission Control
  Unlimited Serial Data Transmission Length
Usage Requirement Requires Two or More Modules for Communication
Power Recommendation Recommended to use 1N4007 Diode when Supply Voltage exceeds 4.5V
Applications Wireless Data Transmission
  Remote Communication Systems
  Industrial Wireless Control
  Embedded Wireless Projects
  UART-based Wireless Communication

PS: HC-11 can not be connected to communicate with the HC-12, they work independently, in pairs.

Package Includes:

1 x 433Mhz HC-12 Wireless Serial RF Module
